DtGeodeticRegion Class Reference

DtGeodeticRegion. More...

Inheritance diagram for DtGeodeticRegion:

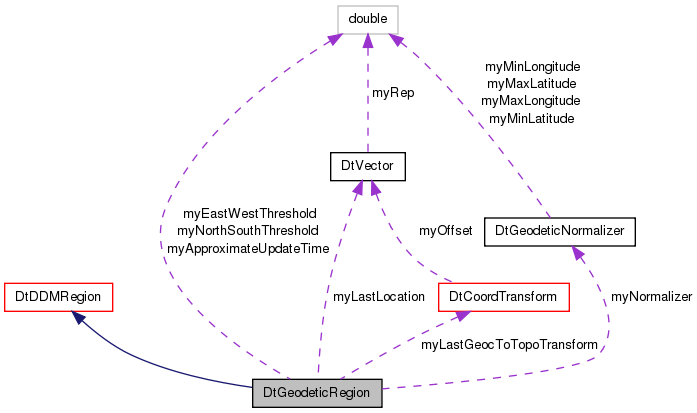

Collaboration diagram for DtGeodeticRegion:

List of all members.

Public Member Functions
	DtGeodeticRegion (DtExerciseConn *exConn)
	Constructor that uses default space and dimensions.
	DtGeodeticRegion (DtExerciseConn *exConn, const std::vector< DtString > &dimensionNamesVector)
	Constructor.
	DtGeodeticRegion (DtExerciseConn *conn, const std::vector< DtString > &dimensionNamesVector, const DtGeodeticCoord &ddmPlayboxLowerBound, const DtGeodeticCoord &ddmPlayboxUpperBound)
	Constructor that takes coordinates.
virtual	~DtGeodeticRegion ()
	Destructor.
virtual void	setRegionBounds (const DtGeodeticCoord &lowerBound, const DtGeodeticCoord &upperBound)
	Set the bounds of the region to those specified by the two Geodetic points.
virtual void	setRegionBounds (const DtVector &point, double metersNorth, double metersEast)
	Set the bounds of the region a specific number of meters east of the geocentric point and a specific number of meters north of the geocentric point.
virtual void	setApproximateUpdateTime (DtTime updateTime)
	Set the approximate update time.
virtual DtTime	approximateUpdateTime () const
	Get the approximate update time.
virtual void	updateRegionWithVelocity (const DtVector &geocentricPosition, const DtVector &geocentricVelocity)
	Updates the region according to the entity's position, velocity, and approximate update time.
virtual bool	needToUpdateRegion (const DtVector &geocentricPosition) const
	Determines whether region should be updated based on current position.
Protected Member Functions
	DtGeodeticRegion (const DtGeodeticRegion &orig)
	Copy constructor not implemented. Not copyable.
const DtGeodeticRegion &	operator= (const DtGeodeticRegion &orig)
	Assignment operator not implemented. Not assignable.
Protected Attributes
DtGeodeticNormalizer *	myNormalizer
DtTime	myApproximateUpdateTime
double	myNorthSouthThreshold
	These values are used to compute whether we need to update the region or not.
double	myEastWestThreshold
DtVector	myLastLocation
	This stores the entity's last known location.
DtCoordTransform	myLastGeocToTopoTransform
	This stores the transformation matrix used the last time the region was updated.

---

Detailed Description

DtGeodeticRegion.

DtGeodeticRegion defines a geographic region with two dimensions.

DtGeodeticRegion extends the DtDDMRegion class to construct a region with two dimensions, "X" and "Y," that correspond to the longitude and latitude of the earth, respectively. The class provides member functions that take geodetic coordinates and construct/move a region based on them.

---

Constructor & Destructor Documentation

DtGeodeticRegion::DtGeodeticRegion

(

DtExerciseConn *

exConn

)

Constructor that uses default space and dimensions.

Creates a region in the space "BenchmarkGeographicSpace" (in 1.3) with the dimensions "X" and "Y." These are the defaults for the geographic DDM mechanism within VR-Link. If the region is constructed with this constructor, the play-box is set to the parameters set within the exercise connection.

Exceptions:

DtException

if a region cannot be created

DtGeodeticRegion::DtGeodeticRegion	(	DtExerciseConn *	exConn,
		const std::vector< DtString > &	dimensionNamesVector
	)

Constructor.

If the region is constructed with this constructor, the play-box is set to the parameters set within the exercise connection.

Exceptions:

DtException

the dimensions cannot be initialized or the region cannot be created

DtGeodeticRegion::DtGeodeticRegion	(	DtExerciseConn *	conn,
		const std::vector< DtString > &	dimensionNamesVector,
		const DtGeodeticCoord &	ddmPlayboxLowerBound,
		const DtGeodeticCoord &	ddmPlayboxUpperBound
	)

Constructor that takes coordinates.

If the region is constructed with this constructor, the play-box is set to the points specified.

Exceptions:

DtException

the dimensions cannot be initialized or the region cannot be created

virtual DtGeodeticRegion::~DtGeodeticRegion

(

)

[virtual]

Destructor.

DtGeodeticRegion::DtGeodeticRegion

(

const DtGeodeticRegion &

orig

)

[protected]

Copy constructor not implemented. Not copyable.

---

Member Function Documentation

virtual DtTime DtGeodeticRegion::approximateUpdateTime

(

)

const [virtual]

Get the approximate update time.

Returns:

The update time in seconds.

virtual bool DtGeodeticRegion::needToUpdateRegion

(

const DtVector &

geocentricPosition

)

const [virtual]

Determines whether region should be updated based on current position.

Returns true if region should be updated and false otherwise.

const DtGeodeticRegion& DtGeodeticRegion::operator=

(

const DtGeodeticRegion &

orig

)

[protected]

Assignment operator not implemented. Not assignable.

virtual void DtGeodeticRegion::setApproximateUpdateTime

(

DtTime

updateTime

)

[virtual]

Set the approximate update time.

This is used to determine whether the region should be updated based on the approximate time the user wants the region updated and the velocity of the entity within the region. This is only applicable to regions for published entities.

Parameters:

updateTime

The update time in seconds.

virtual void DtGeodeticRegion::setRegionBounds	(	const DtGeodeticCoord &	lowerBound,
		const DtGeodeticCoord &	upperBound
	)		[virtual]

Set the bounds of the region to those specified by the two Geodetic points.

virtual void DtGeodeticRegion::setRegionBounds	(	const DtVector &	point,
		double	metersNorth,
		double	metersEast
	)		[virtual]

Set the bounds of the region a specific number of meters east of the geocentric point and a specific number of meters north of the geocentric point.

virtual void DtGeodeticRegion::updateRegionWithVelocity	(	const DtVector &	geocentricPosition,
		const DtVector &	geocentricVelocity
	)		[virtual]

Updates the region according to the entity's position, velocity, and approximate update time.

---

Member Data Documentation

DtTime DtGeodeticRegion::myApproximateUpdateTime [protected]

double DtGeodeticRegion::myEastWestThreshold [protected]

DtCoordTransform DtGeodeticRegion::myLastGeocToTopoTransform [protected]

This stores the transformation matrix used the last time the region was updated.

This is used to determine when the region should be updated.

DtVector DtGeodeticRegion::myLastLocation [protected]

This stores the entity's last known location.

This is set when updateRegionWithVelocity is called

DtGeodeticNormalizer* DtGeodeticRegion::myNormalizer [protected]

double DtGeodeticRegion::myNorthSouthThreshold [protected]

These values are used to compute whether we need to update the region or not.

---

The documentation for this class was generated from the following file:

• geodeticRegion.h
