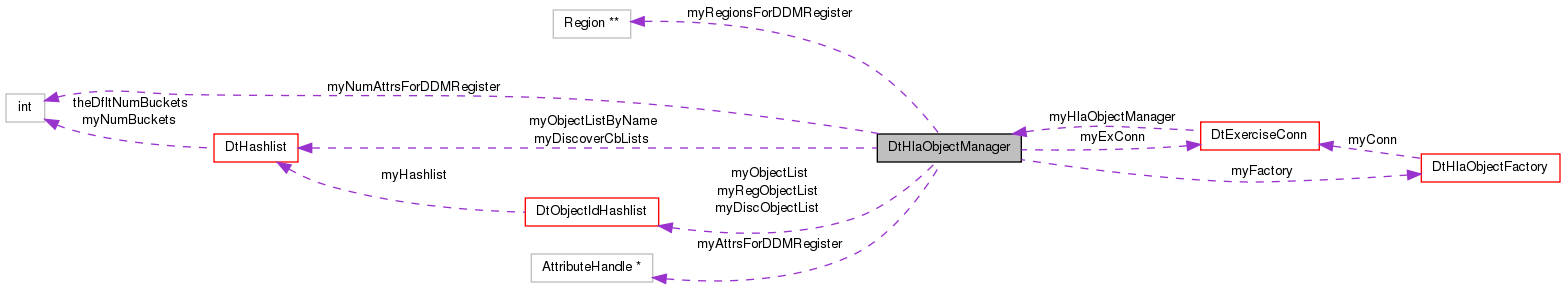

Collaboration diagram for DtHlaObjectManager:

Public Member Functions
	DtHlaObjectManager (DtHlaObjectFactory factory, DtExerciseConn conn)
	Constructor.
virtual	~DtHlaObjectManager ()
	Destructor.
virtual const DtList &	allHlaObjects () const
	Get the list of all HLA objects known to the federate.
virtual const DtList &	registeredObjects () const
	Get the list of all HLA objects registered by the federate.
virtual const DtList &	discoveredObjects () const
	Get the list of all HLA objects discovered by the federate.
virtual DtHlaObject *	hlaObject (RTI::ObjectHandle id) const
	Get the HLA object based on its identifier.
virtual DtHlaObject *	hlaObject (const char *name) const
	Get the HLA object based on its name.
virtual void	addDiscoverObjectCallback (RTI::ObjectClassHandle handle, DtDiscoverObjectCb cb, void *usr)
	Add/remove a callback to be called when an object which meets the federate's subscription criteria is discovered.
virtual void	removeDiscoverObjectCallback (RTI::ObjectClassHandle handle, DtDiscoverObjectCb cb, void *usr)
virtual void	addRemoveObjectCallback (RTI::ObjectHandle id, DtRemoveObjectCb cb, void *usr)
	Add/remove a callback to be called when an object has been removed from the federation or no longer meets the interest criteria of the federate.
virtual void	removeRemoveObjectCallback (RTI::ObjectHandle id, DtRemoveObjectCb cb, void *usr)
virtual const DtHlaObject *	processDiscoverObject (RTI::ObjectHandle id, RTI::ObjectClassHandle handle, const char *name)
	Process the discovery of an object.
virtual const DtHlaObject *	processDiscoverObject (DtHlaObject *hlaObj)
	Same as above, but takes an existing DtHlaObject.
virtual void	processRemoveObject (RTI::ObjectHandle id)
	Process the removal of an object.
virtual void	processRemoveObject (DtHlaObject *obj)
	Same as above, but takes an existing DtHlaObject.
virtual void	processReflectAttributeValues (const DtStateMsg &msg)
	Process an update message.
virtual void	processProvideUpdate (RTI::ObjectHandle id, const RTI::AttributeHandleSet &theAttributes)
	Process RTI's provideUpdate service.
virtual void	processLocalUpdateRequest (RTI::ObjectClassHandle hand, const RTI::AttributeHandleSet &set)
	When we are reflecting local data, this function is called to let the object manager know that we have locally requested updates for a class/set of attributes.
virtual void	localSubscriptionChanged (RTI::ObjectClassHandle handle)
	Called when the local subscription information changes.
virtual void	publicationChanged (RTI::ObjectClassHandle handle)
	Called when the local publication information changes.
virtual void	processAttributeAcquisition (RTI::ObjectHandle id, const RTI::AttributeHandleSet &attrs)
	Process RTI's attributeOwnershipAcquisitionNotification service.
virtual void	processAttributeDivestiture (RTI::ObjectHandle id, const RTI::AttributeHandleSet &attrs)
	Process RTI's attributeOwnershipDivestitureNotification service.
virtual void	processRequestAssumption (RTI::ObjectHandle id, const RTI::AttributeHandleSet &attrs, const char *tag)
	Process RTI's requestAttributeOwnershipAssumption service.
virtual void	processRequestRelease (RTI::ObjectHandle id, const RTI::AttributeHandleSet &attrs, const char *tag)
	Process RTI's requestAttributeOwnershipRelease service.
virtual void	processConfirmAcquisitionCancellation (RTI::ObjectHandle id, const RTI::AttributeHandleSet &attrs)
	Process RTI's conformAttributeOwnershipAcquisitionCancellation service.
virtual DtHlaObject *	registerHlaObject (RTI::ObjectClassHandle classHand, const char name, const DtDDMRegionSet regionSet=0)
	Use this function instead of the RTI's version to create a new HLA object.
virtual void	registerHlaObjectWithRegion (RTI::ObjectClassHandle classHand, const char *name, const DtDDMRegionSet &regionSet, RTI::ObjectHandle &id)
virtual void	deleteHlaObject (RTI::ObjectHandle objHand)
	Use this function instead of the RTI's version to delete an HLA object.
virtual void	setRegionsForRegister (int numAttrs, RTI::AttributeHandle attrs, RTI::Region *regions)
	By calling setRegionsForRegister, you are telling VR-Link that until you call setRegionsForRegister again (or call setNoRegionsForRegister), VR-Link should use the DDM version of registerObjectInstance whenever it registers an object for you.
virtual void	setNoRegionsForRegister ()
Protected Member Functions
	DtHlaObjectManager (const DtHlaObjectManager &orig)
	Note: The copy constructor and assignment operator are protected because there should only be one object manager per exercise connection.
DtHlaObjectManager &	operator= (const DtHlaObjectManager &orig)
	assignment operator -- Not Implemented
virtual void	objectProcessRemoveObject (DtHlaObject *hlaObj)
	Call DtHlaObject::processRemoveObject().
virtual void	objectProcessReflect (DtHlaObject *hlaObj, const DtStateMsg &msg)
	Call DtHlaObject::callReflect().
virtual DtHlaObject *	addKnownObject (RTI::ObjectHandle id, RTI::ObjectClassHandle hand, const char *name, bool reflecting)
	Call whenever a new object has been registered or discovered.
virtual void	removeKnownObject (DtHlaObject *hlaObj)
	Call whenever an object is to be deleted, either by delete, or remove.
virtual void	removeAllObjects ()
	Called by destructor to remove and delete all DtHlaObjects.
virtual DtList *	discoverCbList (RTI::ObjectClassHandle handle)
	Returns the list of discover callbacks registered for a particular object class.
Protected Attributes
DtHashlist	myDiscoverCbLists
	DtHashlist that maps object class handles (DtIntHashKeys) to pointers to DtLists of callback functions.
DtHlaObjectFactory *	myFactory
DtObjectIdHashlist	myObjectList
	List of all known DtHlaObjects (by id).
DtHashlist	myObjectListByName
	List of all known DtHlaObjects (by String).
DtObjectIdHashlist	myRegObjectList
	List of all DtHlaObjects that we've registered locally.
DtObjectIdHashlist	myDiscObjectList
	List of all DtHlaObjects that we've discovered, possibly including local objects that we are also reflecting.
DtExerciseConn *	myExConn
RTI::AttributeHandle *	myAttrsForDDMRegister
	JIMK REVISIT -- DDM.
RTI::Region **	myRegionsForDDMRegister
int	myNumAttrsForDDMRegister

Detailed Description

class DtHlaObjectManager:

Instances of DtHlaObjectManager are used to manage the set of HLA objects known to the federate.

Constructor & Destructor Documentation

DtHlaObjectManager::DtHlaObjectManager	(	DtHlaObjectFactory *	factory,
		DtExerciseConn *	conn
	)

Constructor.

virtual DtHlaObjectManager::~DtHlaObjectManager ( ) [virtual]

Destructor.

DtHlaObjectManager::DtHlaObjectManager ( const DtHlaObjectManager & orig ) [protected]

Note: The copy constructor and assignment operator are protected because there should only be one object manager per exercise connection.

These should not be called. copy constructor -- Not Implemented

Member Function Documentation

virtual void DtHlaObjectManager::addDiscoverObjectCallback	(	RTI::ObjectClassHandle	handle,
		DtDiscoverObjectCb	cb,
		void *	usr
	)		`[virtual]`

Add/remove a callback to be called when an object which meets the federate's subscription criteria is discovered.

virtual DtHlaObject* DtHlaObjectManager::addKnownObject	(	RTI::ObjectHandle	id,
		RTI::ObjectClassHandle	hand,
		const char *	name,
		bool	reflecting
	)		`[protected, virtual]`

Call whenever a new object has been registered or discovered.

It creates a DtHlaObject, adds it to the set of managed objects, and returns it.

virtual void DtHlaObjectManager::addRemoveObjectCallback	(	RTI::ObjectHandle	id,
		DtRemoveObjectCb	cb,
		void *	usr
	)		`[virtual]`

Add/remove a callback to be called when an object has been removed from the federation or no longer meets the interest criteria of the federate.

const DtList & DtHlaObjectManager::allHlaObjects ( ) const [inline, virtual]

Get the list of all HLA objects known to the federate.

References DtObjectIdHashlist::list(), and myObjectList.

virtual void DtHlaObjectManager::deleteHlaObject ( RTI::ObjectHandle objHand ) [virtual]

Use this function instead of the RTI's version to delete an HLA object.

This function calls RTI's deleteObjectInstance. You should have ownership of the priviledgeToDelete for this object before calling.

virtual DtList* DtHlaObjectManager::discoverCbList ( RTI::ObjectClassHandle handle ) [protected, virtual]

Returns the list of discover callbacks registered for a particular object class.

const DtList & DtHlaObjectManager::discoveredObjects ( ) const [inline, virtual]

Get the list of all HLA objects discovered by the federate.

References DtObjectIdHashlist::list(), and myDiscObjectList.

virtual DtHlaObject* DtHlaObjectManager::hlaObject ( RTI::ObjectHandle id ) const [virtual]

Get the HLA object based on its identifier.

virtual DtHlaObject* DtHlaObjectManager::hlaObject ( const char * name ) const [virtual]

Get the HLA object based on its name.

virtual void DtHlaObjectManager::localSubscriptionChanged ( RTI::ObjectClassHandle handle ) [virtual]

Called when the local subscription information changes.

As a result, we call localSubscriptionChanged for all DtHlaObjects that may be affected.

virtual void DtHlaObjectManager::objectProcessReflect	(	DtHlaObject *	hlaObj,
		const DtStateMsg &	msg
	)		`[protected, virtual]`

Call DtHlaObject::callReflect().

Provides friendship towards DtHlaObject to derived classes.

virtual void DtHlaObjectManager::objectProcessRemoveObject ( DtHlaObject * hlaObj ) [protected, virtual]

Call DtHlaObject::processRemoveObject().

Provides friendship towards DtHlaObject to derived classes.

DtHlaObjectManager& DtHlaObjectManager::operator= ( const DtHlaObjectManager & orig ) [protected]

assignment operator -- Not Implemented

virtual void DtHlaObjectManager::processAttributeAcquisition	(	RTI::ObjectHandle	id,
		const RTI::AttributeHandleSet &	attrs
	)		`[virtual]`

Process RTI's attributeOwnershipAcquisitionNotification service.

virtual void DtHlaObjectManager::processAttributeDivestiture	(	RTI::ObjectHandle	id,
		const RTI::AttributeHandleSet &	attrs
	)		`[virtual]`

Process RTI's attributeOwnershipDivestitureNotification service.

virtual void DtHlaObjectManager::processConfirmAcquisitionCancellation	(	RTI::ObjectHandle	id,
		const RTI::AttributeHandleSet &	attrs
	)		`[virtual]`

Process RTI's conformAttributeOwnershipAcquisitionCancellation service.

virtual const DtHlaObject* DtHlaObjectManager::processDiscoverObject	(	RTI::ObjectHandle	id,
		RTI::ObjectClassHandle	handle,
		const char *	name
	)		`[virtual]`

Process the discovery of an object.

Creates the object, sets it up for reflecting, and calls discover callbacks. Called on real discovers. Returns the added instance.

virtual const DtHlaObject* DtHlaObjectManager::processDiscoverObject ( DtHlaObject * hlaObj ) [virtual]

Same as above, but takes an existing DtHlaObject.

Called on real discovers and when discovering objects that we register locally, if reflecting is on. returns the instance.

virtual void DtHlaObjectManager::processLocalUpdateRequest	(	RTI::ObjectClassHandle	hand,
		const RTI::AttributeHandleSet &	set
	)		`[virtual]`

When we are reflecting local data, this function is called to let the object manager know that we have locally requested updates for a class/set of attributes.

As a result, we will call processProvideUpdate for all relevant objects.

virtual void DtHlaObjectManager::processProvideUpdate	(	RTI::ObjectHandle	id,
		const RTI::AttributeHandleSet &	theAttributes
	)		`[virtual]`

Process RTI's provideUpdate service.

virtual void DtHlaObjectManager::processReflectAttributeValues ( const DtStateMsg & msg ) [virtual]

Process an update message.

virtual void DtHlaObjectManager::processRemoveObject ( RTI::ObjectHandle id ) [virtual]

Process the removal of an object.

Cleans up the object from reflecting. Called on real removals.

virtual void DtHlaObjectManager::processRemoveObject ( DtHlaObject * obj ) [virtual]

Same as above, but takes an existing DtHlaObject.

Called on real removals, and on removals from the discovered list of objects that we are deleting locally, if reflecting is on.

virtual void DtHlaObjectManager::processRequestAssumption	(	RTI::ObjectHandle	id,
		const RTI::AttributeHandleSet &	attrs,
		const char *	tag
	)		`[virtual]`

Process RTI's requestAttributeOwnershipAssumption service.

virtual void DtHlaObjectManager::processRequestRelease	(	RTI::ObjectHandle	id,
		const RTI::AttributeHandleSet &	attrs,
		const char *	tag
	)		`[virtual]`

Process RTI's requestAttributeOwnershipRelease service.

virtual void DtHlaObjectManager::publicationChanged ( RTI::ObjectClassHandle handle ) [virtual]

Called when the local publication information changes.

As a result, we call publicationChanged for all DtHlaObjects that may be affected.

const DtList & DtHlaObjectManager::registeredObjects ( ) const [inline, virtual]

Get the list of all HLA objects registered by the federate.

References DtObjectIdHashlist::list(), and myRegObjectList.

virtual DtHlaObject* DtHlaObjectManager::registerHlaObject	(	RTI::ObjectClassHandle	classHand,
		const char *	name,
		const DtDDMRegionSet *	regionSet = `0`
	)		`[virtual]`

Use this function instead of the RTI's version to create a new HLA object.

This function calls RTI's registerObjectInstance.

virtual void DtHlaObjectManager::registerHlaObjectWithRegion	(	RTI::ObjectClassHandle	classHand,
		const char *	name,
		const DtDDMRegionSet &	regionSet,
		RTI::ObjectHandle &	id
	)		`[virtual]`

virtual void DtHlaObjectManager::removeAllObjects ( ) [protected, virtual]

Called by destructor to remove and delete all DtHlaObjects.

virtual void DtHlaObjectManager::removeDiscoverObjectCallback	(	RTI::ObjectClassHandle	handle,
		DtDiscoverObjectCb	cb,
		void *	usr
	)		`[virtual]`

virtual void DtHlaObjectManager::removeKnownObject ( DtHlaObject * hlaObj ) [protected, virtual]

Call whenever an object is to be deleted, either by delete, or remove.

It removes hlaObj from the set of managed objects, and deletes it.

virtual void DtHlaObjectManager::removeRemoveObjectCallback	(	RTI::ObjectHandle	id,
		DtRemoveObjectCb	cb,
		void *	usr
	)		`[virtual]`

virtual void DtHlaObjectManager::setNoRegionsForRegister ( ) [virtual]

virtual void DtHlaObjectManager::setRegionsForRegister	(	int	numAttrs,
		RTI::AttributeHandle *	attrs,
		RTI::Region **	regions
	)		`[virtual]`

By calling setRegionsForRegister, you are telling VR-Link that until you call setRegionsForRegister again (or call setNoRegionsForRegister), VR-Link should use the DDM version of registerObjectInstance whenever it registers an object for you.

The specified arguments will be passed to the RTI. (VR-Link typically registers an object from within a DtObjectPublisher constructor). In order to restore VR-Link back to the default state, when registers are done with the non-DDM version of registerObjectInstance, call setNoRegionsForRegister. attrs is an array of numAttrs attribute handles, regions is an array of numAttrs pointers to RTI::regions. The lifetime of the arrays must extend through the time that the register occurs. Deletion of the arrays is the caller's responsibility. JIMK REVISIT -- implement DDM
