DtStateMsg Class Reference

class DtStateMsg: More...

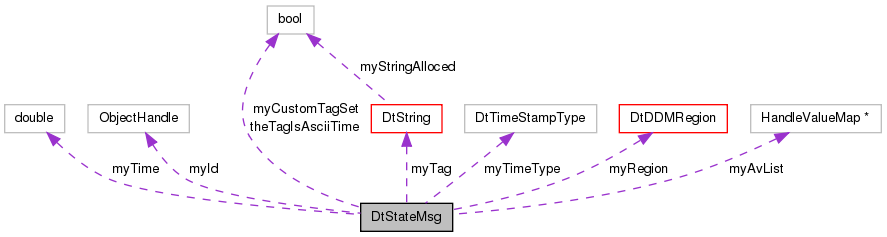

Collaboration diagram for DtStateMsg:

List of all members.

Public Member Functions
	DtStateMsg (objHandle id, const HandleValueMap &attrs)
	constructor
	DtStateMsg (objHandle id, HandleValueMap *attrs)
	constructor
virtual	~DtStateMsg ()
	destructor
	DtStateMsg (const DtStateMsg &orig)
	copy constructor
DtStateMsg &	operator= (const DtStateMsg &orig)
	assignment operator
virtual objHandle	objectId () const
	Get the object identifier.
virtual const HandleValueMap &	handleMap () const
	Get the attribute handle value pair set. (Const version)
virtual HandleValueMap *	handleMap ()
	Get the attribute handle value pair set. (Non-const version)
virtual void	setTag (const DtString &tag)
	Set/Get the user-defined tag.
virtual void	setCustomTag (const DtString &tag)
virtual const DtString &	tag () const
virtual bool	customTagSet () const
	Get whether a custom tag has been set on the interaction or not.
virtual void	print (DtExerciseConn *exConn, RTI::ObjectClassHandle h) const
	Prints the header and attributes with values.
virtual void	printToStream (std::ostream &stream, DtExerciseConn *exConn, RTI::ObjectClassHandle h) const
	Prints the header and attributes with values to a stream.
virtual void	printHeader (DtExerciseConn *exConn, RTI::ObjectClassHandle classHandle) const
	Prints the header information.
virtual void	printHeaderToStream (std::ostream &stream, DtExerciseConn *exConn, RTI::ObjectClassHandle classHandle) const
	Prints the header information to a stream.
virtual void	printAttrs (DtExerciseConn *exConn, RTI::ObjectClassHandle classHandle, int withHex) const
	Print the attributes (with hex values if withHex is 1).
virtual void	printAttrsToStream (std::ostream &stream, DtExerciseConn *exConn, RTI::ObjectClassHandle classHandle, int withHex) const
	Print the attributes to a stream.
virtual void	print (DtHlaObject *obj, bool fullReport=true) const
	Uses the object to print host representation of data.
virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the time of validity of the message, and whether this represents relative or absolute time.
virtual DtTime	timeStamp () const
	Return the time of validity of the message (in seconds past an hour) as set by setTimeStamp.
virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp.
virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour.
virtual const DtDDMRegion *	region () const
	Get & Set the region of the reflected state message.
virtual void	setRegion (const DtDDMRegion &region)
Static Public Member Functions
static void	setTagIsAsciiTime (bool val)
	Set/Get flag that tells us whether we're using the RPR FOM convention that the UserDefinedTag in updates and interactions represents a DIS-style timestamp.
static bool	tagIsAsciiTime ()
Protected Attributes
HandleValueMap *	myAvList
DtString	myTag
objHandle	myId
DtTime	myTime
DtTimeStampType	myTimeType
bool	myCustomTagSet
DtDDMRegion *	myRegion
Static Protected Attributes
static bool	theTagIsAsciiTime

---

Detailed Description

class DtStateMsg:

Instances of DtStateMsg are used to represent state data communicated via the network in an HLA (as opposed to DIS) environment.

---

Constructor & Destructor Documentation

DtStateMsg::DtStateMsg	(	objHandle	id,
		const HandleValueMap &	attrs
	)

constructor

DtStateMsg::DtStateMsg	(	objHandle	id,
		HandleValueMap *	attrs
	)

constructor

virtual DtStateMsg::~DtStateMsg

(

)

[virtual]

destructor

DtStateMsg::DtStateMsg

(

const DtStateMsg &

orig

)

copy constructor

---

Member Function Documentation

virtual bool DtStateMsg::customTagSet

(

)

const [virtual]

Get whether a custom tag has been set on the interaction or not.

virtual DtTime DtStateMsg::guessTimeValid

(

DtTime

referenceTime

)

const [virtual]

Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour.

const HandleValueMap & DtStateMsg::handleMap

(

)

const [inline, virtual]

Get the attribute handle value pair set. (Const version)

References myAvList.

HandleValueMap * DtStateMsg::handleMap

(

)

[inline, virtual]

Get the attribute handle value pair set. (Non-const version)

References myAvList.

objHandle DtStateMsg::objectId

(

)

const [inline, virtual]

Get the object identifier.

References myId.

DtStateMsg& DtStateMsg::operator=

(

const DtStateMsg &

orig

)

assignment operator

virtual void DtStateMsg::print	(	DtExerciseConn *	exConn,
		RTI::ObjectClassHandle	h
	)		const [virtual]

Prints the header and attributes with values.

virtual void DtStateMsg::print	(	DtHlaObject *	obj,
		bool	fullReport = true
	)		const [virtual]

Uses the object to print host representation of data.

virtual void DtStateMsg::printAttrs	(	DtExerciseConn *	exConn,
		RTI::ObjectClassHandle	classHandle,
		int	withHex
	)		const [virtual]

Print the attributes (with hex values if withHex is 1).

virtual void DtStateMsg::printAttrsToStream	(	std::ostream &	stream,
		DtExerciseConn *	exConn,
		RTI::ObjectClassHandle	classHandle,
		int	withHex
	)		const [virtual]

Print the attributes to a stream.

virtual void DtStateMsg::printHeader	(	DtExerciseConn *	exConn,
		RTI::ObjectClassHandle	classHandle
	)		const [virtual]

Prints the header information.

virtual void DtStateMsg::printHeaderToStream	(	std::ostream &	stream,
		DtExerciseConn *	exConn,
		RTI::ObjectClassHandle	classHandle
	)		const [virtual]

Prints the header information to a stream.

virtual void DtStateMsg::printToStream	(	std::ostream &	stream,
		DtExerciseConn *	exConn,
		RTI::ObjectClassHandle	h
	)		const [virtual]

Prints the header and attributes with values to a stream.

virtual const DtDDMRegion* DtStateMsg::region

(

)

const [virtual]

Get & Set the region of the reflected state message.

virtual void DtStateMsg::setCustomTag

(

const DtString &

tag

)

[virtual]

virtual void DtStateMsg::setRegion

(

const DtDDMRegion &

region

)

[virtual]

virtual void DtStateMsg::setTag

(

const DtString &

tag

)

[virtual]

Set/Get the user-defined tag.

static void DtStateMsg::setTagIsAsciiTime

(

bool

val

)

[static]

Set/Get flag that tells us whether we're using the RPR FOM convention that the UserDefinedTag in updates and interactions represents a DIS-style timestamp.

virtual void DtStateMsg::setTimeStamp	(	DtTime	time,
		DtTimeStampType	type = DtTimeStampRelative
	)		[virtual]

Set the time of validity of the message, and whether this represents relative or absolute time.

Time is in seconds, but only time modulo an hour is stored.

virtual const DtString& DtStateMsg::tag

(

)

const [virtual]

static bool DtStateMsg::tagIsAsciiTime

(

)

[static]

virtual DtTime DtStateMsg::timeStamp

(

)

const [virtual]

Return the time of validity of the message (in seconds past an hour) as set by setTimeStamp.

virtual DtTimeStampType DtStateMsg::timeStampType

(

)

const [virtual]

Return the type of the time stamp.

---

Member Data Documentation

HandleValueMap* DtStateMsg::myAvList [protected]

Referenced by handleMap().

bool DtStateMsg::myCustomTagSet [protected]

objHandle DtStateMsg::myId [protected]

Referenced by objectId().

DtDDMRegion* DtStateMsg::myRegion [protected]

DtString DtStateMsg::myTag [protected]

DtTime DtStateMsg::myTime [protected]

DtTimeStampType DtStateMsg::myTimeType [protected]

bool DtStateMsg::theTagIsAsciiTime [static, protected]

---

The documentation for this class was generated from the following file:

• hStateMsg.h
