Inheritance diagram for DtHlaObjectWithStateRep:

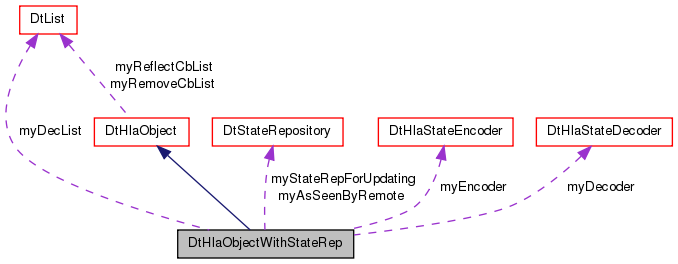

Collaboration diagram for DtHlaObjectWithStateRep:

Public Member Functions
	DtHlaObjectWithStateRep (DtExerciseConn conn, RTI::ObjectHandle id, const char name, DtObjClassDesc &classDesc, bool reflecting)
	constructor
	DtHlaObjectWithStateRep (DtExerciseConn conn, const char name, DtObjClassDesc &classDesc, bool reflecting)
	constructor
virtual	~DtHlaObjectWithStateRep ()
	destructor
virtual void	useTheseForUpdating (DtStateRepository stateRep, DtStateRepository asSeenByRemote, DtHlaStateEncoder encoder, DtHlaStateDecoder decoder)
	Local Entity specific functions.
virtual void	generateUpdate (const RTI::AttributeHandleSet &eligibleAttrs, const RTI::AttributeHandleSet &requiredAttrs, DtStateMsg *stateMsg)
	Called by update() to actually generate an outgoing message.
virtual DtStateRepository *	stateRepForUpdating () const
	Returns current state repository used for updating.
virtual DtStateRepository *	stateRepForReflecting () const
	Returns current state repository used for reflecting.
virtual DtStateRepository *	asSeenByRemote () const
	Returns asSeenByRemote.
virtual void	useTheseForReflecting (DtStateRepository stateRep, DtHlaStateDecoder decoder)
	Remote Entity specific functions.
virtual void	stopUsingTheseForReflecting (DtStateRepository stateRep, DtHlaStateDecoder decoder)
	Remove a decoder/stateRep pair to use for decoding.
virtual void	reflect (const DtStateMsg &stateMsg)
	Receive representation (remote reflection) from the RTI, and update any state repositories that have been registered with us, to reflect this incoming data.
virtual void	reflectLocal (const DtStateMsg &stateMsg)
	When the DtExerciseConn's reflecting flag is on, this function is called when we send an update, so that the update can get reflected back into our "reflected" views of the object.
virtual void	printMsg (const DtStateMsg &msg, bool fullReport) const
	Prints contents of a state msg.
Static Public Member Functions
static DtHlaObject *	create (DtExerciseConn conn, RTI::ObjectHandle id, const char name, DtObjClassDesc &classDesc, bool reflecting)
	Creator function for this class.
Protected Member Functions
	DtHlaObjectWithStateRep (const DtHlaObjectWithStateRep &orig)
	copy constructor - not implemented.
DtHlaObjectWithStateRep &	operator= (const DtHlaObjectWithStateRep &orig)
	assignment operator - not implemented.
Protected Attributes
DtHlaStateDecoder *	myDecoder
	These are all used for encoding only.
DtHlaStateEncoder *	myEncoder
DtStateRepository *	myStateRepForUpdating
DtStateRepository *	myAsSeenByRemote
DtList	myDecList
	List of decoder/stateRep pairs.

Detailed Description

class DtHlaObjectWithStateRep:

Instances of DtHlaObjectWithStateRep are used to represent an HLA object via a state representation.

Constructor & Destructor Documentation

DtHlaObjectWithStateRep::DtHlaObjectWithStateRep	(	DtExerciseConn *	conn,
		RTI::ObjectHandle	id,
		const char *	name,
		DtObjClassDesc &	classDesc,
		bool	reflecting
	)

constructor

Referenced by create().

DtHlaObjectWithStateRep::DtHlaObjectWithStateRep	(	DtExerciseConn *	conn,
		const char *	name,
		DtObjClassDesc &	classDesc,
		bool	reflecting
	)

constructor

virtual DtHlaObjectWithStateRep::~DtHlaObjectWithStateRep ( ) [virtual]

destructor

DtHlaObjectWithStateRep::DtHlaObjectWithStateRep ( const DtHlaObjectWithStateRep & orig ) [protected]

copy constructor - not implemented.

Member Function Documentation

DtStateRepository * DtHlaObjectWithStateRep::asSeenByRemote ( ) const [inline, virtual]

Returns asSeenByRemote.

References myAsSeenByRemote.

DtHlaObject * DtHlaObjectWithStateRep::create	(	DtExerciseConn *	conn,
		RTI::ObjectHandle	id,
		const char *	name,
		DtObjClassDesc &	classDesc,
		bool	reflecting
	)		`[inline, static]`

Creator function for this class.

References DtHlaObjectWithStateRep().

virtual void DtHlaObjectWithStateRep::generateUpdate	(	const RTI::AttributeHandleSet &	eligibleAttrs,
		const RTI::AttributeHandleSet &	requiredAttrs,
		DtStateMsg *	stateMsg
	)		`[virtual]`

Called by update() to actually generate an outgoing message.

This class's implementation uses an encoder, and stateRepositories to perform this function. eligibleAttrs is the set of owned attributes to which remote federates have subscribed. requiredAttrs is the set of attributes that have been requested or forced by application code since the attribute was last sent. stateMsg is the message to fill out.

Reimplemented from DtHlaObject.

DtHlaObjectWithStateRep& DtHlaObjectWithStateRep::operator= ( const DtHlaObjectWithStateRep & orig ) [protected]

assignment operator - not implemented.

virtual void DtHlaObjectWithStateRep::printMsg	(	const DtStateMsg &	msg,
		bool	fullReport
	)		const `[virtual]`

Prints contents of a state msg.

Base class prints only header info. If fullReport set to true, printMsg requests a full status print out for objects with a state repository.

Reimplemented from DtHlaObject.

virtual void DtHlaObjectWithStateRep::reflect ( const DtStateMsg & stateMsg ) [virtual]

Receive representation (remote reflection) from the RTI, and update any state repositories that have been registered with us, to reflect this incoming data.

If the exercise connection's reflecting flag is set, and its reflectRemoteUpdatesIntoPub flag is set, then we decode the message into myStateRepForUpdating in addition to any state repositories that have been registered with us for reflection.

Implements DtHlaObject.

virtual void DtHlaObjectWithStateRep::reflectLocal ( const DtStateMsg & stateMsg ) [virtual]

When the DtExerciseConn's reflecting flag is on, this function is called when we send an update, so that the update can get reflected back into our "reflected" views of the object.

Implements DtHlaObject.

virtual DtStateRepository* DtHlaObjectWithStateRep::stateRepForReflecting ( ) const [virtual]

Returns current state repository used for reflecting.

Returns the state repository containing the current reflected state of the entity. If there is more than one such state repository (e.g. you have multiple RELs in your application), the first one is returned.

DtStateRepository * DtHlaObjectWithStateRep::stateRepForUpdating ( ) const [inline, virtual]

Returns current state repository used for updating.

References myStateRepForUpdating.

virtual void DtHlaObjectWithStateRep::stopUsingTheseForReflecting	(	DtStateRepository *	stateRep,
		DtHlaStateDecoder *	decoder
	)		`[virtual]`

Remove a decoder/stateRep pair to use for decoding.

virtual void DtHlaObjectWithStateRep::useTheseForReflecting	(	DtStateRepository *	stateRep,
		DtHlaStateDecoder *	decoder
	)		`[virtual]`

Remote Entity specific functions.

Add a decoder/stateRep pair to use for decoding. Incoming HLA messages will be decoded into stateRep using decoder.

virtual void DtHlaObjectWithStateRep::useTheseForUpdating	(	DtStateRepository *	stateRep,
		DtStateRepository *	asSeenByRemote,
		DtHlaStateEncoder *	encoder,
		DtHlaStateDecoder *	decoder
	)		`[virtual]`

Local Entity specific functions.

Set the state repositories (local representation and remote reflection), and the encoder and decoder which are used to send and receive HLA state messages from/into the repository.
