DtVrlFederateAmbassador Class Reference

Inheritance diagram for DtVrlFederateAmbassador:

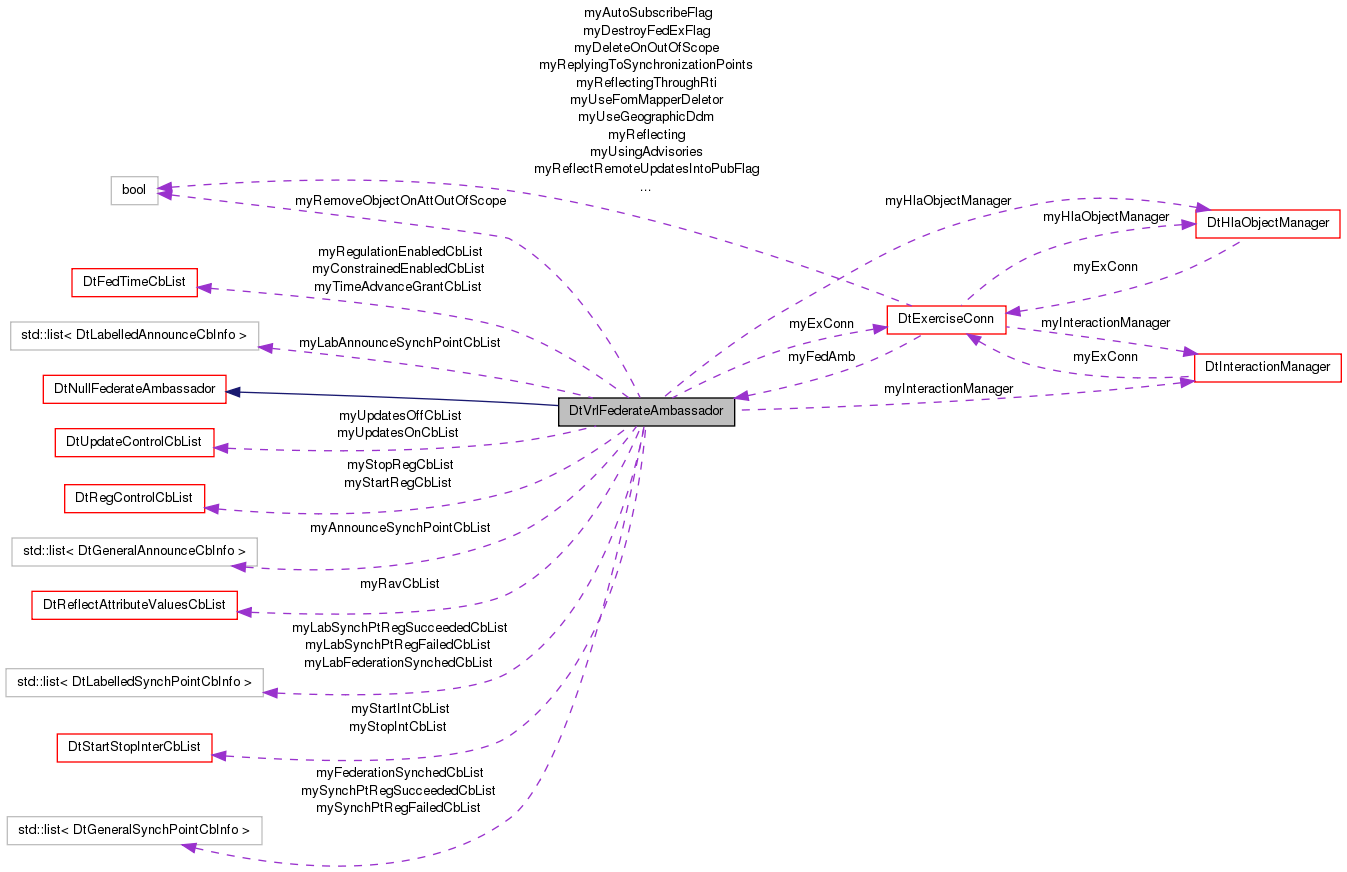

Collaboration diagram for DtVrlFederateAmbassador:

List of all members.

Classes
struct	DtGeneralAnnounceCbInfo
struct	DtGeneralSynchPointCbInfo
struct	DtLabelledAnnounceCbInfo
struct	DtLabelledSynchPointCbInfo
struct	DtScopeChangeCallbackData
Public Member Functions
	DtVrlFederateAmbassador ()
	default constructor
virtual	~DtVrlFederateAmbassador () throw ( RTI::FederateInternalError )
	destructor
virtual void	init (DtExerciseConn *exConn, DtHlaObjectManager *hlaObjMgr, DtInteractionManager *interMgr)
	Initialize the ambassador.
virtual void	addReflectAttributeValuesCb (RTI::ObjectHandle id, DtReflectAttributeValuesCb cb, void *usr)
	Add/Remove (register/deregister) function to be called when the RTI's reflectAttributeValues service is invoked.
virtual void	removeReflectAttributeValuesCb (RTI::ObjectHandle id, DtReflectAttributeValuesCb cb, void *usr)
virtual void	addDiscoverObjectCb (RTI::ObjectClassHandle hand, DtDiscoverObjectCb cb, void *usr)
	Add/Remove (register/deregister) function to be called when the RTI's discoverObject service is invoked.
virtual void	removeDiscoverObjectCb (RTI::ObjectClassHandle hand, DtDiscoverObjectCb cb, void *usr)
virtual void	addRemoveObjectCb (RTI::ObjectHandle id, DtRemoveObjectCb cb, void *usr)
	Add/Remove (register/deregister) function to be called when the RTI's removeObject service is invoked.
virtual void	removeRemoveObjectCb (RTI::ObjectHandle id, DtRemoveObjectCb cb, void *usr)
virtual void	addStartRegCb (RTI::ObjectClassHandle hand, DtStartRegCb cb, void *usr)
	Add/Remove (register/deregister) function to be called when the RTI's startRegistration service is invoked.
virtual void	removeStartRegCb (RTI::ObjectClassHandle hand, DtStartRegCb cb, void *usr)
virtual void	addStopRegCb (RTI::ObjectClassHandle hand, DtStopRegCb cb, void *usr)
	Add/Remove (register/deregister) function to be called when the RTI's stopReg service is invoked.
virtual void	removeStopRegCb (RTI::ObjectClassHandle hand, DtStopRegCb cb, void *usr)
virtual void	addUpdatesOnCb (RTI::ObjectHandle hand, DtUpdatesOnCb cb, void *usr)
	Add/Remove (register/deregister) function to be called when the RTI's turnUpdatesOn service is invoked.
virtual void	removeUpdatesOnCb (RTI::ObjectHandle hand, DtUpdatesOnCb cb, void *usr)
virtual void	addUpdatesOffCb (RTI::ObjectHandle hand, DtUpdatesOffCb cb, void *usr)
	Add/Remove (register/deregister) function to be called when the RTI's turnUpdatesOff service is invoked.
virtual void	removeUpdatesOffCb (RTI::ObjectHandle hand, DtUpdatesOffCb cb, void *usr)
virtual void	addStartInteractionsCb (RTI::InteractionClassHandle hand, DtStartStopInterCb cb, void *usr)
	Add/Remove (register/deregister) function to be called when the RTI's startInteractionGeneration service is invoked.
virtual void	removeStartInteractionsCb (RTI::InteractionClassHandle hand, DtStartStopInterCb cb, void *usr)
virtual void	addStopInteractionsCb (RTI::InteractionClassHandle hand, DtStartStopInterCb cb, void *usr)
	Add/Remove (register/deregister) function to be called when the RTI's stopInteractionGeneration service is invoked.
virtual void	removeStopInteractionsCb (RTI::InteractionClassHandle hand, DtStartStopInterCb cb, void *usr)
virtual void	addReceiveInteractionCb (RTI::InteractionClassHandle hand, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Add/Remove (register/deregister) function to be called when the RTI's receiveInteraction service is invoked.
virtual void	removeReceiveInteractionCb (RTI::InteractionClassHandle hand, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
virtual void	addTimeAdvanceGrantCb (DtFedTimeCb cb, void *usr)
	Add/Remove (register/deregister) function to be called when the RTI's TimeAdvanceGrant service is invoked.
virtual void	removeTimeAdvanceGrantCb (DtFedTimeCb cb, void *usr)
virtual void	addTimeRegulationEnabledCb (DtFedTimeCb cb, void *usr)
	Add/Remove (register/deregister) function to be called when the RTI's TimeRegulationEnabled service is invoked.
virtual void	removeTimeRegulationEnabledCb (DtFedTimeCb cb, void *usr)
virtual void	addTimeConstrainedEnabledCb (DtFedTimeCb cb, void *usr)
	Add/Remove (register/deregister) function to be called when the RTI's TimeConstrainedEnabled service is invoked.
virtual void	removeTimeConstrainedEnabledCb (DtFedTimeCb cb, void *usr)
virtual void	setRemoveObjectOnAttOutOfScope (bool remove)
virtual bool	removeObjectOnAttOutOfScope () const
virtual void	timeAdvanceGrant (const RTI::FedTime &theTime) throw ( RTI::InvalidFederationTime, RTI::TimeAdvanceWasNotInProgress, RTI::FederateInternalError )
	The functions below should probably be protected, but they need to be called by various VR-Link classes to implement the setReflecting() idea, when reflectingThroughRti is true.
virtual void	timeRegulationEnabled (const RTI::FedTime &theTime) throw ( RTI::InvalidFederationTime, RTI::EnableTimeRegulationWasNotPending, RTI::FederateInternalError )
	! Time Management Services //!
virtual void	timeConstrainedEnabled (const RTI::FedTime &theTime) throw ( RTI::InvalidFederationTime, RTI::EnableTimeConstrainedWasNotPending, RTI::FederateInternalError )
	supplied C4
virtual void	startRegistrationForObjectClass (RTI::ObjectClassHandle theClass) throw ( RTI::ObjectClassNotPublished, RTI::FederateInternalError )
	! Declaration Management Services //!
virtual void	stopRegistrationForObjectClass (RTI::ObjectClassHandle theClass) throw ( RTI::ObjectClassNotPublished, RTI::FederateInternalError )
virtual void	turnInteractionsOn (RTI::InteractionClassHandle theHandle) throw ( RTI::InteractionClassNotPublished, RTI::FederateInternalError )
virtual void	turnInteractionsOff (RTI::InteractionClassHandle theHandle) throw ( RTI::InteractionClassNotPublished, RTI::FederateInternalError )
virtual void	discoverObjectInstance (RTI::ObjectHandle theObject, RTI::ObjectClassHandle theObjectClass, const char *theObjectName) throw ( RTI::CouldNotDiscover, RTI::ObjectClassNotKnown, RTI::FederateInternalError )
	! Object Management Services //!
virtual void	reflectAttributeValues (RTI::ObjectHandle theObject, const RTI::AttributeHandleValuePairSet &theAttributes, const RTI::FedTime &theTime, const char *theTag, RTI::EventRetractionHandle theHandle) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::FederateOwnsAttributes, RTI::InvalidFederationTime, RTI::FederateInternalError )
	supplied C1
virtual void	reflectAttributeValues (RTI::ObjectHandle theObject, const RTI::AttributeHandleValuePairSet &theAttributes, const char *theTag) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::FederateOwnsAttributes, RTI::FederateInternalError)
	supplied C4
virtual void	receiveInteraction (RTI::InteractionClassHandle theInteraction, const RTI::ParameterHandleValuePairSet &theParameters, const RTI::FedTime &theTime, const char *theTag, RTI::EventRetractionHandle theHandle) throw ( RTI::InteractionClassNotKnown, RTI::InteractionParameterNotKnown, RTI::InvalidFederationTime, RTI::FederateInternalError )
	4.6
virtual void	receiveInteraction (RTI::InteractionClassHandle theInteraction, const RTI::ParameterHandleValuePairSet &theParameters, const char *theTag) throw ( RTI::InteractionClassNotKnown, RTI::InteractionParameterNotKnown, RTI::FederateInternalError )
	supplied C4
virtual void	removeObjectInstance (RTI::ObjectHandle theObject, const RTI::FedTime &theTime, const char *theTag, RTI::EventRetractionHandle theHandle) throw ( RTI::ObjectNotKnown, RTI::InvalidFederationTime, RTI::FederateInternalError )
	supplied C1
virtual void	removeObjectInstance (RTI::ObjectHandle theObject, const char *theTag) throw ( RTI::ObjectNotKnown, RTI::FederateInternalError )
	supplied C4
virtual void	attributesInScope (RTI::ObjectHandle theObject, const RTI::AttributeHandleSet &theAttributes) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::FederateInternalError)
	supplied C4
virtual void	attributesOutOfScope (RTI::ObjectHandle theObject, const RTI::AttributeHandleSet &theAttributes) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::FederateInternalError)
	supplied C4
virtual void	provideAttributeValueUpdate (RTI::ObjectHandle theObject, const RTI::AttributeHandleSet &theAttributes) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::AttributeNotOwned, RTI::FederateInternalError )
	supplied C4
virtual void	turnUpdatesOnForObjectInstance (RTI::ObjectHandle theObject, const RTI::AttributeHandleSet &theAttributes) throw ( RTI::ObjectNotKnown, RTI::AttributeNotOwned, RTI::FederateInternalError )
	supplied C4
virtual void	turnUpdatesOffForObjectInstance (RTI::ObjectHandle theObject, const RTI::AttributeHandleSet &theAttributes) throw ( RTI::ObjectNotKnown, RTI::AttributeNotOwned, RTI::FederateInternalError )
	supplied C4
virtual void	requestAttributeOwnershipAssumption (RTI::ObjectHandle theObject, const RTI::AttributeHandleSet &offeredAttributes, const char *theTag) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::AttributeAlreadyOwned, RTI::AttributeNotPublished, RTI::FederateInternalError )
	Ownership Management Services.
virtual void	attributeOwnershipDivestitureNotification (RTI::ObjectHandle theObject, const RTI::AttributeHandleSet &releasedAttributes) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::AttributeNotOwned, RTI::AttributeDivestitureWasNotRequested, RTI::FederateInternalError )
	supplied C4
virtual void	attributeOwnershipAcquisitionNotification (RTI::ObjectHandle theObject, const RTI::AttributeHandleSet &securedAttributes) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::AttributeAcquisitionWasNotRequested, RTI::AttributeAlreadyOwned, RTI::AttributeNotPublished, RTI::FederateInternalError )
	supplied C4
virtual void	attributeOwnershipUnavailable (RTI::ObjectHandle theObject, const RTI::AttributeHandleSet &theAttributes) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::AttributeAlreadyOwned, RTI::AttributeAcquisitionWasNotRequested, RTI::FederateInternalError )
	supplied C4
virtual void	requestAttributeOwnershipRelease (RTI::ObjectHandle theObject, const RTI::AttributeHandleSet &candidateAttributes, const char *theTag) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::AttributeNotOwned, RTI::FederateInternalError )
	supplied C4
virtual void	confirmAttributeOwnershipAcquisitionCancellation (RTI::ObjectHandle theObject, const RTI::AttributeHandleSet &theAttributes) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::AttributeAlreadyOwned, RTI::AttributeAcquisitionWasNotCanceled, RTI::FederateInternalError )
	supplied C4
virtual void	informAttributeOwnership (RTI::ObjectHandle theObject, RTI::AttributeHandle theAttribute, RTI::FederateHandle theOwner) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::FederateInternalError )
	supplied C1
virtual void	attributeIsNotOwned (RTI::ObjectHandle theObject, RTI::AttributeHandle theAttribute) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::FederateInternalError )
	supplied C1
virtual void	attributeOwnedByRTI (RTI::ObjectHandle theObject, RTI::AttributeHandle theAttribute) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::FederateInternalError)
	supplied C1
virtual void	synchronizationPointRegistrationSucceeded (const char *label) throw ( RTI::FederateInternalError )
	sync points
virtual void	synchronizationPointRegistrationFailed (const char *label) throw ( RTI::FederateInternalError )
virtual void	federationSynchronized (const char *label) throw ( RTI::FederateInternalError )
virtual void	announceSynchronizationPoint (const char *label, const char *tag) throw ( RTI::FederateInternalError )
virtual void	addSynchPointRegSucceededCb (const DtString &label, DtSynchPointCb func, void *usr)
	Methods to add/remove user callbacks for sync point callbacks.
virtual void	addSynchPointRegSucceededCb (DtSynchPointCb func, void *usr)
virtual void	removeSynchPointRegSucceededCb (const DtString &label, DtSynchPointCb func, void *usr)
virtual void	removeSynchPointRegSucceededCb (DtSynchPointCb func, void *usr)
virtual void	addSynchPointRegFailedCb (const DtString &label, DtSynchPointCb func, void *usr)
virtual void	addSynchPointRegFailedCb (DtSynchPointCb func, void *usr)
virtual void	removeSynchPointRegFailedCb (const DtString &label, DtSynchPointCb func, void *usr)
virtual void	removeSynchPointRegFailedCb (DtSynchPointCb func, void *usr)
virtual void	addFederationSynchedCb (const DtString &label, DtSynchPointCb func, void *usr)
virtual void	addFederationSynchedCb (DtSynchPointCb func, void *usr)
virtual void	removeFederationSynchedCb (const DtString &label, DtSynchPointCb func, void *usr)
virtual void	removeFederationSynchedCb (DtSynchPointCb func, void *usr)
virtual void	addAnnounceSynchPointCb (const DtString &label, DtAnnounceSynchPointCb func, void *usr)
virtual void	addAnnounceSynchPointCb (DtAnnounceSynchPointCb func, void *usr)
virtual void	removeAnnounceSynchPointCb (const DtString &label, DtAnnounceSynchPointCb func, void *usr)
virtual void	removeAnnounceSynchPointCb (DtAnnounceSynchPointCb func, void *usr)
Static Public Member Functions
static DtVrlFederateAmbassador *	create ()
	returns a new DtVrlFedAmbassador
Protected Member Functions
	DtVrlFederateAmbassador (const DtVrlFederateAmbassador &src)
	copy constructor - not implemented.
DtVrlFederateAmbassador &	operator= (const DtVrlFederateAmbassador &src)
	assignment operator - not implemented.
virtual const RTI::Region *	getRegionFromAttributes (const RTI::AttributeHandleValuePairSet &theAttributes) const
virtual const RTI::Region *	getRegionFromParameters (const RTI::ParameterHandleValuePairSet &theAttributes) const
virtual void	processAttributesOutOfScope (RTI::ObjectHandle handle)
virtual void	applyFedsSynchedCallbacks (const char *label)
	Utility functions.
virtual void	applyRegistrationSucceededCallbacks (const char *label)
virtual void	applyRegistrationFailedCallbacks (const char *label)
virtual bool	applyAnnounceCallbacks (const char *label, const char *tag)
	Return true if any are applied (i.e., don't auto-reply)
Static Protected Member Functions
static void	attributesOutOfScopeCb (void *usr)
Protected Attributes
DtExerciseConn *	myExConn
DtInteractionManager *	myInteractionManager
DtHlaObjectManager *	myHlaObjectManager
DtReflectAttributeValuesCbList	myRavCbList
DtUpdatesOnCbList	myUpdatesOnCbList
DtUpdatesOffCbList	myUpdatesOffCbList
DtStartRegCbList	myStartRegCbList
DtStopRegCbList	myStopRegCbList
DtStartStopInterCbList	myStartIntCbList
DtStartStopInterCbList	myStopIntCbList
DtFedTimeCbList	myTimeAdvanceGrantCbList
DtFedTimeCbList	myRegulationEnabledCbList
DtFedTimeCbList	myConstrainedEnabledCbList
std::list < DtLabelledSynchPointCbInfo >	myLabSynchPtRegSucceededCbList
	Lists for specific callbacks registered with VR-Link.
std::list < DtLabelledSynchPointCbInfo >	myLabSynchPtRegFailedCbList
std::list < DtLabelledSynchPointCbInfo >	myLabFederationSynchedCbList
std::list < DtLabelledAnnounceCbInfo >	myLabAnnounceSynchPointCbList
std::list < DtGeneralSynchPointCbInfo >	mySynchPtRegSucceededCbList
std::list < DtGeneralSynchPointCbInfo >	mySynchPtRegFailedCbList
std::list < DtGeneralSynchPointCbInfo >	myFederationSynchedCbList
std::list < DtGeneralAnnounceCbInfo >	myAnnounceSynchPointCbList
bool	myRemoveObjectOnAttOutOfScope

---

Constructor & Destructor Documentation

DtVrlFederateAmbassador::DtVrlFederateAmbassador

(

)

default constructor

virtual DtVrlFederateAmbassador::~DtVrlFederateAmbassador

(

)

throw ( RTI::FederateInternalError ) [virtual]

destructor

DtVrlFederateAmbassador::DtVrlFederateAmbassador

(

const DtVrlFederateAmbassador &

src

)

[protected]

copy constructor - not implemented.

---

Member Function Documentation

virtual void DtVrlFederateAmbassador::addAnnounceSynchPointCb	(	const DtString &	label,
		DtAnnounceSynchPointCb	func,
		void *	usr
	)		[virtual]

virtual void DtVrlFederateAmbassador::addAnnounceSynchPointCb	(	DtAnnounceSynchPointCb	func,
		void *	usr
	)		[virtual]

virtual void DtVrlFederateAmbassador::addDiscoverObjectCb	(	RTI::ObjectClassHandle	hand,
		DtDiscoverObjectCb	cb,
		void *	usr
	)		[virtual]

Add/Remove (register/deregister) function to be called when the RTI's discoverObject service is invoked.

virtual void DtVrlFederateAmbassador::addFederationSynchedCb	(	const DtString &	label,
		DtSynchPointCb	func,
		void *	usr
	)		[virtual]

virtual void DtVrlFederateAmbassador::addFederationSynchedCb	(	DtSynchPointCb	func,
		void *	usr
	)		[virtual]

virtual void DtVrlFederateAmbassador::addReceiveInteractionCb	(	RTI::InteractionClassHandle	hand,
		DtReceiveInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = DtDDMRegionSP()
	)		[virtual]

Add/Remove (register/deregister) function to be called when the RTI's receiveInteraction service is invoked.

virtual void DtVrlFederateAmbassador::addReflectAttributeValuesCb	(	RTI::ObjectHandle	id,
		DtReflectAttributeValuesCb	cb,
		void *	usr
	)		[virtual]

Add/Remove (register/deregister) function to be called when the RTI's reflectAttributeValues service is invoked.

virtual void DtVrlFederateAmbassador::addRemoveObjectCb	(	RTI::ObjectHandle	id,
		DtRemoveObjectCb	cb,
		void *	usr
	)		[virtual]

Add/Remove (register/deregister) function to be called when the RTI's removeObject service is invoked.

virtual void DtVrlFederateAmbassador::addStartInteractionsCb	(	RTI::InteractionClassHandle	hand,
		DtStartStopInterCb	cb,
		void *	usr
	)		[virtual]

Add/Remove (register/deregister) function to be called when the RTI's startInteractionGeneration service is invoked.

virtual void DtVrlFederateAmbassador::addStartRegCb	(	RTI::ObjectClassHandle	hand,
		DtStartRegCb	cb,
		void *	usr
	)		[virtual]

Add/Remove (register/deregister) function to be called when the RTI's startRegistration service is invoked.

virtual void DtVrlFederateAmbassador::addStopInteractionsCb	(	RTI::InteractionClassHandle	hand,
		DtStartStopInterCb	cb,
		void *	usr
	)		[virtual]

Add/Remove (register/deregister) function to be called when the RTI's stopInteractionGeneration service is invoked.

virtual void DtVrlFederateAmbassador::addStopRegCb	(	RTI::ObjectClassHandle	hand,
		DtStopRegCb	cb,
		void *	usr
	)		[virtual]

Add/Remove (register/deregister) function to be called when the RTI's stopReg service is invoked.

virtual void DtVrlFederateAmbassador::addSynchPointRegFailedCb	(	const DtString &	label,
		DtSynchPointCb	func,
		void *	usr
	)		[virtual]

virtual void DtVrlFederateAmbassador::addSynchPointRegFailedCb	(	DtSynchPointCb	func,
		void *	usr
	)		[virtual]

virtual void DtVrlFederateAmbassador::addSynchPointRegSucceededCb	(	const DtString &	label,
		DtSynchPointCb	func,
		void *	usr
	)		[virtual]

Methods to add/remove user callbacks for sync point callbacks.

virtual void DtVrlFederateAmbassador::addSynchPointRegSucceededCb	(	DtSynchPointCb	func,
		void *	usr
	)		[virtual]

virtual void DtVrlFederateAmbassador::addTimeAdvanceGrantCb	(	DtFedTimeCb	cb,
		void *	usr
	)		[virtual]

Add/Remove (register/deregister) function to be called when the RTI's TimeAdvanceGrant service is invoked.

virtual void DtVrlFederateAmbassador::addTimeConstrainedEnabledCb	(	DtFedTimeCb	cb,
		void *	usr
	)		[virtual]

Add/Remove (register/deregister) function to be called when the RTI's TimeConstrainedEnabled service is invoked.

virtual void DtVrlFederateAmbassador::addTimeRegulationEnabledCb	(	DtFedTimeCb	cb,
		void *	usr
	)		[virtual]

Add/Remove (register/deregister) function to be called when the RTI's TimeRegulationEnabled service is invoked.

virtual void DtVrlFederateAmbassador::addUpdatesOffCb	(	RTI::ObjectHandle	hand,
		DtUpdatesOffCb	cb,
		void *	usr
	)		[virtual]

Add/Remove (register/deregister) function to be called when the RTI's turnUpdatesOff service is invoked.

virtual void DtVrlFederateAmbassador::addUpdatesOnCb	(	RTI::ObjectHandle	hand,
		DtUpdatesOnCb	cb,
		void *	usr
	)		[virtual]

Add/Remove (register/deregister) function to be called when the RTI's turnUpdatesOn service is invoked.

virtual void DtVrlFederateAmbassador::announceSynchronizationPoint	(	const char *	label,
		const char *	tag
	)		throw ( RTI::FederateInternalError ) [virtual]

Reimplemented from DtNullFederateAmbassador.

virtual bool DtVrlFederateAmbassador::applyAnnounceCallbacks	(	const char *	label,
		const char *	tag
	)		[protected, virtual]

Return true if any are applied (i.e., don't auto-reply)

virtual void DtVrlFederateAmbassador::applyFedsSynchedCallbacks

(

const char *

label

)

[protected, virtual]

Utility functions.

virtual void DtVrlFederateAmbassador::applyRegistrationFailedCallbacks

(

const char *

label

)

[protected, virtual]

virtual void DtVrlFederateAmbassador::applyRegistrationSucceededCallbacks

(

const char *

label

)

[protected, virtual]

virtual void DtVrlFederateAmbassador::attributeIsNotOwned	(	RTI::ObjectHandle	theObject,
		RTI::AttributeHandle	theAttribute
	)		throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::FederateInternalError ) [virtual]

supplied C1

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::attributeOwnedByRTI	(	RTI::ObjectHandle	theObject,
		RTI::AttributeHandle	theAttribute
	)		throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::FederateInternalError) [virtual]

supplied C1

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::attributeOwnershipAcquisitionNotification	(	RTI::ObjectHandle	theObject,
		const RTI::AttributeHandleSet &	securedAttributes
	)		throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::AttributeAcquisitionWasNotRequested, RTI::AttributeAlreadyOwned, RTI::AttributeNotPublished, RTI::FederateInternalError ) [virtual]

supplied C4

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::attributeOwnershipDivestitureNotification	(	RTI::ObjectHandle	theObject,
		const RTI::AttributeHandleSet &	releasedAttributes
	)		throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::AttributeNotOwned, RTI::AttributeDivestitureWasNotRequested, RTI::FederateInternalError ) [virtual]

supplied C4

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::attributeOwnershipUnavailable	(	RTI::ObjectHandle	theObject,
		const RTI::AttributeHandleSet &	theAttributes
	)		throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::AttributeAlreadyOwned, RTI::AttributeAcquisitionWasNotRequested, RTI::FederateInternalError ) [virtual]

supplied C4

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::attributesInScope	(	RTI::ObjectHandle	theObject,
		const RTI::AttributeHandleSet &	theAttributes
	)		throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::FederateInternalError) [virtual]

supplied C4

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::attributesOutOfScope	(	RTI::ObjectHandle	theObject,
		const RTI::AttributeHandleSet &	theAttributes
	)		throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::FederateInternalError) [virtual]

supplied C4

Reimplemented from DtNullFederateAmbassador.

static void DtVrlFederateAmbassador::attributesOutOfScopeCb

(

void *

usr

)

[static, protected]

virtual void DtVrlFederateAmbassador::confirmAttributeOwnershipAcquisitionCancellation	(	RTI::ObjectHandle	theObject,
		const RTI::AttributeHandleSet &	theAttributes
	)		throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::AttributeAlreadyOwned, RTI::AttributeAcquisitionWasNotCanceled, RTI::FederateInternalError ) [virtual]

supplied C4

Reimplemented from DtNullFederateAmbassador.

static DtVrlFederateAmbassador* DtVrlFederateAmbassador::create

(

)

[static]

returns a new DtVrlFedAmbassador

Reimplemented in DtDdmFederateAmbassador.

virtual void DtVrlFederateAmbassador::discoverObjectInstance	(	RTI::ObjectHandle	theObject,
		RTI::ObjectClassHandle	theObjectClass,
		const char *	theObjectName
	)		throw ( RTI::CouldNotDiscover, RTI::ObjectClassNotKnown, RTI::FederateInternalError ) [virtual]

! Object Management Services //!

supplied C4

Reimplemented from DtNullFederateAmbassador.

Reimplemented in DtDdmFederateAmbassador.

virtual void DtVrlFederateAmbassador::federationSynchronized

(

const char *

label

)

throw ( RTI::FederateInternalError ) [virtual]

Reimplemented from DtNullFederateAmbassador.

virtual const RTI::Region* DtVrlFederateAmbassador::getRegionFromAttributes

(

const RTI::AttributeHandleValuePairSet &

theAttributes

)

const [protected, virtual]

virtual const RTI::Region* DtVrlFederateAmbassador::getRegionFromParameters

(

const RTI::ParameterHandleValuePairSet &

theAttributes

)

const [protected, virtual]

virtual void DtVrlFederateAmbassador::informAttributeOwnership	(	RTI::ObjectHandle	theObject,
		RTI::AttributeHandle	theAttribute,
		RTI::FederateHandle	theOwner
	)		throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::FederateInternalError ) [virtual]

supplied C1

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::init	(	DtExerciseConn *	exConn,
		DtHlaObjectManager *	hlaObjMgr,
		DtInteractionManager *	interMgr
	)		[virtual]

Initialize the ambassador.

Needs to be called after construction.

DtVrlFederateAmbassador& DtVrlFederateAmbassador::operator=

(

const DtVrlFederateAmbassador &

src

)

[protected]

assignment operator - not implemented.

virtual void DtVrlFederateAmbassador::processAttributesOutOfScope

(

RTI::ObjectHandle

handle

)

[protected, virtual]

virtual void DtVrlFederateAmbassador::provideAttributeValueUpdate	(	RTI::ObjectHandle	theObject,
		const RTI::AttributeHandleSet &	theAttributes
	)		throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::AttributeNotOwned, RTI::FederateInternalError ) [virtual]

supplied C4

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::receiveInteraction	(	RTI::InteractionClassHandle	theInteraction,
		const RTI::ParameterHandleValuePairSet &	theParameters,
		const RTI::FedTime &	theTime,
		const char *	theTag,
		RTI::EventRetractionHandle	theHandle
	)		throw ( RTI::InteractionClassNotKnown, RTI::InteractionParameterNotKnown, RTI::InvalidFederationTime, RTI::FederateInternalError ) [virtual]

4.6

supplied C1

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::receiveInteraction	(	RTI::InteractionClassHandle	theInteraction,
		const RTI::ParameterHandleValuePairSet &	theParameters,
		const char *	theTag
	)		throw ( RTI::InteractionClassNotKnown, RTI::InteractionParameterNotKnown, RTI::FederateInternalError ) [virtual]

supplied C4

Reimplemented from DtNullFederateAmbassador.

Reimplemented in DtDdmFederateAmbassador.

virtual void DtVrlFederateAmbassador::reflectAttributeValues	(	RTI::ObjectHandle	theObject,
		const RTI::AttributeHandleValuePairSet &	theAttributes,
		const RTI::FedTime &	theTime,
		const char *	theTag,
		RTI::EventRetractionHandle	theHandle
	)		throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::FederateOwnsAttributes, RTI::InvalidFederationTime, RTI::FederateInternalError ) [virtual]

supplied C1

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::reflectAttributeValues	(	RTI::ObjectHandle	theObject,
		const RTI::AttributeHandleValuePairSet &	theAttributes,
		const char *	theTag
	)		throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::FederateOwnsAttributes, RTI::FederateInternalError) [virtual]

supplied C4

Reimplemented from DtNullFederateAmbassador.

Reimplemented in DtDdmFederateAmbassador.

virtual void DtVrlFederateAmbassador::removeAnnounceSynchPointCb	(	const DtString &	label,
		DtAnnounceSynchPointCb	func,
		void *	usr
	)		[virtual]

virtual void DtVrlFederateAmbassador::removeAnnounceSynchPointCb	(	DtAnnounceSynchPointCb	func,
		void *	usr
	)		[virtual]

virtual void DtVrlFederateAmbassador::removeDiscoverObjectCb	(	RTI::ObjectClassHandle	hand,
		DtDiscoverObjectCb	cb,
		void *	usr
	)		[virtual]

virtual void DtVrlFederateAmbassador::removeFederationSynchedCb	(	const DtString &	label,
		DtSynchPointCb	func,
		void *	usr
	)		[virtual]

virtual void DtVrlFederateAmbassador::removeFederationSynchedCb	(	DtSynchPointCb	func,
		void *	usr
	)		[virtual]

virtual void DtVrlFederateAmbassador::removeObjectInstance	(	RTI::ObjectHandle	theObject,
		const RTI::FedTime &	theTime,
		const char *	theTag,
		RTI::EventRetractionHandle	theHandle
	)		throw ( RTI::ObjectNotKnown, RTI::InvalidFederationTime, RTI::FederateInternalError ) [virtual]

supplied C1

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::removeObjectInstance	(	RTI::ObjectHandle	theObject,
		const char *	theTag
	)		throw ( RTI::ObjectNotKnown, RTI::FederateInternalError ) [virtual]

supplied C4

Reimplemented from DtNullFederateAmbassador.

Reimplemented in DtDdmFederateAmbassador.

virtual bool DtVrlFederateAmbassador::removeObjectOnAttOutOfScope

(

)

const [virtual]

virtual void DtVrlFederateAmbassador::removeReceiveInteractionCb	(	RTI::InteractionClassHandle	hand,
		DtReceiveInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = DtDDMRegionSP()
	)		[virtual]

virtual void DtVrlFederateAmbassador::removeReflectAttributeValuesCb	(	RTI::ObjectHandle	id,
		DtReflectAttributeValuesCb	cb,
		void *	usr
	)		[virtual]

virtual void DtVrlFederateAmbassador::removeRemoveObjectCb	(	RTI::ObjectHandle	id,
		DtRemoveObjectCb	cb,
		void *	usr
	)		[virtual]

virtual void DtVrlFederateAmbassador::removeStartInteractionsCb	(	RTI::InteractionClassHandle	hand,
		DtStartStopInterCb	cb,
		void *	usr
	)		[virtual]

virtual void DtVrlFederateAmbassador::removeStartRegCb	(	RTI::ObjectClassHandle	hand,
		DtStartRegCb	cb,
		void *	usr
	)		[virtual]

virtual void DtVrlFederateAmbassador::removeStopInteractionsCb	(	RTI::InteractionClassHandle	hand,
		DtStartStopInterCb	cb,
		void *	usr
	)		[virtual]

virtual void DtVrlFederateAmbassador::removeStopRegCb	(	RTI::ObjectClassHandle	hand,
		DtStopRegCb	cb,
		void *	usr
	)		[virtual]

virtual void DtVrlFederateAmbassador::removeSynchPointRegFailedCb	(	const DtString &	label,
		DtSynchPointCb	func,
		void *	usr
	)		[virtual]

virtual void DtVrlFederateAmbassador::removeSynchPointRegFailedCb	(	DtSynchPointCb	func,
		void *	usr
	)		[virtual]

virtual void DtVrlFederateAmbassador::removeSynchPointRegSucceededCb	(	const DtString &	label,
		DtSynchPointCb	func,
		void *	usr
	)		[virtual]

virtual void DtVrlFederateAmbassador::removeSynchPointRegSucceededCb	(	DtSynchPointCb	func,
		void *	usr
	)		[virtual]

virtual void DtVrlFederateAmbassador::removeTimeAdvanceGrantCb	(	DtFedTimeCb	cb,
		void *	usr
	)		[virtual]

virtual void DtVrlFederateAmbassador::removeTimeConstrainedEnabledCb	(	DtFedTimeCb	cb,
		void *	usr
	)		[virtual]

virtual void DtVrlFederateAmbassador::removeTimeRegulationEnabledCb	(	DtFedTimeCb	cb,
		void *	usr
	)		[virtual]

virtual void DtVrlFederateAmbassador::removeUpdatesOffCb	(	RTI::ObjectHandle	hand,
		DtUpdatesOffCb	cb,
		void *	usr
	)		[virtual]

virtual void DtVrlFederateAmbassador::removeUpdatesOnCb	(	RTI::ObjectHandle	hand,
		DtUpdatesOnCb	cb,
		void *	usr
	)		[virtual]

virtual void DtVrlFederateAmbassador::requestAttributeOwnershipAssumption	(	RTI::ObjectHandle	theObject,
		const RTI::AttributeHandleSet &	offeredAttributes,
		const char *	theTag
	)		throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::AttributeAlreadyOwned, RTI::AttributeNotPublished, RTI::FederateInternalError ) [virtual]

Ownership Management Services.

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::requestAttributeOwnershipRelease	(	RTI::ObjectHandle	theObject,
		const RTI::AttributeHandleSet &	candidateAttributes,
		const char *	theTag
	)		throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::AttributeNotOwned, RTI::FederateInternalError ) [virtual]

supplied C4

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::setRemoveObjectOnAttOutOfScope

(

bool

remove

)

[virtual]

virtual void DtVrlFederateAmbassador::startRegistrationForObjectClass

(

RTI::ObjectClassHandle

theClass

)

throw ( RTI::ObjectClassNotPublished, RTI::FederateInternalError ) [virtual]

! Declaration Management Services //!

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::stopRegistrationForObjectClass

(

RTI::ObjectClassHandle

theClass

)

throw ( RTI::ObjectClassNotPublished, RTI::FederateInternalError ) [virtual]

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::synchronizationPointRegistrationFailed

(

const char *

label

)

throw ( RTI::FederateInternalError ) [virtual]

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::synchronizationPointRegistrationSucceeded

(

const char *

label

)

throw ( RTI::FederateInternalError ) [virtual]

sync points

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::timeAdvanceGrant

(

const RTI::FedTime &

theTime

)

throw ( RTI::InvalidFederationTime, RTI::TimeAdvanceWasNotInProgress, RTI::FederateInternalError ) [virtual]

The functions below should probably be protected, but they need to be called by various VR-Link classes to implement the setReflecting() idea, when reflectingThroughRti is true.

Other users should not call these functions directly. Overridden versions of RTI service calls.

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::timeConstrainedEnabled

(

const RTI::FedTime &

theTime

)

throw ( RTI::InvalidFederationTime, RTI::EnableTimeConstrainedWasNotPending, RTI::FederateInternalError ) [virtual]

supplied C4

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::timeRegulationEnabled

(

const RTI::FedTime &

theTime

)

throw ( RTI::InvalidFederationTime, RTI::EnableTimeRegulationWasNotPending, RTI::FederateInternalError ) [virtual]

! Time Management Services //!

supplied C4

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::turnInteractionsOff

(

RTI::InteractionClassHandle

theHandle

)

throw ( RTI::InteractionClassNotPublished, RTI::FederateInternalError ) [virtual]

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::turnInteractionsOn

(

RTI::InteractionClassHandle

theHandle

)

throw ( RTI::InteractionClassNotPublished, RTI::FederateInternalError ) [virtual]

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::turnUpdatesOffForObjectInstance	(	RTI::ObjectHandle	theObject,
		const RTI::AttributeHandleSet &	theAttributes
	)		throw ( RTI::ObjectNotKnown, RTI::AttributeNotOwned, RTI::FederateInternalError ) [virtual]

supplied C4

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::turnUpdatesOnForObjectInstance	(	RTI::ObjectHandle	theObject,
		const RTI::AttributeHandleSet &	theAttributes
	)		throw ( RTI::ObjectNotKnown, RTI::AttributeNotOwned, RTI::FederateInternalError ) [virtual]

supplied C4

Reimplemented from DtNullFederateAmbassador.

---

Member Data Documentation

std::list<DtGeneralAnnounceCbInfo> DtVrlFederateAmbassador::myAnnounceSynchPointCbList [protected]

DtFedTimeCbList DtVrlFederateAmbassador::myConstrainedEnabledCbList [protected]

DtExerciseConn* DtVrlFederateAmbassador::myExConn [protected]

std::list<DtGeneralSynchPointCbInfo> DtVrlFederateAmbassador::myFederationSynchedCbList [protected]

DtHlaObjectManager* DtVrlFederateAmbassador::myHlaObjectManager [protected]

DtInteractionManager* DtVrlFederateAmbassador::myInteractionManager [protected]

std::list<DtLabelledAnnounceCbInfo> DtVrlFederateAmbassador::myLabAnnounceSynchPointCbList [protected]

std::list<DtLabelledSynchPointCbInfo> DtVrlFederateAmbassador::myLabFederationSynchedCbList [protected]

std::list<DtLabelledSynchPointCbInfo> DtVrlFederateAmbassador::myLabSynchPtRegFailedCbList [protected]

std::list<DtLabelledSynchPointCbInfo> DtVrlFederateAmbassador::myLabSynchPtRegSucceededCbList [protected]

Lists for specific callbacks registered with VR-Link.

DtReflectAttributeValuesCbList DtVrlFederateAmbassador::myRavCbList [protected]

DtFedTimeCbList DtVrlFederateAmbassador::myRegulationEnabledCbList [protected]

bool DtVrlFederateAmbassador::myRemoveObjectOnAttOutOfScope [protected]

DtStartStopInterCbList DtVrlFederateAmbassador::myStartIntCbList [protected]

DtStartRegCbList DtVrlFederateAmbassador::myStartRegCbList [protected]

DtStartStopInterCbList DtVrlFederateAmbassador::myStopIntCbList [protected]

DtStopRegCbList DtVrlFederateAmbassador::myStopRegCbList [protected]

std::list<DtGeneralSynchPointCbInfo> DtVrlFederateAmbassador::mySynchPtRegFailedCbList [protected]

std::list<DtGeneralSynchPointCbInfo> DtVrlFederateAmbassador::mySynchPtRegSucceededCbList [protected]

DtFedTimeCbList DtVrlFederateAmbassador::myTimeAdvanceGrantCbList [protected]

DtUpdatesOffCbList DtVrlFederateAmbassador::myUpdatesOffCbList [protected]

DtUpdatesOnCbList DtVrlFederateAmbassador::myUpdatesOnCbList [protected]

---

The documentation for this class was generated from the following file:

• vrlFedAmb13.h
