VR-Link API Documentation for HLA 1516
|
class DtBaseEmbeddedSystemDecoder: More...

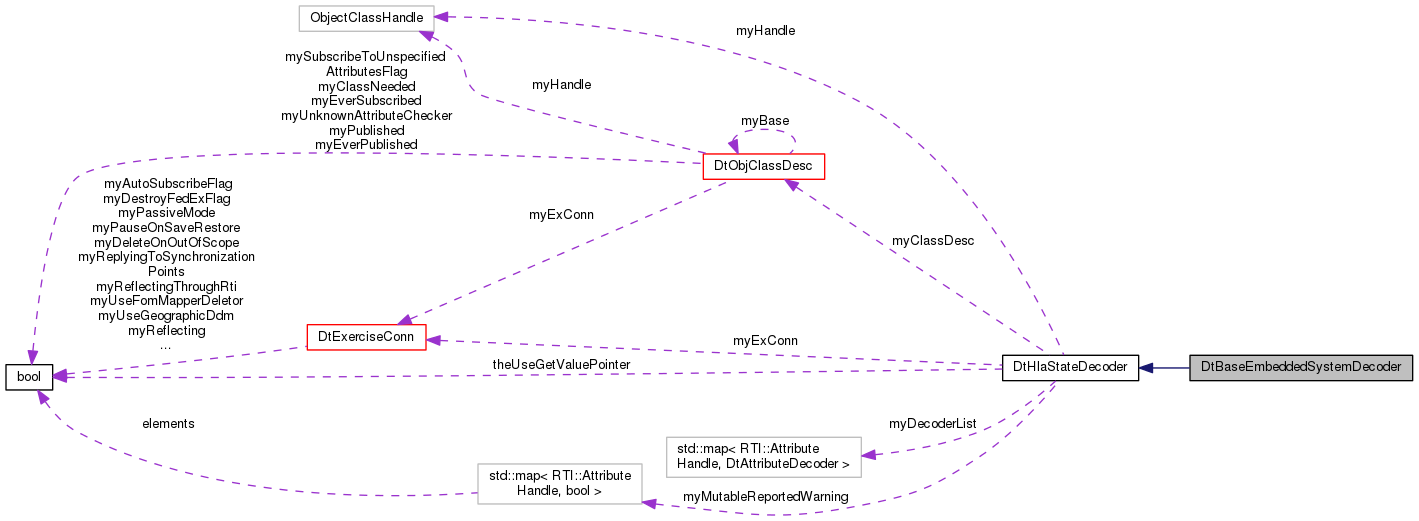

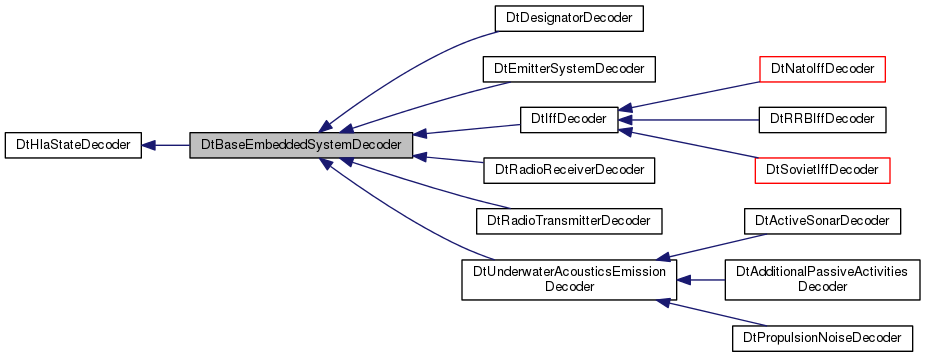

Inheritance diagram for DtBaseEmbeddedSystemDecoder: Collaboration diagram for DtBaseEmbeddedSystemDecoder:Public Member Functions | |
| DtBaseEmbeddedSystemDecoder (DtExerciseConn *exConn, DtObjClassDesc *classDesc) | |
| default constructor More... | |
| virtual | ~DtBaseEmbeddedSystemDecoder () |
| destructor More... | |
| DtBaseEmbeddedSystemDecoder (const DtBaseEmbeddedSystemDecoder &orig) | |
| copy constructor More... | |
| DtBaseEmbeddedSystemDecoder & | operator= (const DtBaseEmbeddedSystemDecoder &orig) |
| assignment operator More... | |
| Public Member Functions inherited from DtHlaStateDecoder | |
| DtHlaStateDecoder (DtExerciseConn *exConn, DtObjClassDesc *classDesc) | |
| constructor More... | |
| virtual | ~DtHlaStateDecoder () |
| destructor More... | |
| DtHlaStateDecoder (const DtHlaStateDecoder &orig) | |
| copy constructor More... | |
| DtHlaStateDecoder & | operator= (const DtHlaStateDecoder &orig) |
| assignment operator More... | |
| DtAttributeDecoder | addDecoder (RTI::AttributeHandle h, DtAttributeDecoder func) |
| Add/Remove a decoding function for the attribute specified by handle. More... | |
| DtAttributeDecoder | removeDecoder (RTI::AttributeHandle h) |
| DtAttributeDecoder | addDecoder (char *attrName, DtAttributeDecoder func, bool complain=true) |
| Add/Remove a decoding function for the attribute specified by name. More... | |
| DtAttributeDecoder | removeDecoder (char *attrName, bool complain=true) |
| virtual DtAttributeDecoder | decoder (const RTI::AttributeHandle &handle) const |
| Get the attribute decoder for the specified handle. More... | |
| virtual void | decode (const DtStateMsg &msg, DtStateRepository *stateRep) const |
| Decode the state message into the state repository. More... | |
| virtual RTI::ObjectClassHandle | objectClassHandle () const |
| Get the object's class handle. More... | |
| virtual DtHlaStateDecoder * | clone () const |
| Returns a new-ed clone of this object. More... | |
| virtual DtHlaStateDecoder * | clone (DtObjClassDesc *classDesc) const |
| Returns a new-ed clone of this object which corresponds to the class description classDesc. More... | |
Static Public Member Functions | |
| static DtHlaStateDecoder * | create (DtExerciseConn *exConn, DtObjClassDesc *classDesc) |
| Create a DtBaseEntityDecoder. Caller is responsible for deletion. More... | |
| Static Public Member Functions inherited from DtHlaStateDecoder | |
| static char * | decodingBuffer (int length) |
| Returns a pointer to a buffer that can be used to copy data obtained from a phvps. More... | |
| static char * | attributeData (const RTI::AttributeHandleValuePairSet &attrs, int index, RTI::ULong &length) |
| Returns a pointer to the attribute data. More... | |
| static char * | attributeData (const RTI::AttributeHandleValuePairSet &attrs, int index, RTI::ULong &length, unsigned int expectedDataSize, char *attrName) |
| Gets the attribute data and checks the expected size. More... | |
| static DtNetEventId * | eventIdAttributeData (const RTI::AttributeHandleValuePairSet &attrs, int index) |
| Get the attribute data as a DtNetEventId (adds defensive null terminator) Returns a pointer to the attribute data. More... | |
| static std::wstring | wideStringFromHlaUnicodeString (char *buffer, int size, bool *error=nullptr) |
| Gets data from an incoming buffer as a HlaUnicodeString and decodes it as a wide string. More... | |
| static bool | getVectorFromArrayOfUuid (char *buffer, int size, std::vector< DtVrlUuid > &uuids) |
| Gets data from an incoming buffer as an ArrayOfUuid and decodes it as a vector of type DtVrlUuid. More... | |
Protected Member Functions | |
| void | addMyDecoders () |
| Add decoding functions for the attributes. More... | |
| DtDECLARE_EMBEDSYS_ATTR_DECODER (RelativePosition) | |
| Static decode<AttributeName> member functions. More... | |
| DtDECLARE_EMBEDSYS_ATTR_DECODER (EntityID) | |
| For versions <= 0.8. More... | |
| DtDECLARE_EMBEDSYS_ATTR_DECODER (HostObjectID) | |
| DtDECLARE_EMBEDSYS_ATTR_DECODER (EntityIdentifier) | |
| For versions > 0.8. More... | |
| DtDECLARE_EMBEDSYS_ATTR_DECODER (HostObjectIdentifier) | |
| Protected Member Functions inherited from DtHlaStateDecoder | |
| virtual void | decodeAttribute (DtStateRepository *stateRep, const RTI::AttributeHandleValuePairSet &attrs, unsigned long pairSetIndex) const |
| Decode the attribute at the specified index in the attribute handle pair set. More... | |
| virtual void | copyDecFuncs (const DtHlaStateDecoder &orig) |
Additional Inherited Members | |
| Public Types inherited from DtHlaStateDecoder | |
| typedef void(* | DtAttributeDecoder )(DtStateRepository *stateRep, const RTI::AttributeHandleValuePairSet &avlist, unsigned long pairSetIndex) |
| Attribute decoding function declaration. More... | |
| Static Public Attributes inherited from DtHlaStateDecoder | |
| static bool | theUseGetValuePointer |
| Protected Types inherited from DtHlaStateDecoder | |
| typedef std::map < RTI::AttributeHandle, DtAttributeDecoder > | AttributeHandleDecoderMap |
| typedef std::map < RTI::AttributeHandle, bool > | AttributeHandleBoolMap |
| Protected Attributes inherited from DtHlaStateDecoder | |
| DtExerciseConn * | myExConn |
| DtObjClassDesc * | myClassDesc |
| RTI::ObjectClassHandle | myHandle |
| AttributeHandleDecoderMap | myDecoderList |
| myDecoderList is a map of decoders for each attribute registered to this state. More... | |
class DtBaseEmbeddedSystemDecoder:
Instances of DtBaseEmbeddedSystemDecoder are used to decode a base embedded system state message into a state repository in an HLA (as opposed to DIS) environment.
| DtBaseEmbeddedSystemDecoder::DtBaseEmbeddedSystemDecoder | ( | DtExerciseConn * | exConn, |
| DtObjClassDesc * | classDesc | ||
| ) |
default constructor
|
virtual |
destructor
| DtBaseEmbeddedSystemDecoder::DtBaseEmbeddedSystemDecoder | ( | const DtBaseEmbeddedSystemDecoder & | orig | ) |
copy constructor
|
protected |
Add decoding functions for the attributes.
Note: Non-virtual since meant to be called from constructors to add decoders.
|
static |
Create a DtBaseEntityDecoder. Caller is responsible for deletion.
|
protected |
Static decode<AttributeName> member functions.
|
protected |
For versions <= 0.8.
|
protected |
|
protected |
For versions > 0.8.
|
protected |
| DtBaseEmbeddedSystemDecoder& DtBaseEmbeddedSystemDecoder::operator= | ( | const DtBaseEmbeddedSystemDecoder & | orig | ) |
assignment operator
