Instances of DtInteractionDecoder are used to decode interactions from the network. More...

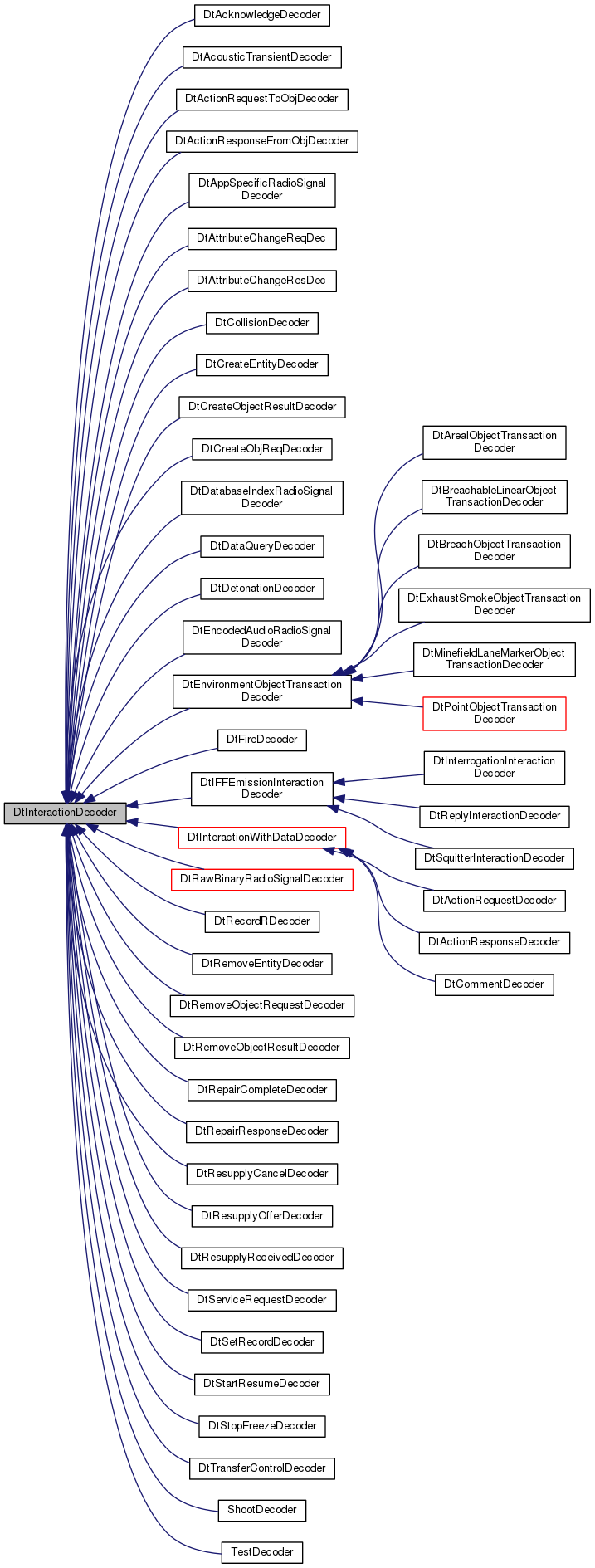

Inheritance diagram for DtInteractionDecoder:

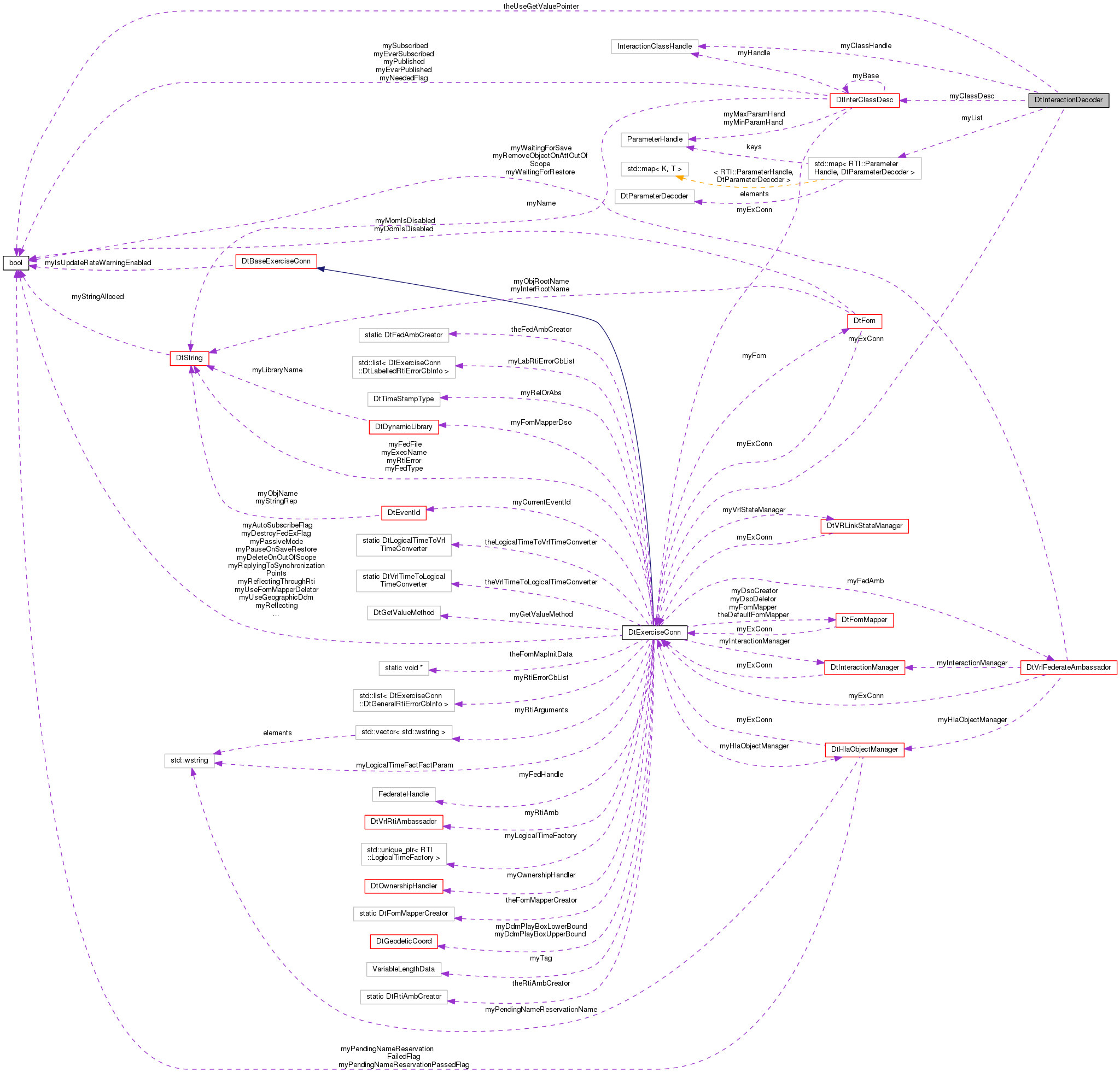

Collaboration diagram for DtInteractionDecoder:

Public Types
typedef void(*	DtParameterDecoder )(DtInteractionRep *inter, const RTI::ParameterHandleValuePairSet &pvlist, int i)
	Parameter decoder function signature. More...

Public Member Functions
	DtInteractionDecoder (DtExerciseConn exConn, DtInterClassDesc classDesc)
	constructor More...

virtual	~DtInteractionDecoder ()
	destructor More...

DtParameterDecoder	addDecoder (RTI::ParameterHandle handle, DtParameterDecoder proc)
	Add/Remove a decoding function for the parameter specified by handle. More...

DtParameterDecoder	addDecoder (char *name, DtParameterDecoder proc)
	Add/Remove a decoding function for the parameter specified by name. More...

virtual DtParameterDecoder	decoder (RTI::ParameterHandle handle) const
	Get the parameter decoder for the specified handle. More...

virtual void	decode (DtInteractionRep *interaction, const RTI::ParameterHandleValueMap &pvMap)
	Decode the interaction. More...

virtual RTI::InteractionClassHandle	interactionClassHandle ()
	Get the interaction's class handle. More...

virtual DtInteractionDecoder *	clone () const
	Returns a new-ed clone of this object. More...

virtual DtInteractionDecoder *	clone (DtInterClassDesc *interDesc) const
	Returns a new-ed clone of this object which corresponds to the inter description interDesc. More...

Static Public Member Functions
static char *	decodingBuffer (int length)
	Returns a pointer to a buffer that can be used to copy data obtained from a phvps. More...

static char *	parameterData (const RTI::ParameterHandleValuePairSet &pvList, int index, RTI::ULong &length)
	Returns a pointer to a buffer containing the parameter data. More...

static char *	parameterData (const RTI::ParameterHandleValuePairSet &pvList, int index, RTI::ULong &length, unsigned int expectedDataSize, const char *paramName)
	Gets the parameter data and checks the expected size. More...

static DtNetEventId *	eventIdParameterData (const RTI::ParameterHandleValuePairSet &params, int index)
	Get the parameter data as a DtNetEventId (adds defensive null terminator) Returns a pointer to the parameter data. More...

static void	decodeGenericParameter (DtInteractionWithEncDec *inter, const RTI::ParameterHandleValuePairSet &pvlist, int i)
	Generic decoder class. More...

Static Public Attributes
static bool	theUseGetValuePointer

Protected Member Functions
	DtInteractionDecoder (const DtInteractionDecoder &orig)
	copy constructor - not implemented. More...

DtInteractionDecoder &	operator= (const DtInteractionDecoder &orig)
	assignment operator - not implemented. More...

virtual void	decodeParameter (DtInteractionRep *inter, const RTI::ParameterHandleValuePairSet &pvList, int index)
	Process (decode) the specified parameter. More...

Protected Attributes
DtExerciseConn *	myExConn

DtInterClassDesc *	myClassDesc

RTI::InteractionClassHandle	myClassHandle

std::map< RTI::ParameterHandle, DtParameterDecoder >	myList
	myList is an array of classDesc->maxParamHandle() items. More...

Detailed Description

Instances of DtInteractionDecoder are used to decode interactions from the network.

Member Typedef Documentation

typedef void(* DtInteractionDecoder::DtParameterDecoder)(DtInteractionRep *inter, const RTI::ParameterHandleValuePairSet &pvlist, int i)

Parameter decoder function signature.

Constructor & Destructor Documentation

DtInteractionDecoder::DtInteractionDecoder	(	DtExerciseConn *	exConn,
		DtInterClassDesc *	classDesc
	)

constructor

virtual DtInteractionDecoder::~DtInteractionDecoder ( )

virtual

destructor

DtInteractionDecoder::DtInteractionDecoder ( const DtInteractionDecoder & orig )

protected

copy constructor - not implemented.

Member Function Documentation

DtParameterDecoder DtInteractionDecoder::addDecoder	(	RTI::ParameterHandle	handle,
		DtParameterDecoder	proc
	)

Add/Remove a decoding function for the parameter specified by handle.

Returns the decoding function which is replaced by the add/remove. Note: This is non-virtual, since it is typically called by constructors.

DtParameterDecoder DtInteractionDecoder::addDecoder	(	char *	name,
		DtParameterDecoder	proc
	)

Add/Remove a decoding function for the parameter specified by name.

Returns the decoding function which is replaced by the add/remove. Note: This is non-virtual, since it is typically called by constructors.

virtual DtInteractionDecoder* DtInteractionDecoder::clone ( ) const

virtual

Returns a new-ed clone of this object.

virtual DtInteractionDecoder* DtInteractionDecoder::clone ( DtInterClassDesc * interDesc ) const

virtual

Returns a new-ed clone of this object which corresponds to the inter description interDesc.

Use this function if you want a subclass in the FOM to use the same decoder as its parent.

virtual void DtInteractionDecoder::decode	(	DtInteractionRep *	interaction,
		const RTI::ParameterHandleValueMap &	pvMap
	)

virtual

Decode the interaction.

static void DtInteractionDecoder::decodeGenericParameter	(	DtInteractionWithEncDec *	inter,
		const RTI::ParameterHandleValuePairSet &	pvlist,
		int	i
	)

static

Generic decoder class.

Stores data as a generic attributes in the given state repository.

virtual void DtInteractionDecoder::decodeParameter	(	DtInteractionRep *	inter,
		const RTI::ParameterHandleValuePairSet &	pvList,
		int	index
	)

protectedvirtual

Process (decode) the specified parameter.

virtual DtParameterDecoder DtInteractionDecoder::decoder ( RTI::ParameterHandle handle ) const

virtual

Get the parameter decoder for the specified handle.

char * DtInteractionDecoder::decodingBuffer ( int length )

inlinestatic

Returns a pointer to a buffer that can be used to copy data obtained from a phvps.

If the buffer isn't large enough to contain the data, more space will be allocated to it.

References DtDecodingBuffer().

Referenced by eventIdParameterData(), and parameterData().

DtNetEventId * DtInteractionDecoder::eventIdParameterData	(	const RTI::ParameterHandleValuePairSet &	params,
		int	index
	)

inlinestatic

Get the parameter data as a DtNetEventId (adds defensive null terminator) Returns a pointer to the parameter data.

References decodingBuffer(), rti1516::CompatibleHandleValuePairSet< HandleType, MapType >::getValue(), and rti1516::CompatibleHandleValuePairSet< HandleType, MapType >::getValueLength().

RTI::InteractionClassHandle DtInteractionDecoder::interactionClassHandle ( )

inlinevirtual

Get the interaction's class handle.

References myClassHandle.

DtInteractionDecoder& DtInteractionDecoder::operator= ( const DtInteractionDecoder & orig )

protected

assignment operator - not implemented.

char * DtInteractionDecoder::parameterData	(	const RTI::ParameterHandleValuePairSet &	pvList,
		int	index,
		RTI::ULong &	length
	)

inlinestatic

Returns a pointer to a buffer containing the parameter data.

References decodingBuffer(), rti1516::CompatibleHandleValuePairSet< HandleType, MapType >::getValue(), rti1516::CompatibleHandleValuePairSet< HandleType, MapType >::getValueLength(), rti1516::CompatibleHandleValuePairSet< HandleType, MapType >::getValuePointer(), and theUseGetValuePointer.

char * DtInteractionDecoder::parameterData	(	const RTI::ParameterHandleValuePairSet &	pvList,
		int	index,
		RTI::ULong &	length,
		unsigned int	expectedDataSize,
		const char *	paramName
	)

inlinestatic

Gets the parameter data and checks the expected size.

If the data length is too small, no data is collected (0 returned and length set to 0) and a warning is printed. A message is printed if the data length is too large. Returns a pointer to the parameter data (or 0 if length < expected size).

References decodingBuffer(), DtNlVerbose, DtNotifyLevel, DtVerbose, DtWarn, rti1516::CompatibleHandleValuePairSet< HandleType, MapType >::getValue(), rti1516::CompatibleHandleValuePairSet< HandleType, MapType >::getValueLength(), rti1516::CompatibleHandleValuePairSet< HandleType, MapType >::getValuePointer(), and theUseGetValuePointer.

Member Data Documentation

DtInterClassDesc* DtInteractionDecoder::myClassDesc

protected

RTI::InteractionClassHandle DtInteractionDecoder::myClassHandle

protected

Referenced by interactionClassHandle().

DtExerciseConn* DtInteractionDecoder::myExConn

protected

std::map<RTI::ParameterHandle, DtParameterDecoder> DtInteractionDecoder::myList

protected

myList is an array of classDesc->maxParamHandle() items.

bool DtInteractionDecoder::theUseGetValuePointer

static

Referenced by parameterData().

The documentation for this class was generated from the following file:

interactionDecoder.h
