Legion::Connection Class Reference

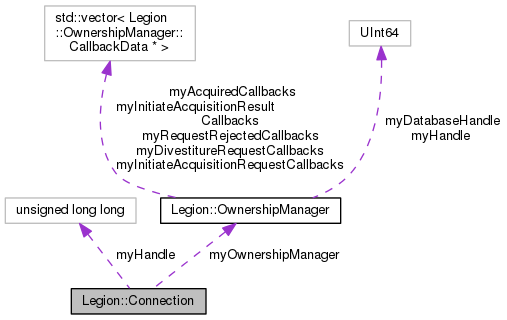

Collaboration diagram for Legion::Connection:

Public Member Functions
	Connection (const SimulationDatabase &db, const Configuration &config)
virtual	~Connection ()
virtual ConnectionHandle	handle ()
virtual bool	isConnected ()
virtual void	startProcessingMessages (double maxProcessingTime=0.0)
	Tell connection to start processing messages (updates applied to database next state). More...
virtual void	stopProcessingMessages ()
	This tells the connection it should stop processing messages immediately, even if there are messages in the queue to process or time remaining. More...
virtual void	waitUntilDoneProcessingMessages ()
	Wait for message processing to complete. More...
virtual ClientId	clientId ()
virtual void	setInterest (const Boundary &boundary, InterestGranularity granularityToUse=Boundary::theDefaultGranularity)
	Set an interest filter. More...
virtual void	removeInterest ()
	Remove the interest filter (interested in everything) More...
virtual std::unique_ptr< Boundary >	interest () const
	Return the interest filter if it exist; otherwise, NULL. More...
virtual InterestGranularity	interestGranularity () const
	Return the filter type. More...
virtual void	setIntent (const Boundary &boundary)
	Set an intent filter. More...
virtual void	removeIntent ()
	Remove the intent filter (satisfy every interest) More...
virtual std::unique_ptr< Boundary >	intent () const
	Return the intent filter if it exist; otherwise, NULL. More...
virtual bool	isAbsoluteTimestamp () const
	Return if application is using absolute time stamp. More...
virtual void	setIsAbsoluteTimestamp (bool isAbsolute)
	Set using absolute timestamps. More...
virtual OwnershipManager *	ownershipManager ()
	Return the ownership manager. More...
virtual void	setAttributeSetInterest (const UInt32 attrSetType=ALL_ATTRIBUTE_SETS)
	Set/Add/Remove single interested AttributeSet By default, attrSetType = ALL_SET, means that all AttributeSet are interested. More...
virtual void	addAttributeSetInterest (const UInt32 attrSetType=ALL_ATTRIBUTE_SETS)
	Set/Add/Remove single interested AttributeSet By default, attrSetType = ALL_SET, means that all AttributeSet are interested. More...
virtual void	removeAttributeSetInterest (const UInt32 attrSetType=ALL_ATTRIBUTE_SETS)
	Set/Add/Remove single interested AttributeSet By default, attrSetType = ALL_SET, means that all AttributeSet are interested. More...

Protected Attributes
ConnectionHandle	myHandle
OwnershipManager *	myOwnershipManager

Constructor & Destructor Documentation

Legion::Connection::Connection	(	const SimulationDatabase &	db,
		const Configuration &	config
	)

virtual Legion::Connection::~Connection ( )

virtual

Member Function Documentation

virtual void Legion::Connection::addAttributeSetInterest ( const UInt32  attrSetType = ALL_ATTRIBUTE_SETS )

virtual

Set/Add/Remove single interested AttributeSet By default, attrSetType = ALL_SET, means that all AttributeSet are interested.

virtual ClientId Legion::Connection::clientId ( )

virtual

Referenced by main().

virtual ConnectionHandle Legion::Connection::handle ( )

inlinevirtual

virtual std::unique_ptr<Boundary> Legion::Connection::intent ( ) const

virtual

Return the intent filter if it exist; otherwise, NULL.

virtual std::unique_ptr<Boundary> Legion::Connection::interest ( ) const

virtual

Return the interest filter if it exist; otherwise, NULL.

virtual InterestGranularity Legion::Connection::interestGranularity ( ) const

virtual

Return the filter type.

virtual bool Legion::Connection::isAbsoluteTimestamp ( ) const

virtual

Return if application is using absolute time stamp.

virtual bool Legion::Connection::isConnected ( )

virtual

Referenced by main().

virtual OwnershipManager* Legion::Connection::ownershipManager ( )

virtual

Return the ownership manager.

Referenced by main().

virtual void Legion::Connection::removeAttributeSetInterest ( const UInt32  attrSetType = ALL_ATTRIBUTE_SETS )

virtual

Set/Add/Remove single interested AttributeSet By default, attrSetType = ALL_SET, means that all AttributeSet are interested.

virtual void Legion::Connection::removeIntent ( )

virtual

Remove the intent filter (satisfy every interest)

virtual void Legion::Connection::removeInterest ( )

virtual

Remove the interest filter (interested in everything)

virtual void Legion::Connection::setAttributeSetInterest ( const UInt32  attrSetType = ALL_ATTRIBUTE_SETS )

virtual

Set/Add/Remove single interested AttributeSet By default, attrSetType = ALL_SET, means that all AttributeSet are interested.

virtual void Legion::Connection::setIntent ( const Boundary &  boundary )

virtual

Set an intent filter.

Referenced by main().

virtual void Legion::Connection::setInterest ( const Boundary &  boundary, InterestGranularity  granularityToUse = Boundary::theDefaultGranularity  )

virtual

Set an interest filter.

Referenced by main().

virtual void Legion::Connection::setIsAbsoluteTimestamp ( bool  isAbsolute )

virtual

Set using absolute timestamps.

virtual void Legion::Connection::startProcessingMessages ( double  maxProcessingTime = 0.0 )

virtual

Tell connection to start processing messages (updates applied to database next state).

This will deliver messages to the database to update entities, and deliver events. If maxProcessingTime is set, the connection will only process messages until the time expires, otherwise the user will need to explicitly call stopProcessingMessages. IMPORTANT: This can only be called after database->beginFrame() has been called and is an error to call outside of a frame

Referenced by main().

virtual void Legion::Connection::stopProcessingMessages ( )

virtual

This tells the connection it should stop processing messages immediately, even if there are messages in the queue to process or time remaining.

The user still needs to call waitUntilDoneProcessingMessages to block until any in-flight messages are finished. IMPORTANT: This must be called before the database->endFrame is called. It is an error to all outside of a frame

virtual void Legion::Connection::waitUntilDoneProcessingMessages ( )

virtual

Wait for message processing to complete.

This will block until messages are no longer being processed. IMPORTANT: This must be called before the database->endFrame is called. It is an error to all outside of a frame

Referenced by main().

Member Data Documentation

ConnectionHandle Legion::Connection::myHandle

protected

OwnershipManager* Legion::Connection::myOwnershipManager

protected

---

The documentation for this class was generated from the following file:

• connection.h
