DtFixedWingPilotControllerDescriptor Class Reference

DtFixedWingPilotControllerDescriptor; descriptor for the DtFixedWingPilotControllerDescriptor component.

DtFixedWingPilotControllerDescriptor is a DtComponentDescriptor that has additional information needed for providing parameters to the DtFixedWingPilotController.

End User Description: It provides the maximum Gs allowed for a bank turn and the turn angle at which the max turn rate will be applied.

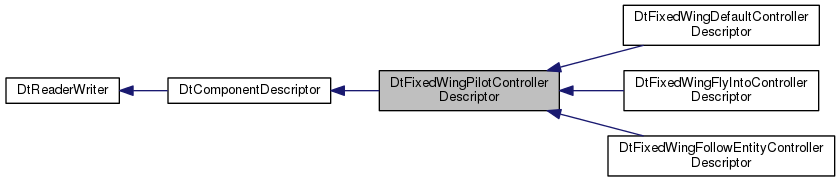

Inheritance diagram for DtFixedWingPilotControllerDescriptor:

Public Member Functions
	DtFixedWingPilotControllerDescriptor (const DtString &name, DtReaderWriterRegistry *parentRegistry=NULL)
	DtFixedWingPilotControllerDescriptor (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL)
	DtFixedWingPilotControllerDescriptor (const DtFixedWingPilotControllerDescriptor &orig, DtReaderWriterRegistry *parentRegistry=NULL)
DtFixedWingPilotControllerDescriptor &	operator= (const DtFixedWingPilotControllerDescriptor &orig)
virtual	~DtFixedWingPilotControllerDescriptor () override
virtual DtString	type () const override
virtual DtComponentDescriptor *	clone (DtReaderWriterRegistry *parentRegistry=NULL) const override
virtual DtReal	maxTurnRateCutoffAngle () const
virtual void	setMaxTurnRateCutoffAngle (DtReal angle)
virtual DtReal	maxTurningGs () const
virtual void	setMaxTurningGs (DtReal maxGs)
virtual DtReal	maxPitchAngle () const
virtual void	setMaxPitchAngle (DtReal pitch)
virtual DtReal	atTime () const
virtual void	setAtTime (DtReal atTime)
virtual DtReal	nearTime () const
virtual void	setNearTime (DtReal nearTime)
virtual DtReal	maxTaxiingTurnSpeed () const
virtual void	setMaxTaxiingTurnSpeed (DtReal maxTaxiingTurnSpeed)
virtual DtReal	taxiingNearDistance () const
virtual void	setTaxiingNearDistance (DtReal taxiingNearDistance)
virtual DtReal	taxiingAtDistance () const
virtual void	setTaxiingAtDistance (DtReal taxiingAtDistance)
virtual DtReal	taxiingApproachSpeed () const
virtual void	setTaxiingApproachSpeed (DtReal taxiingApproachSpeed)
virtual DtReal	timeToTargetAltitude () const
virtual void	setTimeToTargetAltitude (DtReal value)
virtual bool	terrainAvoidanceEnabled () const
virtual void	setTerrainAvoidanceEnabled (bool v)
virtual double	terrainAvoidanceMaxLookaheadTime () const
virtual void	setTerrainAvoidanceMaxLookaheadTime (double v)
Public Member Functions inherited from DtComponentDescriptor
	DtComponentDescriptor (const DtComponentDescriptor &orig, DtReaderWriterRegistry *parentRegistry=NULL)
DtComponentDescriptor &	operator= (const DtComponentDescriptor &orig)
virtual	~DtComponentDescriptor () override
virtual void	putData (std::string &fp, int indentLevel=0) override
virtual DtlObjPtr	getData (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings) override
virtual bool	init ()
virtual const DtString &	stateAndParameterDataPrefix () const
bool	operator== (const DtComponentDescriptor &) const
	DtComponentDescriptor (const DtString &componentName, DtReaderWriterRegistry *parentRegistry=NULL)
	DtComponentDescriptor (const DtSymbolString &componentName, DtReaderWriterRegistry *parentRegistry=NULL)
virtual void	setComponentType (const DtString &componentType)
virtual const DtString &	componentType () const
virtual void	setMinTickPeriod (DtReal minTickPeriod)
virtual DtReal	minTickPeriod () const
virtual void	setMinTickPeriodVariance (DtReal minTickPeriodVariance)
virtual DtReal	minTickPeriodVariance () const
virtual void	setPeriodicTickWhilePaused (bool value)
virtual bool	periodicTickWhilePaused () const
virtual const DtString &	processStateRepositoryName () const
virtual void	setProcessStateRepositoryName (const DtString &name)
virtual const DtString &	processStateRepositoryType () const
virtual void	setProcessStateRepositoryType (const DtString &type)
virtual void	setIsEnabled (bool yesNo)
virtual bool	isEnabled () const
virtual void	setIsEnabledForClutterEntities (bool yesNo)
virtual bool	isEnabledForClutterEntities () const
virtual void	setDebugActive (bool active)
virtual bool	debugActive () const
virtual void	setMinTaskVisualizationTickPeriod (DtReal minTickPeriod)
virtual DtReal	minTaskVisualizationTickPeriod () const
virtual void	setTaskVisualizationsEnabled (bool enabled)
virtual bool	taskVisualizationsEnabled () const
virtual void	setCreateComponent (bool yesNo)
virtual bool	createComponent () const
virtual void	setCreateOnRemoteObject (bool yesNo)
virtual bool	createOnRemoteObject () const
virtual const DtRwNLengthStringVector &	scriptIds () const
virtual DtRwNLengthStringVector &	scriptIds ()
virtual const DtRwScriptVariablesList &	scriptVariables () const
virtual DtRwScriptVariablesList &	scriptVariables ()
virtual const DtRwProperties &	parameterData () const
virtual DtRwProperties &	parameterData ()
virtual const DtRwProperties &	stateData () const
virtual DtRwProperties &	stateData ()
virtual const DtRwProperties &	internalStateData () const
virtual DtRwProperties &	internalStateData ()
Public Member Functions inherited from DtReaderWriter
	DtReaderWriter ()
	DtReaderWriter (const DtString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)
	DtReaderWriter (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)
	DtReaderWriter (const DtString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)
	DtReaderWriter (const DtSymbolString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)
	DtReaderWriter (const DtReaderWriter &, DtReaderWriterRegistry *parentRegistry=NULL)
const DtReaderWriter &	operator= (const DtReaderWriter &orig)
bool	operator== (const DtReaderWriter &) const
bool	operator!= (const DtReaderWriter &rhs) const
virtual	~DtReaderWriter ()
virtual void	putSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())
virtual void	postPutSelf ()
virtual void	prePutSelf ()
virtual void	getSelf (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())
virtual void	postGetSelf ()
virtual void	preGetSelf ()
virtual void	writeSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())
virtual DtSymbolString	name () const
virtual void	addAlias (const DtSymbolString &alias)
virtual void	addAlias (const DtString &alias)
virtual bool	hasAlias (const DtSymbolString &alias)
virtual const aliasContainer &	aliases () const
virtual void	setReadonly (bool flag)
bool	isReadonly () const
virtual void	reset ()
virtual int	alignment () const
virtual bool	variableIsBound () const
virtual void	unbindVariable ()
virtual void	setName (const DtString &)
virtual const char *	readerWriterType () const
virtual const char *	xmlType () const
virtual DtString	prettyPrint () const
std::string	debugText () const
virtual void	bindVariables (DtVariableBindingsList variableBindings)
virtual std::list < DtVariableNameType >	unboundVariables () const
bool	invalid () const
virtual bool	hasChild (const DtReaderWriter *p) const
virtual bool	hasVariableReference () const
virtual void	bindLocalVariables (const DtVariableBindingsList &variableBindings)
virtual void	recordUpdateTime () const
virtual bool	changedSinceLastChecked ()
virtual bool	peekChangedSinceLastChecked () const
virtual void	setValueSpecified (bool specified, bool recurse=false)
virtual bool	valueSpecified () const
virtual bool	isVariableReference () const
virtual void	setIsVariableReference (bool value)
virtual void	clearAllVariableReferenceFlags ()
virtual DtSymbolString	variableName () const
virtual void	setVariableName (const DtSymbolString variableName)
virtual const DtReaderWriter *	defaultRWValue () const
virtual DtReaderWriter *	defaultRWValue ()
virtual void	setDefaultRWValue (DtReaderWriter *)
virtual bool	checkAndSetDefaultRWValue (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())
const DtReaderWriterRegistry &	registry () const
DtReaderWriterRegistry &	registry ()
virtual DtPropertyInterface *	property ()
virtual const DtPropertyInterface *	property () const
virtual DtString	toXml () const
virtual DtRwVariableBindings *	generateVariableBindings () const
virtual bool	toXml (const DtFilename &) const
virtual bool	fromXml (const DtString &)
virtual bool	fromXmlFile (const DtFilename &)
virtual void	putSelf (DtEnvironmentSP, DtEnvValueSP parent) const
virtual void	putData (DtEnvironmentSP, DtEnvValueSP value) const
virtual void	putVariableReference (DtEnvironmentSP, DtEnvValueSP value) const
virtual void	getSelf (const DtEnvironmentSP, const DtEnvValueSP root, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())
virtual void	getData (const DtEnvironmentSP, const DtEnvValueSP, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())
virtual void	unrecognizedItem (const DtEnvironmentSP env, const DtEnvValueSP root, const SearchPaths &searchPaths, const DtVariableBindingsList &varBindings)
virtual void	getVariableReference (DtEnvironmentSP, DtEnvValueSP value)

Static Public Member Functions
static DtComponentDescriptor *	creator ()
Static Public Member Functions inherited from DtComponentDescriptor
static void	addComponentDescriptorCreatorFcn (const DtString &type, DtComponentDescriptorCreatorFcn fcn)
static DtComponentDescriptor *	createComponentDescriptor (DtlObjPtr mtlStream, const DtReaderWriter::SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings)
static DtComponentDescriptor *	createComponentDescriptor (const char *pName)
static DtComponentDescriptor *	creator ()
static DtComponentDescriptorFactory *	factory ()
static void	setFactory (DtComponentDescriptorFactory *factory)
Static Public Member Functions inherited from DtReaderWriter
static void	putIndent (std::string &fp, int indentLevel)
static const DtVariableBindingsList &	nullVariableReference ()
static void	setPostGetSelfCallback (DtGetSelfCallbackFcn fcn, void *usrData)
static void	setPrePutSelfCallback (DtPutSelfCallbackFcn fcn, void *usrData)
static void	setPutIndent (bool)
static bool	putIndent ()
static const char *	theXmlType ()
static const DtFilename &	appPath ()
static void	setFactoryCreatorFunction (DtReaderWriterFactoryCreatorFcn fcn)
static void	createReaderWriterFactory ()
static void	cleanupFactory ()
static DtReaderWriterFactory *	factory ()
static void	setOutputStream (DtOutputStream *stream)
static DtOutputStream &	outputStream ()
static DtReaderWriter *	createFromXmlFile (const DtFilename &, bool createAsProperty=false)
static DtReaderWriter *	createFromXml (const DtString &, bool createAsProperty=false)
static DtReaderWriter *	createFromEnvironment (DtEnvironmentSP, bool createAsProperty=false)
static DtString	getAttribute (DtEnvironmentSP env, const DtString &name, DtEnvValueSP root)

Protected Member Functions
	DtFixedWingPilotControllerDescriptor ()
Protected Member Functions inherited from DtComponentDescriptor
	DtComponentDescriptor ()
void	addPrefixToStateAndParameterData ()
Protected Member Functions inherited from DtReaderWriter
virtual void	bindToRwAsVariable (const DtReaderWriter *rw)

Protected Attributes
parameters
These parameters are available for setting in the OPD files.
DtRwReal	myMaxTurnRateCutoffAngle
DtRwReal	myMaxTurningGs
DtRwReal	myMaxTaxiingTurnSpeed
DtRwReal	myMaxPitchAngle
DtRwReal	myAtTime
DtRwReal	myNearTime
DtRwReal	myTaxiingAtDistance
DtRwReal	myTaxiingNearDistance
DtRwReal	myTaxiingApproachSpeed
DtRwReal	myTimeToTargetAltitude
DtRwBoolean	myTerrainAvoidanceEnabled
DtRwReal	myTerrainAvoidanceMaxLookaheadTime
Protected Attributes inherited from DtComponentDescriptor
bool	myPrefixAppliedToStateAndParamData
DtRwString	myComponentType
DtRwReal	myMinTickPeriod
DtRwReal	myMinTickPeriodVariance
DtRwBoolean	myPeriodicTickWhilePaused
DtRwString	myProcessStateRepositoryName
DtRwString	myProcessStateRepositoryType
DtRwBoolean	myIsEnabled
DtRwBoolean	myIsEnabledForClutterEntities
DtRwBoolean	myDebug
DtRwReal	myMinTaskVisualizationTickPeriod
DtRwBoolean	myTaskVisualizationsEnabled
DtRwBoolean	myCreateComponent
DtRwBoolean	myCreateOnRemoteObject
DtRwProperties	myParameterData
DtRwProperties	myStateData
DtRwString	myStateAndParameterDataPrefix
DtRwProperties	myInternalStateData
DtRwNLengthStringVector	myScriptIds
DtRwScriptVariablesList	myScriptVariables
Protected Attributes inherited from DtReaderWriter
const DtSymbolString	myName
DtReaderWriterRegistry	myRegistry
DtReaderWriterRegistry *	myParentRegistry
bool	myValueSpecified
bool	myReadOnlyFlag
bool	myIsVariableReference
DtSymbolString	myVariableName
bool	myVariableIsBound
DtReaderWriter *	myDefaultValue
aliasContainer	myAliases
bool	myInvalid
bool	myChangedFlag

Additional Inherited Members
Public Types inherited from DtReaderWriter
typedef std::vector < DtSymbolString >	aliasContainer
typedef std::vector < DtSymbolString >::iterator	aliasIter
typedef std::vector < DtSymbolString > ::const_iterator	aliasConstIter
typedef std::vector< DtFilename >	SearchPaths
typedef std::pair < DtSymbolString, DtString >	DtVariableNameType
typedef DtReaderWriterFactory *(*	DtReaderWriterFactoryCreatorFcn )()
Static Protected Attributes inherited from DtComponentDescriptor
static DtComponentDescriptorFactory *	myFactory
Static Protected Attributes inherited from DtReaderWriter
static DtString	theUnspecifiedValue
static DtGetSelfCallbackInfo	thePostGetSelfCallback
static DtPutSelfCallbackInfo	thePrePutSelfCallback
static const DtVariableBindingsList	theEmptyVariableBindingsList
static bool	theCreatorFcnSet
static DtReaderWriterFactory *	theFactory
static DtReaderWriterFactoryCreatorFcn	theFactoryCreatorFcn
static bool	thePutIndent
static DtOutputStream *	theOutputStream

Constructor & Destructor Documentation

DtFixedWingPilotControllerDescriptor::DtFixedWingPilotControllerDescriptor	(	const DtString &	name,
		DtReaderWriterRegistry *	parentRegistry = NULL
	)

constructor

DtFixedWingPilotControllerDescriptor::DtFixedWingPilotControllerDescriptor	(	const DtSymbolString &	name,
		DtReaderWriterRegistry *	parentRegistry = NULL
	)

DtFixedWingPilotControllerDescriptor::DtFixedWingPilotControllerDescriptor	(	const DtFixedWingPilotControllerDescriptor &	orig,
		DtReaderWriterRegistry *	parentRegistry = NULL
	)

copy constructor

virtual DtFixedWingPilotControllerDescriptor::~DtFixedWingPilotControllerDescriptor ( )

overridevirtual

destructor

DtFixedWingPilotControllerDescriptor::DtFixedWingPilotControllerDescriptor ( )

protected

default constructor; not implemented

Member Function Documentation

DtFixedWingPilotControllerDescriptor& DtFixedWingPilotControllerDescriptor::operator=

(

const DtFixedWingPilotControllerDescriptor &

orig

)

assignment

virtual DtString DtFixedWingPilotControllerDescriptor::type ( ) const

overridevirtual

Returns the type of component this descriptor describes. Used to create the descriptor on read from an mtl file. Component descriptor type strings are defined in compDescTypes.h.

Returns

DtFixedWingPilotControllerDescriptorType

Reimplemented from DtComponentDescriptor.

Reimplemented in DtFixedWingFollowEntityControllerDescriptor, DtFixedWingFlyIntoControllerDescriptor, and DtFixedWingDefaultControllerDescriptor.

virtual DtComponentDescriptor* DtFixedWingPilotControllerDescriptor::clone ( DtReaderWriterRegistry *  parentRegistry = NULL ) const

overridevirtual

Reimplemented from DtComponentDescriptor.

Reimplemented in DtFixedWingFollowEntityControllerDescriptor, DtFixedWingFlyIntoControllerDescriptor, and DtFixedWingDefaultControllerDescriptor.

virtual DtReal DtFixedWingPilotControllerDescriptor::maxTurnRateCutoffAngle ( ) const

virtual

Accessor/mutator for myMaxTurnRateCutoffAngle.

virtual void DtFixedWingPilotControllerDescriptor::setMaxTurnRateCutoffAngle ( DtReal  angle )

virtual

Accessor/mutator for myMaxTurnRateCutoffAngle.

virtual DtReal DtFixedWingPilotControllerDescriptor::maxTurningGs ( ) const

virtual

Accessor/mutator for myMaxTurningGs.

virtual void DtFixedWingPilotControllerDescriptor::setMaxTurningGs ( DtReal  maxGs )

virtual

Accessor/mutator for myMaxTurningGs.

virtual DtReal DtFixedWingPilotControllerDescriptor::maxPitchAngle ( ) const

virtual

Accessor/mutator for myMaxPitchAngle.

virtual void DtFixedWingPilotControllerDescriptor::setMaxPitchAngle ( DtReal  pitch )

virtual

Accessor/mutator for myMaxPitchAngle.

virtual DtReal DtFixedWingPilotControllerDescriptor::atTime ( ) const

virtual

Accessor/mutator for myAtTime.

virtual void DtFixedWingPilotControllerDescriptor::setAtTime ( DtReal  atTime )

virtual

Accessor/mutator for myAtTime.

virtual DtReal DtFixedWingPilotControllerDescriptor::nearTime ( ) const

virtual

Accessor/mutator for myNearTime.

virtual void DtFixedWingPilotControllerDescriptor::setNearTime ( DtReal  nearTime )

virtual

Accessor/mutator for myNearTime.

virtual DtReal DtFixedWingPilotControllerDescriptor::maxTaxiingTurnSpeed ( ) const

virtual

Accessor/mutator for myMaxTaxiingTurnSpeed.

virtual void DtFixedWingPilotControllerDescriptor::setMaxTaxiingTurnSpeed ( DtReal  maxTaxiingTurnSpeed )

virtual

Accessor/mutator for myMaxTaxiingTurnSpeed.

virtual DtReal DtFixedWingPilotControllerDescriptor::taxiingNearDistance ( ) const

virtual

Accessor/mutator for myTaxiingNearDistance.

virtual void DtFixedWingPilotControllerDescriptor::setTaxiingNearDistance ( DtReal  taxiingNearDistance )

virtual

Accessor/mutator for myTaxiingNearDistance.

virtual DtReal DtFixedWingPilotControllerDescriptor::taxiingAtDistance ( ) const

virtual

Accessor/mutator for myTaxiingAtDistance.

virtual void DtFixedWingPilotControllerDescriptor::setTaxiingAtDistance ( DtReal  taxiingAtDistance )

virtual

Accessor/mutator for myTaxiingAtDistance.

virtual DtReal DtFixedWingPilotControllerDescriptor::taxiingApproachSpeed ( ) const

virtual

Accessor/mutator for myTaxiingApproachSpeed.

virtual void DtFixedWingPilotControllerDescriptor::setTaxiingApproachSpeed ( DtReal  taxiingApproachSpeed )

virtual

Accessor/mutator for myTaxiingApproachSpeed.

virtual DtReal DtFixedWingPilotControllerDescriptor::timeToTargetAltitude ( ) const

virtual

Accessor/mutator for myTimeToTargetAltitude.

virtual void DtFixedWingPilotControllerDescriptor::setTimeToTargetAltitude ( DtReal  value )

virtual

Accessor/mutator for myTimeToTargetAltitude.

virtual bool DtFixedWingPilotControllerDescriptor::terrainAvoidanceEnabled ( ) const

virtual

See Also

myTerrainAvoidanceEnabled

virtual void DtFixedWingPilotControllerDescriptor::setTerrainAvoidanceEnabled ( bool  v )

virtual

See Also

myTerrainAvoidanceEnabled

virtual double DtFixedWingPilotControllerDescriptor::terrainAvoidanceMaxLookaheadTime ( ) const

virtual

See Also

myTerrainAvoidanceMaxLookaheadTime

virtual void DtFixedWingPilotControllerDescriptor::setTerrainAvoidanceMaxLookaheadTime ( double  v )

virtual

See Also

myTerrainAvoidanceMaxLookaheadTime

static DtComponentDescriptor* DtFixedWingPilotControllerDescriptor::creator ( )

static

Returns

Newly created instance of this class, with an empty DtReaderWriter name. Creation methods are registered with a DtComponentDescriptorFactory, so they can be created on demand as they are read in from a parameter database file.

Member Data Documentation

DtRwReal DtFixedWingPilotControllerDescriptor::myMaxTurnRateCutoffAngle

protected

Parameter Name: max-turnrate-cutoff-angle
Parameter Description: Specifies the turn angle (in radians) at which the entity will turn at its maximum turn rate. The maximum turn rate (as specified by the fixed-wing entity pitch-rate parameter) is used at or above this angle. For turns that are less then the cutoff angle, the turn rate decreases linearly and proportionally to the ratio of the turn angle to the maxTurnRateCutoffAngle.
Parameter Default Value: .52 (30 degrees)
Parameter Units: radians.

DtRwReal DtFixedWingPilotControllerDescriptor::myMaxTurningGs

protected

Parameter Name: max-turning-Gs
Parameter Description: Specifies the maximum acceleration, measured in Gs (9.8 m/s**2) that the pilot controller will allow in a banked turn for this task. (Note that the flight command controller, which implements fly-heading tasks, does not use this parameter).
Parameter Default Value: 9.
.

DtRwReal DtFixedWingPilotControllerDescriptor::myMaxTaxiingTurnSpeed

protected

Parameter Name: max-taxiing-turn-speed
Parameter Description:
Parameter Default Value: 10.
Parameter Units: meters/second.

DtRwReal DtFixedWingPilotControllerDescriptor::myMaxPitchAngle

protected

Parameter Name: max-pitch-angle
Parameter Description: Specifies the maximum pitch (in radians) that the pilot will use to climb or dive to reach the desired altitude. This is independant from actual aircraft capabilities.
Parameter Default Value: .78 (45 degrees)
Parameter Units: radians.

DtRwReal DtFixedWingPilotControllerDescriptor::myAtTime

protected

Parameter Name: at-time Parameter Description: The entity is considered to be at its goal when it will be at the goal in less than this value based on its current position and speed.
Parameter Default Value: 2.0
Parameter Units: seconds
.

DtRwReal DtFixedWingPilotControllerDescriptor::myNearTime

protected

Parameter Name: near-time
Parameter Description: The entity is considered to be near its goal when it will be at the goal in less than this value based on its current position and speed.
Parameter Default Value: 5.0
Parameter Units: seconds
.

DtRwReal DtFixedWingPilotControllerDescriptor::myTaxiingAtDistance

protected

Parameter Name: taxiing-at-distance
Parameter Description:
Parameter Default Value: 1.
Parameter Units: meters.

DtRwReal DtFixedWingPilotControllerDescriptor::myTaxiingNearDistance

protected

Parameter Name: taxiing-near-distance
Parameter Description:
Parameter Default Value: 25.
Parameter Units: meters.

DtRwReal DtFixedWingPilotControllerDescriptor::myTaxiingApproachSpeed

protected

Parameter Name: taxiing-approach-speed
Parameter Description:
Parameter Default Value: 2.
Parameter Units: meters/second.

DtRwReal DtFixedWingPilotControllerDescriptor::myTimeToTargetAltitude

protected

Parameter Name: time-to-target-altitude
Parameter Description: This value is used to calculate the desired climb/decent rate of the plane. The pilot controller will attempt to use a climb/decent rate which will reach the target altitude in the number of seconds specified here. The entity's max climb rate will be used if it is smaller than this value. Smaller values will cause more aggressive climb/decent rates.
Parameter Default Value: 4.
Parameter Units: seconds.

DtRwBoolean DtFixedWingPilotControllerDescriptor::myTerrainAvoidanceEnabled

protected

Parameter Name: terrain-avoidance-enabled
Parameter Description: If true, the pilot will attempt to avoid the terrain even if the desired path would intersect the ground. This functionality may be disabled by other means even if it is enabled here. Turning it off here will prevent it from being enabled elsewhere.
Parameter Default Value: True
Parameter Units: Boolean.

DtRwReal DtFixedWingPilotControllerDescriptor::myTerrainAvoidanceMaxLookaheadTime

protected

Parameter Name: terrain-avoidance-max-lookahead-time
Parameter Description: Number of seconds the pilot will look ahead for terrain collisions when avoiding terrain. This value will be smaller in some circumstances, based on the task being performed, but will never be larger. Parameter Default Value: 30
Parameter Units: Seconds.

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrfobjparam/fixedWingPilotControllerDescriptor.h
