DtSimTaskState Class Reference

DtSimTaskState holds the current execution state of a given task.

DtSimTaskState is an abstract base class that represents the current execution state associated with a given DtSimTask. Derived classes hold details particular to a specific task. For example, for the DtMoveAlongTask there is a corresponding DtMoveAlongTaskState class that holds the current waypoint and direction of movement along the route. DtSimTaskState is used when task are suspended if there is additional data (beyond the data already in the DtSimTask subclass) that is required to correctly resume the task.

When creating a new DtSimTaskState subclass, you must register its creator function with the factory using the addTaskStateCreatorFcn() function. The new subclass is then instantiated and returned from the DtTaskControllerComponent subclass that is executing the DtSimTask subclass to which this is associated. This will typically be in an override of either DtSingleTaskControllerComponent::currentTaskState() or DtMultiTaskControllerComponent::currentTaskState().

Note

Most VRF DtSimTask subclasses do not have a corresponding DtSimTaskState subclass because the data in the DtSimTask subclass is sufficient to resume the task.

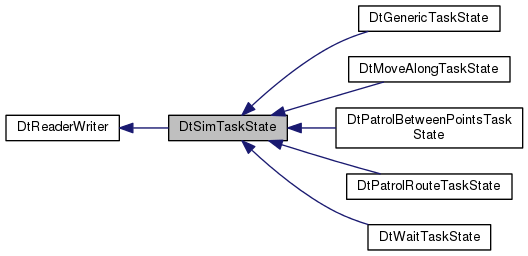

Inheritance diagram for DtSimTaskState:

Public Member Functions
	DtSimTaskState ()
	DtSimTaskState (const DtString &writeName, DtReaderWriterRegistry *parentRegistry=0)
	DtSimTaskState (const DtString &writeName, const DtSimTaskState &orig, DtReaderWriterRegistry *parentRegistry=0)
const DtSimTaskState &	operator= (const DtSimTaskState &orig)
virtual	~DtSimTaskState () override
virtual bool	init ()
virtual DtString	type () const
virtual DtSimTaskState *	clone (const DtString &name, DtReaderWriterRegistry *parentRegistry=0) const
virtual void	putData (std::string &fp, int indentLevel=0) override
virtual DtlObjPtr	getData (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings) override
Public Member Functions inherited from DtReaderWriter
	DtReaderWriter ()
	DtReaderWriter (const DtString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)
	DtReaderWriter (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)
	DtReaderWriter (const DtString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)
	DtReaderWriter (const DtSymbolString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)
	DtReaderWriter (const DtReaderWriter &, DtReaderWriterRegistry *parentRegistry=NULL)
const DtReaderWriter &	operator= (const DtReaderWriter &orig)
bool	operator== (const DtReaderWriter &) const
bool	operator!= (const DtReaderWriter &rhs) const
virtual	~DtReaderWriter ()
virtual void	putSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())
virtual void	postPutSelf ()
virtual void	prePutSelf ()
virtual void	getSelf (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())
virtual void	postGetSelf ()
virtual void	preGetSelf ()
virtual void	writeSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())
virtual DtSymbolString	name () const
virtual void	addAlias (const DtSymbolString &alias)
virtual void	addAlias (const DtString &alias)
virtual bool	hasAlias (const DtSymbolString &alias)
virtual const aliasContainer &	aliases () const
virtual void	setReadonly (bool flag)
bool	isReadonly () const
virtual void	reset ()
virtual int	alignment () const
virtual bool	variableIsBound () const
virtual void	unbindVariable ()
virtual void	setName (const DtString &)
virtual const char *	readerWriterType () const
virtual const char *	xmlType () const
virtual DtString	prettyPrint () const
std::string	debugText () const
virtual void	bindVariables (DtVariableBindingsList variableBindings)
virtual std::list < DtVariableNameType >	unboundVariables () const
bool	invalid () const
virtual bool	hasChild (const DtReaderWriter *p) const
virtual bool	hasVariableReference () const
virtual void	bindLocalVariables (const DtVariableBindingsList &variableBindings)
virtual void	recordUpdateTime () const
virtual bool	changedSinceLastChecked ()
virtual bool	peekChangedSinceLastChecked () const
virtual void	setValueSpecified (bool specified, bool recurse=false)
virtual bool	valueSpecified () const
virtual bool	isVariableReference () const
virtual void	setIsVariableReference (bool value)
virtual void	clearAllVariableReferenceFlags ()
virtual DtSymbolString	variableName () const
virtual void	setVariableName (const DtSymbolString variableName)
virtual const DtReaderWriter *	defaultRWValue () const
virtual DtReaderWriter *	defaultRWValue ()
virtual void	setDefaultRWValue (DtReaderWriter *)
virtual bool	checkAndSetDefaultRWValue (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())
const DtReaderWriterRegistry &	registry () const
DtReaderWriterRegistry &	registry ()
virtual DtPropertyInterface *	property ()
virtual const DtPropertyInterface *	property () const
virtual DtString	toXml () const
virtual DtRwVariableBindings *	generateVariableBindings () const
virtual bool	toXml (const DtFilename &) const
virtual bool	fromXml (const DtString &)
virtual bool	fromXmlFile (const DtFilename &)
virtual void	putSelf (DtEnvironmentSP, DtEnvValueSP parent) const
virtual void	putData (DtEnvironmentSP, DtEnvValueSP value) const
virtual void	putVariableReference (DtEnvironmentSP, DtEnvValueSP value) const
virtual void	getSelf (const DtEnvironmentSP, const DtEnvValueSP root, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())
virtual void	getData (const DtEnvironmentSP, const DtEnvValueSP, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())
virtual void	unrecognizedItem (const DtEnvironmentSP env, const DtEnvValueSP root, const SearchPaths &searchPaths, const DtVariableBindingsList &varBindings)
virtual void	getVariableReference (DtEnvironmentSP, DtEnvValueSP value)

Static Public Member Functions
static DtSimTaskState *	createTaskState (DtlObjPtr mtlStream)
static DtSimTaskState *	createTaskState (DtString taskStateType)
static void	addTaskStateCreatorFcn (const DtString &taskName, DtSimTaskStateCreatorFcn fcn)
static void	setFactory (DtSimTaskStateFactory *factory)
static DtSimTaskStateFactory *	factory ()
static bool	isTypeRegistered (DtString type)
Static Public Member Functions inherited from DtReaderWriter
static void	putIndent (std::string &fp, int indentLevel)
static const DtVariableBindingsList &	nullVariableReference ()
static void	setPostGetSelfCallback (DtGetSelfCallbackFcn fcn, void *usrData)
static void	setPrePutSelfCallback (DtPutSelfCallbackFcn fcn, void *usrData)
static void	setPutIndent (bool)
static bool	putIndent ()
static const char *	theXmlType ()
static const DtFilename &	appPath ()
static void	setFactoryCreatorFunction (DtReaderWriterFactoryCreatorFcn fcn)
static void	createReaderWriterFactory ()
static void	cleanupFactory ()
static DtReaderWriterFactory *	factory ()
static void	setOutputStream (DtOutputStream *stream)
static DtOutputStream &	outputStream ()
static DtReaderWriter *	createFromXmlFile (const DtFilename &, bool createAsProperty=false)
static DtReaderWriter *	createFromXml (const DtString &, bool createAsProperty=false)
static DtReaderWriter *	createFromEnvironment (DtEnvironmentSP, bool createAsProperty=false)
static DtString	getAttribute (DtEnvironmentSP env, const DtString &name, DtEnvValueSP root)

Static Public Attributes
static DtSimTaskStateFactory *	myFactory

Additional Inherited Members
Public Types inherited from DtReaderWriter
typedef std::vector < DtSymbolString >	aliasContainer
typedef std::vector < DtSymbolString >::iterator	aliasIter
typedef std::vector < DtSymbolString > ::const_iterator	aliasConstIter
typedef std::vector< DtFilename >	SearchPaths
typedef std::pair < DtSymbolString, DtString >	DtVariableNameType
typedef DtReaderWriterFactory *(*	DtReaderWriterFactoryCreatorFcn )()
Protected Member Functions inherited from DtReaderWriter
virtual void	bindToRwAsVariable (const DtReaderWriter *rw)
Protected Attributes inherited from DtReaderWriter
const DtSymbolString	myName
DtReaderWriterRegistry	myRegistry
DtReaderWriterRegistry *	myParentRegistry
bool	myValueSpecified
bool	myReadOnlyFlag
bool	myIsVariableReference
DtSymbolString	myVariableName
bool	myVariableIsBound
DtReaderWriter *	myDefaultValue
aliasContainer	myAliases
bool	myInvalid
bool	myChangedFlag
Static Protected Attributes inherited from DtReaderWriter
static DtString	theUnspecifiedValue
static DtGetSelfCallbackInfo	thePostGetSelfCallback
static DtPutSelfCallbackInfo	thePrePutSelfCallback
static const DtVariableBindingsList	theEmptyVariableBindingsList
static bool	theCreatorFcnSet
static DtReaderWriterFactory *	theFactory
static DtReaderWriterFactoryCreatorFcn	theFactoryCreatorFcn
static bool	thePutIndent
static DtOutputStream *	theOutputStream

Constructor & Destructor Documentation

DtSimTaskState::DtSimTaskState

(

)

default constructor

DtSimTaskState::DtSimTaskState	(	const DtString &	writeName,
		DtReaderWriterRegistry *	parentRegistry = 0
	)

constructor If you have a task state object 'put' itself, the write name will preface the task state object.

DtSimTaskState::DtSimTaskState	(	const DtString &	writeName,
		const DtSimTaskState &	orig,
		DtReaderWriterRegistry *	parentRegistry = 0
	)

copy constructor

virtual DtSimTaskState::~DtSimTaskState ( )

overridevirtual

destructor

Member Function Documentation

const DtSimTaskState& DtSimTaskState::operator=

(

const DtSimTaskState &

orig

)

assignment operator; same as copy constructor

virtual bool DtSimTaskState::init ( )

virtual

Base class init does nothing, but this will be called by create, in case any other deriving class needs to do virtual allocation.

virtual DtString DtSimTaskState::type ( ) const

virtual

What kind of task state object am I? Returns a string indicating the kind of task state object( for example, “move-along-task-state”, Derived classes must implement this member function to return a unique string representing the type of task state. The set of standard task state types supplied with VR-Forces is in taskStateTypes.h.

Returns

DtBaseTaskStateType

Reimplemented in DtMoveAlongTaskState, DtPatrolBetweenPointsTaskState, DtPatrolRouteTaskState, DtWaitTaskState, and DtGenericTaskState.

virtual DtSimTaskState* DtSimTaskState::clone ( const DtString &  name, DtReaderWriterRegistry *  parentRegistry = 0  ) const

virtual

Make a copy of this task. Returns a newly allocated instance of a DtSimTaskState. Override this member function to return a pointer to a newly allocated instance of the derived class.

Reimplemented in DtMoveAlongTaskState, DtPatrolBetweenPointsTaskState, DtPatrolRouteTaskState, DtWaitTaskState, and DtGenericTaskState.

virtual void DtSimTaskState::putData ( std::string &  fp, int  indentLevel = 0  )

overridevirtual

putData writes our type, which is provided by the virtual type accessor of the deriving class.

Reimplemented from DtReaderWriter.

virtual DtlObjPtr DtSimTaskState::getData ( DtlObjPtr  args, const DtReaderWriter::SearchPaths &  searchPaths, const DtVariableBindingsList &  variableBindings  )

overridevirtual

getData is just used to get us past the type in the data stream, since it's not actually stored.

Reimplemented from DtReaderWriter.

static DtSimTaskState* DtSimTaskState::createTaskState ( DtlObjPtr  mtlStream )

static

Static functions.

Creates a new task state object, given a pointer to a MÄK Technologies LISP (MTL) stream. It first parses the stream to extract the type of task to create. Then it calls the task factory's create() member function with the given task type. This returns a new instance of the particular task type. The task's getData() member function is then called to retrieve the task parameters from the stream. The pointer to the new task is returned.

static DtSimTaskState* DtSimTaskState::createTaskState ( DtString  taskStateType )

static

static void DtSimTaskState::addTaskStateCreatorFcn ( const DtString &  taskName, DtSimTaskStateCreatorFcn  fcn  )

static

Adds a task creator member function to the task factory.

static void DtSimTaskState::setFactory ( DtSimTaskStateFactory *  factory )

static

static DtSimTaskStateFactory* DtSimTaskState::factory ( )

static

static bool DtSimTaskState::isTypeRegistered ( DtString  type )

static

Member Data Documentation

DtSimTaskStateFactory* DtSimTaskState::myFactory

static

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrftasks/simTaskState.h
