Dt3DLineModel extends the DtLineModel interface to include operations only appropriate for 3D lines.

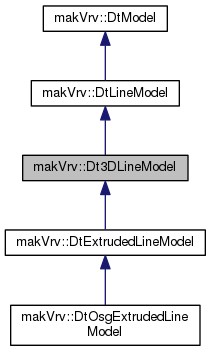

Inheritance diagram for makVrv::Dt3DLineModel:

Public Member Functions
	Dt3DLineModel (DtDe &de, DtUniqueID id)

virtual	~Dt3DLineModel ()

virtual void	setStopOnTerrainIntersection (bool enabled)=0

virtual void	setOcclusionEnabled (bool enabled)=0

virtual void	setPickable (bool pickable)=0

Public Member Functions inherited from makVrv::DtLineModel
	DtLineModel (DtDe &de, DtUniqueID id)

virtual	~DtLineModel ()

virtual void	setColor (float r, float g, float b, float a)=0

virtual void	setWidth (float width)=0

virtual void	setStipplePattern (unsigned int pattern, int repeatFactor=1)=0

virtual const std::vector < DtVector > &	points () const =0

Public Member Functions inherited from makVrv::DtModel
	DtModel (DtDe &de, DtUniqueID id)

virtual	~DtModel ()

DtModelInstance *	createModelInstance (const std::string &modelDefName, bool realize=true)

virtual void	setModelDefinition (const std::string &str)

virtual const std::string &	modelDefinitionName ()

virtual void	saveModelToFile (const std::string &filename)

virtual const std::string &	className () const

virtual DtUniqueID	uniqueId () const

unsigned int	transformSize () const

virtual void	setPosition (int vtx, const DtVector &position)

virtual const DtVector &	position (int vtx=0) const

virtual void	removePosition (int vtx)

virtual void	setPositionOffset (const DtVector &positionOffset)

virtual const DtVector &	positionOffset () const

virtual void	setOrientation (int vtx, const DtTaitBryan &orientation)

virtual void	setPositionAndOrientation (int vtx, const DtVector &positionOffset, const DtTaitBryan &orientation)

virtual const DtTaitBryan &	orientation (int vtx=0) const

virtual void	setOrientationOffset (const DtTaitBryan &orientationOffset)

virtual const DtTaitBryan &	orientationOffset () const

virtual void	enableColorBlending (bool b)

virtual void	setBlendColor (float r, float g, float b, float a)

virtual void	getBlendColor (float &r, float &g, float &b, float &a)

virtual bool	colorBlendingEnabled () const

virtual void	enableLighting (bool l)

virtual DtModelSetId	modelSet () const

const DtVector &	boundingBoxExtents () const

void	getBoundingBoxExtents (double &x, double &y, double &z) const

const DtVector &	boundingBoxCenter () const

virtual void	getBoundingBoxCenter (double &x, double &y, double &z) const

virtual void	getBoundingBoxComponents (DtVector &minimum, DtVector &maximum)

void	setContributesToBound (bool trueOrFalse)

bool	contributesToBound () const

DtDe &	de ()

virtual void	setModelInstance (DtModelInstance *modelInstance)

virtual void	promoteBackgroundModelInstance (const DtModelDefinition &defintion)

virtual void	setVisible (bool isVisible)

virtual bool	visible () const

DtUniqueID	sceneObjectId () const

virtual void	addedToSceneObjectAsProp (const DtUniqueID &sceneObj)

virtual void	addedToSceneObject (const DtUniqueID &sceneObj, DtModelSetId modelSet, int visualizerType)

virtual void	setElementId (DtElementID id)

virtual void	removedFromSceneObject ()

virtual void	setIsSupportModel (bool isSupport)=0

virtual void	setSolid (bool isSolid)

virtual bool	isProp ()

virtual void	updateMinLastFrameDistance (float distance)

virtual void	resetLastFrameDistance ()

virtual float	minLastFrameDistance () const

virtual DtModelInstance *	modelInstance ()

virtual const DtModelInstance *	modelInstance () const

int	visualizerType () const

virtual bool	supportsMultithreadedLoad ()

virtual void	backgroundLoad ()

virtual void	foregroundLoad ()

virtual bool	isActivelyBackgroundLoading ()

virtual DtLoaderHandle *	getLoadQueueHandle ()

Additional Inherited Members
Public Attributes inherited from makVrv::DtModel
boost::signalslib::signal < void(DtModel *)>	signal_modelToBeDestroyed

boost::signalslib::signal < void(DtModel *)>	signal_modelChanged

boost::signalslib::signal < bool(DtModel *, bool), SlotReturnOR >	signal_visibilityChangeRequested

boost::signalslib::signal < void(DtModelInstance , DtModel )>	signal_modelInstanceCreated

boost::signalslib::signal < void(DtModelInstance , DtModel )>	signal_modelInstanceToBeDestroyed

Protected Types inherited from makVrv::DtModel
typedef std::vector < ObjectTransform >	TransformList

Protected Member Functions inherited from makVrv::DtModel
virtual void	addToScene (const DtUniqueID &sceneObjectId, DtModelSetId modelSet, int visualizerType)=0

virtual void	addToSceneAsProp (const DtUniqueID &sceneObjectId)

virtual void	removeFromScene ()=0

virtual void	initializeModelInstance ()

void	slot_modelInstanceChanged (DtModelInstance *instance)

virtual void	waitAndClearLoadHandle ()

virtual void	removedFromLoadQueue ()

virtual void	setDoneBackgroundLoading ()

virtual void	setActivelyBackgroundLoading ()

Protected Attributes inherited from makVrv::DtModel
DtLoaderHandle *	myInLoadQueueHandle

DtDe &	myDe

const DtUniqueID	myUniqueId

DtUniqueID	myElementId

DtUniqueID	myParentSceneObjectID

bool	myColorBlendingEnabled

DtModelInstance *	myBackgroundModelInstance

float	myMinLastFrameDistance

TransformList	myTransforms

DtModelInstance *	myModelInstance

DtModelSetId	myModelSet

int	myVisualizerType

bool	myContributesToBound

bool	myIsPropFlag

float	myBlendColor [4]

bool	myVisibleFlag

DtVector	myPositionOffset

DtTaitBryan	myOrientationOffset

std::string	myModelDefinitionName

bool	myRequireModelInstance = true

Static Protected Attributes inherited from makVrv::DtModel
static bool	theInittedState

Constructor & Destructor Documentation

makVrv::Dt3DLineModel::Dt3DLineModel	(	DtDe &	de,
		DtUniqueID	id
	)

CTOR.

virtual makVrv::Dt3DLineModel::~Dt3DLineModel ( )

virtual

DTOR.

Member Function Documentation

virtual void makVrv::Dt3DLineModel::setStopOnTerrainIntersection ( bool enabled )

pure virtual

Set whether or not the line stops at the first terrain intersection.

Implemented in makVrv::DtOsgExtrudedLineModel.

virtual void makVrv::Dt3DLineModel::setOcclusionEnabled ( bool enabled )

pure virtual

Turn on or off occlusion of the line by other objects; default is true.

Implemented in makVrv::DtOsgExtrudedLineModel.

virtual void makVrv::Dt3DLineModel::setPickable ( bool pickable )

pure virtual

Turn on or off the ability to pick the line. Off by default.

Implemented in makVrv::DtOsgExtrudedLineModel.

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrvCore/Dt3DLineModel.h
