makVrv::DtEntityStateVisualizer Class Reference
vrvCore

Base class for entity state visualizers (using the DtModelVisualizer schema)

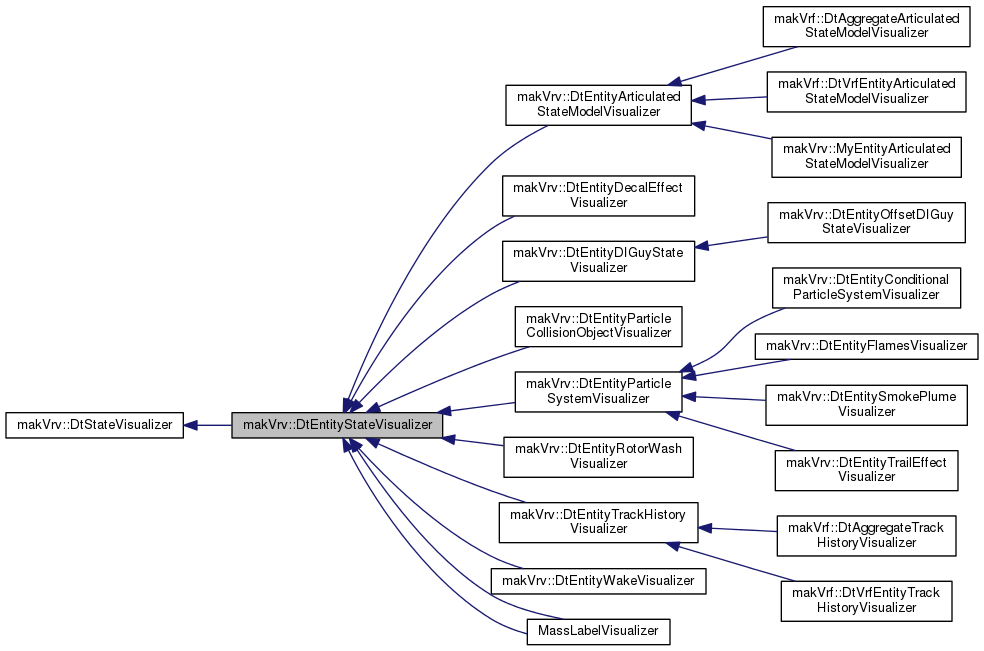

Inheritance diagram for makVrv::DtEntityStateVisualizer:
Inheritance graph
[legend]

Public Member Functions

 DtEntityStateVisualizer (DtBaseConnection &simulation, DtStateListener &listener, DtSceneObjectAgent *sceneObject, DtModelSetId modelSet)

virtual ~DtEntityStateVisualizer ()

virtual void setState (int stateNumber, int stateValue)

DtEntityStateListener & entityStateListener ()

- Public Member Functions inherited from makVrv::DtStateVisualizer
 DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, DtSceneObjectAgent *sceneObjectAgent, DtModelSetId modelSet)

virtual ~DtStateVisualizer ()

virtual DtModelSetId modelSet ()

virtual const TypeInfo & typeInfo () const =0

virtual void setSceneObjectAgent (DtSceneObjectAgent *sceneObject)

void setModelDefinition (const std::string &definition)

const std::string & modelDefinition () const

virtual void implementVisibility (bool visible)

virtual void initialize ()

virtual void slot_setSelected (bool b)

void setName (const std::string &)

const std::string & name () const

virtual void setPickable (bool)

virtual bool pickable () const

virtual DtUniqueID sceneObjectID () const

int visualizerType () const

virtual void setVisualizerDefinition (const DtVisualizerDefinition &)

DtStateListener & listener ()

const DtStateListener & listener () const

DtBaseConnection & simulation ()

void setDistribute (bool b)

bool distribute () const

virtual bool isVisible () const

virtual bool setVisualizerIsVisible (bool vis, DtVisualizerShowHideContext::VisualizerShowHideContext context)


Protected Member Functions

virtual void createModelAgents () override

virtual void destroyModelAgents () override

virtual void setModelDefinitionForAgents () override

- Protected Member Functions inherited from makVrv::DtStateVisualizer
virtual void connectToListenerSignals ()

virtual void makeVisible ()

virtual void setInitialValuesFromVisualizerDefinition ()

template<typename T , typename C >
void connectAndUpdate (boost::signalslib::signal< void(T)> &sig, void(C::*fp)(T), T val)


Protected Attributes

DtEntityStateListener * myEntityListener

- Protected Attributes inherited from makVrv::DtStateVisualizer
DtBaseConnection & mySimulation

DtStateListener & myListener

bool myDistributeFlag

DtUniqueID mySceneObjectID

std::string myName

std::string myModelDefinition

DtSignalConnectionManager myConnections

DtModelSetId myModelSet

int myVisualizerType

bool myPickable

bool myVisible

const DtVisualizerDefinition * myVisualizerDefinition

DtSceneObjectAgent * mySceneObjectAgent

bool myInitialInitializeDone

ShowHideContextVector myVisualizerShowHideContexts


Additional Inherited Members

- Public Types inherited from makVrv::DtStateVisualizer
enum  Type {
  AllVisualizerTypes = 0, EntityVisualizerType = 1, EnvironmentalVisualizerType, InteractionVisualizerType,
  AggregateVisualizerType, IntervisibilityVisualizerType, TacticalSmokeVisualizerType, UserType = 10000
}

- Protected Types inherited from makVrv::DtStateVisualizer
typedef std::vector
< DtVisualizerShowHideContext::VisualizerShowHideContext > 		ShowHideContextVector


Constructor & Destructor Documentation

makVrv::DtEntityStateVisualizer::DtEntityStateVisualizer ( DtBaseConnection &  simulation,
DtStateListener &  listener,
DtSceneObjectAgent *  sceneObject,
DtModelSetId  modelSet
)

CTOR.

virtual makVrv::DtEntityStateVisualizer::~DtEntityStateVisualizer ( )
virtual

DTOR.

Member Function Documentation

virtual void makVrv::DtEntityStateVisualizer::setState ( int  stateNumber,
int  stateValue
)
virtual

Override to set the attribute state of agents.

Reimplemented in makVrv::DtEntityArticulatedStateModelVisualizer.

DtEntityStateListener& makVrv::DtEntityStateVisualizer::entityStateListener ( )
inline
virtual void makVrv::DtEntityStateVisualizer::createModelAgents ( )
overrideprotectedvirtual

No-op must override pure virtual.

Implements makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtEntityDIGuyStateVisualizer, makVrv::DtEntityWakeVisualizer, makVrv::DtEntityArticulatedStateModelVisualizer, makVrv::DtEntityTrackHistoryVisualizer, makVrv::DtEntityOffsetDIGuyStateVisualizer, makVrv::DtEntityRotorWashVisualizer, makVrv::DtEntityConditionalParticleSystemVisualizer, makVrf::DtVrfEntityArticulatedStateModelVisualizer, makVrv::DtEntityTrailEffectVisualizer, makVrv::DtEntityDecalEffectVisualizer, makVrv::DtEntityParticleCollisionObjectVisualizer, makVrv::DtEntitySmokePlumeVisualizer, makVrv::DtEntityFlamesVisualizer, makVrv::DtEntityParticleSystemVisualizer, MassLabelVisualizer, and MassLabelVisualizer.

virtual void makVrv::DtEntityStateVisualizer::destroyModelAgents ( )
overrideprotectedvirtual

No-op must override pure virtual.

Implements makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtEntityDIGuyStateVisualizer, makVrv::DtEntityWakeVisualizer, makVrv::DtEntityArticulatedStateModelVisualizer, makVrv::DtEntityTrackHistoryVisualizer, makVrv::DtEntityRotorWashVisualizer, makVrv::DtEntityConditionalParticleSystemVisualizer, makVrv::DtEntityTrailEffectVisualizer, makVrv::DtEntityDecalEffectVisualizer, makVrv::DtEntityParticleCollisionObjectVisualizer, makVrv::DtEntityParticleSystemVisualizer, MassLabelVisualizer, and MassLabelVisualizer.

virtual void makVrv::DtEntityStateVisualizer::setModelDefinitionForAgents ( )
overrideprotectedvirtual

No-op must override pure virtual.

Implements makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtEntityDIGuyStateVisualizer, makVrv::DtEntityWakeVisualizer, makVrv::DtEntityArticulatedStateModelVisualizer, makVrv::DtEntityTrackHistoryVisualizer, makVrv::DtEntityRotorWashVisualizer, makVrv::DtEntityConditionalParticleSystemVisualizer, makVrv::DtEntityOffsetDIGuyStateVisualizer, makVrv::DtEntityTrailEffectVisualizer, makVrv::DtEntityDecalEffectVisualizer, makVrv::DtEntityParticleCollisionObjectVisualizer, makVrv::DtEntitySmokePlumeVisualizer, makVrv::DtEntityFlamesVisualizer, makVrv::DtEntityParticleSystemVisualizer, MassLabelVisualizer, and MassLabelVisualizer.

Member Data Documentation

DtEntityStateListener* makVrv::DtEntityStateVisualizer::myEntityListener
protected

Same as myListener, but casted for convenience.

The documentation for this class was generated from the following file:
