makVrv::DtStateVisualizer Class Reference

The DtStateVisualizer is an abstract class. Developers derive from this to create logic that "directs" things in the VRV framework.

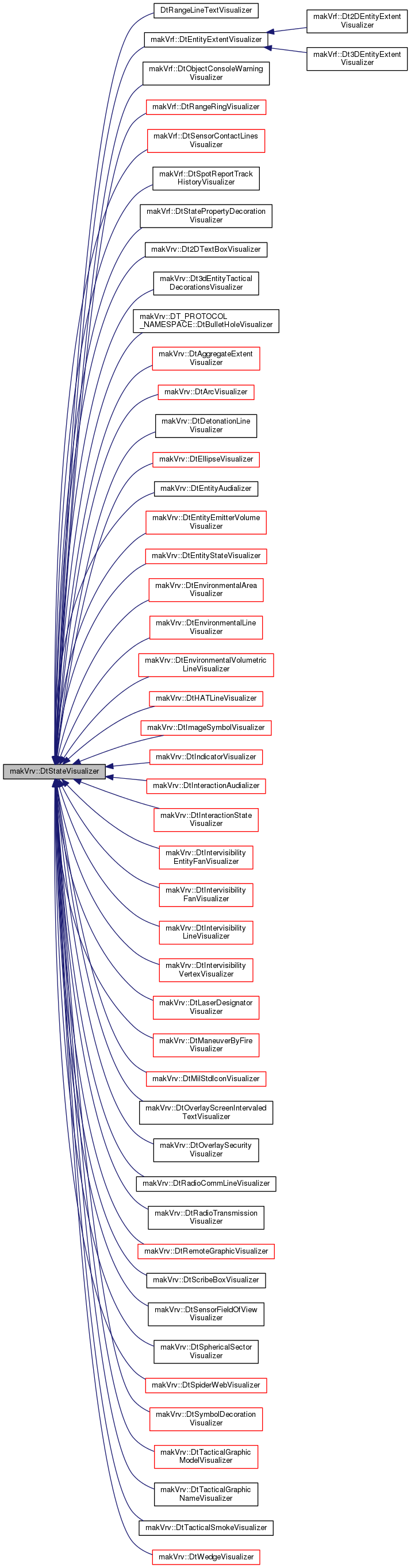

Inheritance diagram for makVrv::DtStateVisualizer:

Classes
struct	TypeInfo

Public Types
enum	Type {   AllVisualizerTypes = 0, EntityVisualizerType = 1, EnvironmentalVisualizerType, InteractionVisualizerType,   AggregateVisualizerType, IntervisibilityVisualizerType, TacticalSmokeVisualizerType, UserType = 10000 }

Public Member Functions
	DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, DtSceneObjectAgent *sceneObjectAgent, DtModelSetId modelSet)
virtual	~DtStateVisualizer ()
virtual DtModelSetId	modelSet ()
virtual void	createModelAgents ()=0
virtual void	destroyModelAgents ()=0
virtual const TypeInfo &	typeInfo () const =0
virtual void	setSceneObjectAgent (DtSceneObjectAgent *sceneObject)
void	setModelDefinition (const std::string &definition)
const std::string &	modelDefinition () const
virtual void	implementVisibility (bool visible)
virtual void	initialize ()
virtual void	slot_setSelected (bool b)
void	setName (const std::string &)
const std::string &	name () const
virtual void	setPickable (bool)
virtual bool	pickable () const
virtual DtUniqueID	sceneObjectID () const
int	visualizerType () const
virtual void	setVisualizerDefinition (const DtVisualizerDefinition &)
DtStateListener &	listener ()
const DtStateListener &	listener () const
DtBaseConnection &	simulation ()
void	setDistribute (bool b)
bool	distribute () const
virtual bool	isVisible () const
virtual bool	setVisualizerIsVisible (bool vis, DtVisualizerShowHideContext::VisualizerShowHideContext context)

Protected Types
typedef std::vector < DtVisualizerShowHideContext::VisualizerShowHideContext >	ShowHideContextVector

Protected Member Functions
virtual void	setModelDefinitionForAgents ()=0
virtual void	connectToListenerSignals ()
virtual void	makeVisible ()
virtual void	setInitialValuesFromVisualizerDefinition ()
template<typename T , typename C >
void	connectAndUpdate (boost::signalslib::signal< void(T)> &sig, void(C::*fp)(T), T val)

Protected Attributes
DtBaseConnection &	mySimulation
DtStateListener &	myListener
bool	myDistributeFlag
DtUniqueID	mySceneObjectID
std::string	myName
std::string	myModelDefinition
DtSignalConnectionManager	myConnections
DtModelSetId	myModelSet
int	myVisualizerType
bool	myPickable
bool	myVisible
const DtVisualizerDefinition *	myVisualizerDefinition
DtSceneObjectAgent *	mySceneObjectAgent
bool	myInitialInitializeDone
ShowHideContextVector	myVisualizerShowHideContexts

Private Member Functions
	DtStateVisualizer ()=delete
	DtStateVisualizer (const DtStateVisualizer &)=delete
DtStateVisualizer &	operator= (const DtStateVisualizer &)=delete

Member Typedef Documentation

typedef std::vector<DtVisualizerShowHideContext::VisualizerShowHideContext> makVrv::DtStateVisualizer::ShowHideContextVector

protected

Member Enumeration Documentation

enum makVrv::DtStateVisualizer::Type

Visualizer class types that are supportable via visualizers. Each visualizer can be created by an instance visualizer that supports the creation of matching class types. This enum is linked with DtElementDefinitionTypeManager::BuiltInElementTypes.

Enumerator
AllVisualizerTypes
EntityVisualizerType
EnvironmentalVisualizerType
InteractionVisualizerType
AggregateVisualizerType
IntervisibilityVisualizerType
TacticalSmokeVisualizerType
UserType

Constructor & Destructor Documentation

makVrv::DtStateVisualizer::DtStateVisualizer	(	DtBaseConnection &	connection,
		DtStateListener &	listener,
		DtSceneObjectAgent *	sceneObjectAgent,
		DtModelSetId	modelSet
	)

CTOR that takes a scene object agent.

virtual makVrv::DtStateVisualizer::~DtStateVisualizer ( )

virtual

DTOR.

makVrv::DtStateVisualizer::DtStateVisualizer ( )

privatedelete

Default constructor.

Note

Not implemented

makVrv::DtStateVisualizer::DtStateVisualizer ( const DtStateVisualizer &  )

privatedelete

Copy constructor.

Note

Not implemented

Member Function Documentation

virtual DtModelSetId makVrv::DtStateVisualizer::modelSet ( )

virtual

Return the visualizer's model set enum.

virtual void makVrv::DtStateVisualizer::createModelAgents ( )

pure virtual

Override to create model agents that will be used to display data from the listener.

Implemented in makVrv::DtSpiderWebVisualizer, makVrv::DtMilStdIconVisualizer, makVrv::DtEntityDIGuyStateVisualizer, makVrv::DtEntityWakeVisualizer, makVrv::DtEnvironmentalLineVisualizer, makVrv::Dt2DSpiderWebVisualizer, makVrv::DtArcVisualizer, makVrv::DtHATLineVisualizer, makVrv::DtOverlaySecurityVisualizer, makVrv::DtEllipseVisualizer, makVrv::DtTacticalGraphic2DModelVisualizer, makVrv::DtImageSymbolVisualizer, makVrv::DtEnvironmentalAreaVisualizer, makVrv::Dt3DEnvironmentalLineVisualizer, makVrv::DtSphericalSectorVisualizer, makVrv::DtEnvironmentalVolumetricLineVisualizer, makVrv::DtSymbolDecorationVisualizer, makVrv::Dt3DEllipseVisualizer, makVrv::DtEntityArticulatedStateModelVisualizer, makVrv::DtTacticalGraphicNameVisualizer, makVrv::Dt3DLineStateVisualizer, makVrv::Dt2DEnvironmentalLineVisualizer, makVrf::DtRangeRingVisualizer, makVrf::DtVrf3DAggregateExtentVisualizer, makVrv::DtIntervisibilityVertexVisualizer, makVrv::DtDecalProjectorEnvironmentalLineVisualizer, makVrv::Dt3DAirCorridorLineVisualizer, makVrv::Dt3DEnvironmentalAreaVisualizer, makVrv::DtEnvironmentalIndicatorVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtBulletHoleVisualizer, makVrf::DtVrf2DAggregateExtentVisualizer, makVrv::Dt2DLineStateVisualizer, makVrv::Dt3DEnvironmentalVolumetricLineVisualizer, makVrv::DtAggregateMilStdIconVisualizer, makVrv::Dt2DArcVisualizer, makVrv::Dt2DEllipseVisualizer, makVrv::DtCylinderStateVisualizer, makVrv::Dt2DAirCorridorLineVisualizer, makVrv::Dt2DTextBoxVisualizer, makVrv::Dt2DWedgeVisualizer, makVrv::DtEntityMilStdIconVisualizer, makVrv::DtEntityTrackHistoryVisualizer, makVrv::Dt2DEnvironmentalAreaVisualizer, makVrv::DtEntityOffsetDIGuyStateVisualizer, makVrv::DtEntityRotorWashVisualizer, makVrv::Dt2DRectangleStateVisualizer, makVrv::Dt2DManeuverByFireVisualizer, makVrv::DtIntervisibilityFanVisualizer, makVrv::DtAggregateExtentVisualizer, makVrv::DtEntityConditionalParticleSystemVisualizer, makVrf::DtVrfEntityArticulatedStateModelVisualizer, makVrv::DtEnvironmentalHATLineVisualizer, makVrv::Dt3DTextStateVisualizer, makVrv::DtAttributeGroupStateVisualizer, makVrv::DtDetonationLineVisualizer, makVrv::DtIntervisibilityLineVisualizer, makVrf::DtStatePropertyDecorationVisualizer, makVrv::Dt2DEllipseStateVisualizer, makVrv::DtEntityTrailEffectVisualizer, makVrv::DtIntervisibilityEntityFanVisualizer, makVrv::DtEllipsoidStateVisualizer, makVrf::DtEntityExtentVisualizer, makVrv::DtEnvironmentalMilStdIconVisualizer, makVrv::Dt3dEntityTacticalDecorationsVisualizer, makVrv::DtCuboidStateVisualizer, makVrv::DtDetonationInteractionVisualizer, makVrv::DtEntityDecalEffectVisualizer, makVrv::Dt2DEnvironmentalVolumetricLineVisualizer, makVrv::Dt2DTextStateVisualizer, makVrv::DtEntityEmitterVolumeVisualizer, makVrv::DtEntityIndicatorVisualizer, makVrv::DtIndicatorVisualizer, makVrv::DtRadioTransmissionVisualizer, makVrv::DtScribeBoxVisualizer, makVrf::DtSpotReportTrackHistoryVisualizer, makVrf::DtSensorContactLinesVisualizer, makVrv::DtEntityHATLineVisualizer, makVrv::DtEntityParticleCollisionObjectVisualizer, makVrv::DtEntitySmokePlumeVisualizer, makVrv::Dt3DAreaStateVisualizer, makVrv::DtRadioCommLineVisualizer, makVrf::Dt3DEntityExtentVisualizer, makVrv::Dt2DAggregateExtentVisualizer, makVrv::DtOverlayScreenIntervaledTextVisualizer, makVrv::Dt3DAggregateExtentVisualizer, makVrv::Dt2DTriangleStateVisualizer, makVrv::DtEntityFlamesVisualizer, makVrv::DtEntitySymbolDecorationVisualizer, makVrv::DtTacticalGraphicImageSymbolVisualizer, makVrv::DtIffReplyInteractionVisualizer, makVrv::DtTacticalGraphicModelVisualizer, makVrv::DtEntityAudializer, makVrf::Dt2DEntityExtentVisualizer, makVrv::DtDetonationAudializer, makVrf::DtObjectConsoleWarningVisualizer, makVrv::DtLaserDesignatorVisualizer, makVrv::DtAggregateImageSymbolVisualizer, makVrv::DtTacticalSmokeVisualizer, makVrf::Dt2DIntervisibilitySensorFanVisualizer, makVrv::DtFireInteractionVisualizer, makVrv::DtSensorFieldOfViewVisualizer, DtRangeLineTextVisualizer, makVrv::Dt2DIntervisibilityEntityFanVisualizer, makVrv::DtEntityParticleSystemVisualizer, makVrv::Dt3DIntervisibilityEntityFanVisualizer, makVrv::Dt2DRangeLineVisualizer, makVrv::DtEntityStateVisualizer, makVrf::Dt3DIntervisibilitySensorFanVisualizer, makVrv::Dt2DIntervisibilityFanVisualizer, makVrv::DtInteractionAudializer, makVrv::DtInteractionStateVisualizer, makVrf::Dt3DSensorContactLinesVisualizer, makVrf::DtIntervisibilitySensorFanVisualizer, MassLabelVisualizer, and MassLabelVisualizer.

virtual void makVrv::DtStateVisualizer::destroyModelAgents ( )

pure virtual

Destroys all currently created definitions.

Implemented in makVrv::DtSpiderWebVisualizer, makVrv::DtMilStdIconVisualizer, makVrv::DtEntityDIGuyStateVisualizer, makVrv::Dt2DSpiderWebVisualizer, makVrv::DtEntityWakeVisualizer, makVrv::DtEnvironmentalLineVisualizer, makVrv::DtHATLineVisualizer, makVrv::DtOverlaySecurityVisualizer, makVrv::DtArcVisualizer, makVrv::DtEllipseVisualizer, makVrv::DtTacticalGraphic2DModelVisualizer, makVrv::DtImageSymbolVisualizer, makVrv::DtEnvironmentalAreaVisualizer, makVrv::Dt3DEnvironmentalLineVisualizer, makVrv::DtSphericalSectorVisualizer, makVrv::DtSymbolDecorationVisualizer, makVrf::Dt2DRangeRingVisualizer, makVrv::DtEnvironmentalVolumetricLineVisualizer, makVrv::Dt3DEllipseVisualizer, makVrv::DtEntityArticulatedStateModelVisualizer, makVrv::DtTacticalGraphicNameVisualizer, makVrv::Dt3DLineStateVisualizer, makVrv::Dt2DEnvironmentalLineVisualizer, makVrv::Dt2DLineStateVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtBulletHoleVisualizer, makVrv::DtDecalProjectorEnvironmentalLineVisualizer, makVrv::DtIntervisibilityVertexVisualizer, makVrv::Dt3DAirCorridorLineVisualizer, makVrv::Dt3DEnvironmentalAreaVisualizer, makVrv::Dt3DEnvironmentalVolumetricLineVisualizer, makVrv::DtEnvironmentalIndicatorVisualizer, makVrv::Dt2DArcVisualizer, makVrv::Dt2DEllipseVisualizer, makVrf::DtRangeRingVisualizer, makVrv::Dt2DRectangleStateVisualizer, makVrv::Dt2DAirCorridorLineVisualizer, makVrv::Dt2DEnvironmentalAreaVisualizer, makVrv::Dt2DTextBoxVisualizer, makVrv::DtCylinderStateVisualizer, makVrv::Dt2DWedgeVisualizer, makVrv::DtEntityTrackHistoryVisualizer, makVrv::DtEntityRotorWashVisualizer, makVrv::Dt3DTextStateVisualizer, makVrv::Dt2DEllipseStateVisualizer, makVrv::Dt2DManeuverByFireVisualizer, makVrv::DtAggregateExtentVisualizer, makVrv::DtEnvironmentalMilStdIconVisualizer, makVrv::DtIntervisibilityFanVisualizer, makVrf::DtRangeSphereVisualizer, makVrv::DtIntervisibilityLineVisualizer, makVrv::DtEntityConditionalParticleSystemVisualizer, makVrv::DtAttributeGroupStateVisualizer, makVrv::DtTacticalGraphicImageSymbolVisualizer, makVrv::Dt2DTextStateVisualizer, makVrv::DtDetonationLineVisualizer, makVrf::DtStatePropertyDecorationVisualizer, makVrv::DtEllipsoidStateVisualizer, makVrv::DtEntityTrailEffectVisualizer, makVrv::DtIntervisibilityEntityFanVisualizer, makVrf::DtEntityExtentVisualizer, makVrv::Dt3dEntityTacticalDecorationsVisualizer, makVrv::Dt3DAreaStateVisualizer, makVrv::DtCuboidStateVisualizer, makVrv::DtEntityEmitterVolumeVisualizer, makVrv::DtRadioTransmissionVisualizer, makVrv::Dt2DEnvironmentalVolumetricLineVisualizer, makVrv::DtEntityDecalEffectVisualizer, makVrv::DtIndicatorVisualizer, makVrv::Dt2DTriangleStateVisualizer, makVrf::DtSensorContactLinesVisualizer, makVrv::DtEntityIndicatorVisualizer, makVrv::DtEntityParticleCollisionObjectVisualizer, makVrv::DtRadioCommLineVisualizer, makVrv::DtScribeBoxVisualizer, makVrf::Dt3DEntityExtentVisualizer, makVrf::DtSpotReportTrackHistoryVisualizer, makVrv::Dt2DAggregateExtentVisualizer, makVrv::DtOverlayScreenIntervaledTextVisualizer, makVrv::Dt3DAggregateExtentVisualizer, makVrf::Dt2DIntervisibilitySensorFanVisualizer, makVrv::DtTacticalGraphicModelVisualizer, makVrv::DtEntityAudializer, makVrf::Dt2DEntityExtentVisualizer, makVrv::DtLaserDesignatorVisualizer, makVrf::DtObjectConsoleWarningVisualizer, makVrv::DtSensorFieldOfViewVisualizer, makVrv::DtTacticalSmokeVisualizer, makVrf::Dt3DIntervisibilitySensorFanVisualizer, DtRangeLineTextVisualizer, makVrv::Dt2DIntervisibilityFanVisualizer, makVrv::DtEntityParticleSystemVisualizer, makVrv::Dt2DIntervisibilityEntityFanVisualizer, makVrv::Dt3DIntervisibilityEntityFanVisualizer, makVrv::Dt3DIntervisibilityFanVisualizer, makVrv::DtEntityStateVisualizer, makVrv::DtInteractionAudializer, makVrv::Dt3DLaserDesignatorVisualizer, makVrv::DtInteractionStateVisualizer, MassLabelVisualizer, MassLabelVisualizer, and makVrv::Dt2DLaserDesignatorVisualizer.

virtual const TypeInfo& makVrv::DtStateVisualizer::typeInfo ( ) const

pure virtual

Get the type info. Typically the implementation of this function should call a static function called theTypeInfo.

Implemented in makVrv::DtEntityDIGuyStateVisualizer, makVrv::DtEntityWakeVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtBulletHoleVisualizer, makVrv::DtEntityArticulatedStateModelVisualizer, makVrv::DtTacticalGraphicNameVisualizer, makVrf::Dt2DRangeRingVisualizer, makVrv::DtAggregateMilStdIconVisualizer, makVrv::Dt3DLineStateVisualizer, makVrv::DtIntervisibilityVertexVisualizer, makVrv::DtEnvironmentalIndicatorVisualizer, makVrv::Dt2DLineStateVisualizer, makVrv::DtCylinderStateVisualizer, makVrv::DtRadioTransmissionVisualizer, makVrv::DtEntityRotorWashVisualizer, makVrv::DtRadioCommLineVisualizer, makVrv::DtEntityConditionalParticleSystemVisualizer, makVrv::DtAttributeGroupStateVisualizer, makVrv::DtEntityOffsetDIGuyStateVisualizer, makVrv::DtEntityParticleSystemVisualizer, makVrv::Dt2DRectangleStateVisualizer, makVrv::DtDetonationLineVisualizer, makVrv::DtEntityTrailEffectVisualizer, makVrv::Dt2DTextBoxVisualizer, makVrv::DtAggregateSymbolDecorationVisualizer, makVrv::DtEntityImageSymbolVisualizer, makVrv::DtAggregateImageSymbolVisualizer, makVrv::DtEntityDecalEffectVisualizer, makVrv::DtEnvironmentalMilStdIconVisualizer, makVrv::DtEntityAudializer, makVrv::DtEllipsoidStateVisualizer, makVrv::DtEntityTrackHistoryVisualizer, makVrv::DtIffReplyInteractionVisualizer, makVrv::Dt3DTextStateVisualizer, makVrv::DtCuboidStateVisualizer, makVrv::Dt2DEllipseStateVisualizer, makVrv::Dt2DLaserDesignatorVisualizer, makVrv::DtEntityIndicatorVisualizer, makVrv::Dt3DLaserDesignatorVisualizer, makVrv::DtEntityParticleCollisionObjectVisualizer, makVrv::DtSensorFieldOfViewVisualizer, makVrv::Dt3dEntityTacticalDecorationsVisualizer, makVrv::DtEntitySymbolDecorationVisualizer, makVrf::DtRangeSphereVisualizer, makVrv::Dt2DManeuverByFireVisualizer, makVrv::Dt2DTextStateVisualizer, makVrv::DtDetonationInteractionVisualizer, makVrv::DtEntitySmokePlumeVisualizer, makVrv::DtOverlayScreenIntervaledTextVisualizer, makVrv::DtScribeBoxVisualizer, makVrv::DtEnvironmentalHATLineVisualizer, makVrv::DtSphericalSectorVisualizer, makVrv::DtEntityHATLineVisualizer, makVrv::Dt2DEntityEmitterVolumeVisualizer, makVrv::Dt2DSpiderWebVisualizer, makVrv::Dt3DAreaStateVisualizer, makVrv::Dt3DEllipseVisualizer, makVrv::DtEntityFlamesVisualizer, makVrv::DtEntityMilStdIconVisualizer, makVrf::DtAggregateArticulatedStateModelVisualizer, makVrv::Dt2DAggregateExtentVisualizer, makVrv::Dt2DArcVisualizer, makVrv::DtTacticalGraphicImageSymbolVisualizer, makVrf::DtSpotReportTrackHistoryVisualizer, makVrv::Dt3DAggregateExtentVisualizer, makVrv::DtOverlaySecurityVisualizer, makVrv::Dt2DEnvironmentalAreaVisualizer, makVrv::Dt3DEnvironmentalAreaVisualizer, makVrv::DtTacticalGraphicSymbolDecorationVisualizer, makVrv::Dt2DWedgeVisualizer, makVrv::Dt3DEnvironmentalLineVisualizer, makVrv::Dt2DTriangleStateVisualizer, makVrv::Dt3DAggregateMilStdIconVisualizer, makVrv::Dt3DEnvironmentalVolumetricLineVisualizer, makVrv::DtDetonationAudializer, makVrv::Dt2DEllipseVisualizer, makVrv::Dt2DEnvironmentalVolumetricLineVisualizer, makVrv::DtTacticalGraphic2DModelVisualizer, makVrv::DtTacticalGraphicModelVisualizer, makVrf::Dt3DEntityExtentVisualizer, makVrv::Dt3DEntityEmitterVolumeVisualizer, makVrf::Dt2DEntityExtentVisualizer, makVrv::DtDecalProjectorEnvironmentalLineVisualizer, makVrv::DtTacticalSmokeVisualizer, makVrv::Dt2DEnvironmentalLineVisualizer, makVrv::DtFireInteractionVisualizer, makVrv::Dt2DAggregateMilStdIconVisualizer, makVrv::Dt2DAirCorridorLineVisualizer, makVrv::Dt3DAirCorridorLineVisualizer, makVrf::Dt2DIntervisibilitySensorFanVisualizer, MassLabelVisualizer, MassLabelVisualizer, makVrf::DtStatePropertyDecorationVisualizer, makVrv::DtAggregateIndicatorVisualizer, DtRangeLineTextVisualizer, makVrf::DtObjectConsoleWarningVisualizer, makVrf::DtAggregateTrackHistoryVisualizer, makVrf::Dt3DIntervisibilitySensorFanVisualizer, makVrv::Dt2DIntervisibilityLineVisualizer, makVrv::Dt2DIntervisibilityEntityFanVisualizer, makVrv::DtFireInteractionAudializer, makVrv::Dt2DRangeLineVisualizer, makVrf::Dt2DSensorContactLinesVisualizer, makVrv::Dt2DIntervisibilityFanVisualizer, makVrv::Dt3DIntervisibilityEntityFanVisualizer, makVrv::Dt3DIntervisibilityLineVisualizer, makVrv::Dt3DIntervisibilityFanVisualizer, and makVrf::Dt3DSensorContactLinesVisualizer.

virtual void makVrv::DtStateVisualizer::setSceneObjectAgent ( DtSceneObjectAgent *  sceneObject )

virtual

void makVrv::DtStateVisualizer::setModelDefinition

(

const std::string &

definition

)

Sets the model definition and creates agent(s) based on that definition.

const std::string& makVrv::DtStateVisualizer::modelDefinition

(

)

const

Gets the current model definition.

virtual void makVrv::DtStateVisualizer::implementVisibility ( bool  visible )

virtual

Wrap some of the show/hide functionality so that it can be overloaded (ex. so that DtEntityoffsetDIGuyStateVisualizer does no have to create/destroy model agents)

Reimplemented in makVrv::DtSymbolDecorationVisualizer, makVrv::Dt3DEnvironmentalLineVisualizer, makVrv::Dt3DEnvironmentalAreaVisualizer, makVrv::DtDecalProjectorEnvironmentalLineVisualizer, makVrv::Dt3DEnvironmentalVolumetricLineVisualizer, makVrv::DtEnvironmentalIndicatorVisualizer, makVrf::DtVrfGuiEnvironmentalMilStdIconVisualizer, makVrf::DtRangeRingVisualizer, makVrf::DtVrfGuiEntityMilStdIconVisualizer, makVrf::DtEntityExtentVisualizer, makVrv::DtEntityOffsetDIGuyStateVisualizer, makVrf::DtSensorContactLinesVisualizer, makVrf::DtVrfGui2DAggregateMilStdIconVisualizer, makVrv::DtIndicatorVisualizer, and makVrf::DtVrfGuiIntervisibilityVertexVisualizer.

virtual void makVrv::DtStateVisualizer::initialize ( )

virtual

Initialize the visualizer.

Reimplemented in makVrv::DtSymbolDecorationVisualizer, makVrv::DtLaserDesignatorVisualizer, makVrf::DtVrfGui3DAggregateMilStdIconVisualizer, makVrf::DtVrf3DAggregateExtentVisualizer, makVrf::DtVrfEntityTrackHistoryVisualizer, makVrf::DtVrf2DAggregateExtentVisualizer, makVrv::DtTacticalGraphicNameVisualizer, makVrf::DtRangeRingVisualizer, makVrf::DtVrfGuiEnvironmentalMilStdIconVisualizer, makVrf::DtEntityExtentVisualizer, makVrf::Dt2DRangeRingVisualizer, makVrf::DtVrfGuiEntityMilStdIconVisualizer, makVrf::DtStatePropertyDecorationVisualizer, makVrv::Dt3dEntityTacticalDecorationsVisualizer, makVrv::DtEntityDIGuyStateVisualizer, makVrf::DtRangeSphereVisualizer, makVrf::DtSpotReportTrackHistoryVisualizer, makVrv::DtEntityEmitterVolumeVisualizer, makVrv::Dt2DTextBoxVisualizer, makVrf::DtSensorContactLinesVisualizer, makVrv::DtManeuverByFireVisualizer, makVrv::DtEntityRotorWashVisualizer, makVrv::DtSphericalSectorVisualizer, makVrv::DtEntityConditionalParticleSystemVisualizer, makVrv::DtSpiderWebVisualizer, makVrf::DtObjectConsoleWarningVisualizer, makVrv::DtOverlaySecurityVisualizer, makVrf::DtIntervisibilitySensorFanVisualizer, makVrv::DtArcVisualizer, makVrv::DtDetonationLineVisualizer, makVrv::DtMilStdIconVisualizer, makVrv::DtEntityArticulatedStateModelVisualizer, makVrv::DtEntityParticleSystemVisualizer, makVrv::DtIffReplyInteractionVisualizer, makVrv::DtTacticalGraphic2DModelVisualizer, makVrv::DtDetonationInteractionVisualizer, makVrv::DtHATLineVisualizer, makVrv::DtEntityAudializer, makVrv::DtEnvironmentalVolumetricLineVisualizer, makVrv::DtWedgeVisualizer, makVrv::DtEnvironmentalAreaVisualizer, makVrv::Dt3DEllipseVisualizer, makVrv::DtAggregateSymbolDecorationVisualizer, makVrv::DtEntityImageSymbolVisualizer, makVrv::DtEntityMilStdIconVisualizer, makVrv::DtEntityParticleCollisionObjectVisualizer, makVrv::DtEntitySymbolDecorationVisualizer, makVrv::DtEntityTrailEffectVisualizer, makVrv::DtImageSymbolVisualizer, makVrv::DtOverlayScreenIntervaledTextVisualizer, makVrv::DtAggregateImageSymbolVisualizer, makVrv::DtTacticalGraphicImageSymbolVisualizer, makVrf::Dt2DIntervisibilitySensorFanVisualizer, makVrf::DtVrfGui2DAggregateMilStdIconVisualizer, makVrv::DtEntityTrackHistoryVisualizer, makVrv::DtEntityWakeVisualizer, makVrv::DtEnvironmentalMilStdIconVisualizer, makVrf::DtVrfGuiIntervisibilityVertexVisualizer, makVrv::DtAggregateMilStdIconVisualizer, makVrv::DtEntityDecalEffectVisualizer, makVrv::DtIndicatorVisualizer, makVrv::DtTacticalGraphicSymbolDecorationVisualizer, makVrv::Dt3DEnvironmentalLineVisualizer, makVrv::DtEllipseVisualizer, makVrv::Dt3DEnvironmentalVolumetricLineVisualizer, makVrv::DtEntityIndicatorVisualizer, makVrv::DtEnvironmentalHATLineVisualizer, makVrv::DtAggregateExtentVisualizer, makVrv::DtEntityFlamesVisualizer, makVrv::DtEntityHATLineVisualizer, makVrv::DtEnvironmentalIndicatorVisualizer, makVrv::DtTacticalGraphicModelVisualizer, makVrf::DtAggregateTrackHistoryVisualizer, makVrv::DtDetonationAudializer, makVrv::Dt2DEnvironmentalAreaVisualizer, makVrv::Dt3DEnvironmentalAreaVisualizer, makVrv::Dt3DAggregateMilStdIconVisualizer, makVrv::DtDecalProjectorEnvironmentalLineVisualizer, makVrv::Dt2DRangeLineVisualizer, makVrv::DtEntitySmokePlumeVisualizer, makVrv::DtEnvironmentalLineVisualizer, makVrv::Dt2DAirCorridorLineVisualizer, makVrv::Dt3DAirCorridorLineVisualizer, makVrf::DtVrfTacticalGraphicImageSymbolVisualizer, makVrv::MyEntityArticulatedStateModelVisualizer, makVrv::DtFireInteractionAudializer, and makVrv::DtRemoteGraphicVisualizer.

virtual void makVrv::DtStateVisualizer::slot_setSelected ( bool  b )

inlinevirtual

This can be overridden by visualizers that need to be notified of selection changes; it is also used when a new visualizer is added to ensure a correct initial selection state for those that care.

Reimplemented in makVrv::DtEntityDIGuyStateVisualizer, makVrv::DtTacticalGraphic2DModelVisualizer, makVrv::DtHATLineVisualizer, makVrv::DtOverlaySecurityVisualizer, makVrv::DtSymbolDecorationVisualizer, makVrv::DtWedgeVisualizer, makVrv::DtManeuverByFireVisualizer, makVrv::DtArcVisualizer, makVrv::DtOverlayScreenIntervaledTextVisualizer, makVrf::DtRangeRingVisualizer, makVrv::DtEllipseVisualizer, makVrv::DtSpiderWebVisualizer, makVrv::DtEnvironmentalVolumetricLineVisualizer, makVrv::DtSphericalSectorVisualizer, makVrv::DtEnvironmentalLineVisualizer, makVrv::DtEnvironmentalAreaVisualizer, makVrv::DtIntervisibilityVertexVisualizer, makVrf::DtSpotReportTrackHistoryVisualizer, makVrv::DtEntityIndicatorVisualizer, makVrv::DtMilStdIconVisualizer, makVrv::DtIntervisibilityEntityFanVisualizer, makVrv::DtIntervisibilityFanVisualizer, makVrv::DtEntityHATLineVisualizer, makVrv::DtIntervisibilityLineVisualizer, makVrv::DtAggregateExtentVisualizer, makVrv::DtIndicatorVisualizer, makVrf::DtEntityExtentVisualizer, makVrf::DtStatePropertyDecorationVisualizer, makVrv::DtEnvironmentalHATLineVisualizer, makVrf::DtSensorContactLinesVisualizer, makVrv::DtImageSymbolVisualizer, makVrv::Dt2DEnvironmentalLineVisualizer, makVrv::DtScribeBoxVisualizer, and makVrf::DtIntervisibilitySensorFanVisualizer.

void makVrv::DtStateVisualizer::setName

(

const std::string &

)

Internal name of state visualizer. Use in instance visualizer map.

const std::string& makVrv::DtStateVisualizer::name

(

)

const

virtual void makVrv::DtStateVisualizer::setPickable ( bool  )

virtual

Sets pickable state.

Reimplemented in makVrv::DtMilStdIconVisualizer, makVrv::DtOverlaySecurityVisualizer, makVrv::DtTacticalGraphic2DModelVisualizer, makVrv::DtEllipseVisualizer, makVrv::DtEnvironmentalAreaVisualizer, makVrv::Dt3DEllipseVisualizer, makVrv::DtSphericalSectorVisualizer, makVrv::Dt2DAirCorridorLineVisualizer, makVrv::Dt3DAirCorridorLineVisualizer, makVrv::DtImageSymbolVisualizer, makVrv::Dt2DEnvironmentalLineVisualizer, makVrv::Dt2DManeuverByFireVisualizer, makVrv::Dt2DEllipseVisualizer, makVrv::Dt2DSpiderWebVisualizer, makVrv::Dt2DArcVisualizer, makVrv::Dt2DWedgeVisualizer, makVrv::Dt3DEnvironmentalLineVisualizer, and makVrv::DtDecalProjectorEnvironmentalLineVisualizer.

virtual bool makVrv::DtStateVisualizer::pickable ( ) const

virtual

virtual DtUniqueID makVrv::DtStateVisualizer::sceneObjectID ( ) const

inlinevirtual

int makVrv::DtStateVisualizer::visualizerType ( ) const

inline

virtual void makVrv::DtStateVisualizer::setVisualizerDefinition ( const DtVisualizerDefinition &  )

virtual

Set any other additional visualizer information from the visual record. Store the visualizer definition as a member variable for initialize to use.

Reimplemented in makVrf::DtVrfEntityTrackHistoryVisualizer, makVrf::Dt2DRangeRingVisualizer, makVrf::DtSensorContactLinesVisualizer, makVrf::Dt3DEntityExtentVisualizer, makVrf::Dt2DEntityExtentVisualizer, and DtRangeLineTextVisualizer.

DtStateListener& makVrv::DtStateVisualizer::listener ( )

inline

const DtStateListener& makVrv::DtStateVisualizer::listener ( ) const

inline

DtBaseConnection& makVrv::DtStateVisualizer::simulation ( )

inline

Get the connection for this visualizer.

void makVrv::DtStateVisualizer::setDistribute ( bool  b )

inline

Whether or not to distribute over the network.

bool makVrv::DtStateVisualizer::distribute ( ) const

inline

virtual bool makVrv::DtStateVisualizer::isVisible ( ) const

virtual

Indicate whether the contents of this visualizer are visible.

virtual bool makVrv::DtStateVisualizer::setVisualizerIsVisible ( bool  vis, DtVisualizerShowHideContext::VisualizerShowHideContext  context  )

virtual

Shows or hides a visualizer with a specific show/hide context.

virtual void makVrv::DtStateVisualizer::setModelDefinitionForAgents ( )

protectedpure virtual

Sets model definition for all the agents that this visualizer might be using. If model agents are not created, should create them. Should not call this directly. Called by initialize.

Implemented in makVrv::DtSpiderWebVisualizer, makVrv::DtTacticalGraphicNameVisualizer, makVrv::DtEntityDIGuyStateVisualizer, makVrv::DtHATLineVisualizer, makVrv::DtEntityWakeVisualizer, makVrv::DtEnvironmentalLineVisualizer, makVrv::Dt2DSpiderWebVisualizer, makVrv::DtOverlaySecurityVisualizer, makVrv::DtTacticalGraphic2DModelVisualizer, makVrv::DtEllipseVisualizer, makVrv::DtIntervisibilityVertexVisualizer, makVrv::DtOverlayScreenIntervaledTextVisualizer, makVrv::DtArcVisualizer, makVrv::Dt3DEnvironmentalLineVisualizer, makVrv::DtSphericalSectorVisualizer, makVrv::DtSymbolDecorationVisualizer, makVrv::Dt3DEllipseVisualizer, makVrv::DtEnvironmentalAreaVisualizer, makVrv::Dt3DLineStateVisualizer, makVrv::DtEntityArticulatedStateModelVisualizer, makVrv::Dt2DEnvironmentalLineVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtBulletHoleVisualizer, makVrv::Dt2DLineStateVisualizer, makVrv::DtDecalProjectorEnvironmentalLineVisualizer, makVrv::Dt3DAirCorridorLineVisualizer, makVrv::Dt3DEnvironmentalAreaVisualizer, makVrv::Dt3DEnvironmentalVolumetricLineVisualizer, makVrv::Dt2DArcVisualizer, makVrv::Dt2DEllipseVisualizer, makVrv::Dt2DRectangleStateVisualizer, makVrv::DtEntityTrackHistoryVisualizer, makVrv::Dt2DAirCorridorLineVisualizer, makVrv::Dt2DTextBoxVisualizer, makVrv::Dt2DWedgeVisualizer, makVrv::DtCylinderStateVisualizer, makVrv::DtEntityRotorWashVisualizer, makVrv::DtSensorFieldOfViewVisualizer, makVrv::Dt3DTextStateVisualizer, makVrf::DtRangeRingVisualizer, makVrv::Dt2DEnvironmentalAreaVisualizer, makVrv::DtDetonationLineVisualizer, makVrv::Dt2DEllipseStateVisualizer, makVrv::Dt2DManeuverByFireVisualizer, makVrv::DtAggregateMilStdIconVisualizer, makVrv::DtAggregateExtentVisualizer, makVrv::DtIndicatorVisualizer, makVrv::DtIntervisibilityLineVisualizer, makVrv::DtRadioTransmissionVisualizer, makVrv::DtEntityMilStdIconVisualizer, makVrv::DtIntervisibilityFanVisualizer, makVrv::Dt2DTextStateVisualizer, makVrv::DtAttributeGroupStateVisualizer, makVrv::DtEntityConditionalParticleSystemVisualizer, makVrv::DtRadioCommLineVisualizer, makVrv::DtEntityOffsetDIGuyStateVisualizer, makVrv::Dt3dEntityTacticalDecorationsVisualizer, makVrv::DtEllipsoidStateVisualizer, makVrv::DtEntityEmitterVolumeVisualizer, makVrv::DtEntityTrailEffectVisualizer, makVrf::DtEntityExtentVisualizer, makVrf::DtStatePropertyDecorationVisualizer, makVrv::Dt3DAreaStateVisualizer, makVrv::DtIntervisibilityEntityFanVisualizer, makVrf::DtSensorContactLinesVisualizer, makVrv::Dt2DEnvironmentalVolumetricLineVisualizer, makVrv::DtCuboidStateVisualizer, makVrv::DtEntityDecalEffectVisualizer, makVrv::Dt2DTriangleStateVisualizer, makVrv::DtEntityParticleCollisionObjectVisualizer, makVrv::DtEntityAudializer, makVrv::DtEntitySmokePlumeVisualizer, makVrv::DtTacticalGraphicModelVisualizer, makVrv::DtEntityFlamesVisualizer, makVrv::DtLaserDesignatorVisualizer, makVrv::DtTacticalSmokeVisualizer, makVrv::DtIffReplyInteractionVisualizer, DtRangeLineTextVisualizer, makVrv::DtEnvironmentalMilStdIconVisualizer, makVrv::DtMilStdIconVisualizer, makVrv::DtEntityParticleSystemVisualizer, makVrf::DtObjectConsoleWarningVisualizer, makVrv::DtImageSymbolVisualizer, MassLabelVisualizer, MassLabelVisualizer, makVrf::DtSpotReportTrackHistoryVisualizer, makVrv::DtInteractionAudializer, makVrv::DtEntityStateVisualizer, makVrv::DtInteractionStateVisualizer, and makVrv::DtScribeBoxVisualizer.

virtual void makVrv::DtStateVisualizer::connectToListenerSignals ( )

protectedvirtual

Connect the visualizer to the listeners signals.

Reimplemented in makVrv::DtSpiderWebVisualizer, makVrv::DtSensorFieldOfViewVisualizer, makVrv::DtMilStdIconVisualizer, makVrv::DtEntityDIGuyStateVisualizer, makVrv::DtHATLineVisualizer, makVrv::DtEntityWakeVisualizer, makVrv::DtEntityEmitterVolumeVisualizer, makVrv::DtWedgeVisualizer, makVrv::DtEnvironmentalLineVisualizer, makVrv::DtArcVisualizer, makVrv::DtImageSymbolVisualizer, makVrv::DtTacticalGraphic2DModelVisualizer, makVrv::DtOverlaySecurityVisualizer, makVrv::DtLaserDesignatorVisualizer, makVrv::DtManeuverByFireVisualizer, makVrv::DtSymbolDecorationVisualizer, makVrv::Dt3DEnvironmentalLineVisualizer, makVrv::DtEllipseVisualizer, makVrv::Dt3DEllipseVisualizer, makVrv::DtEnvironmentalAreaVisualizer, makVrv::DtEntityArticulatedStateModelVisualizer, makVrv::Dt3DLineStateVisualizer, makVrf::DtVrfGui3DAggregateMilStdIconVisualizer, makVrv::DtEntityAudializer, makVrv::DtEnvironmentalVolumetricLineVisualizer, makVrv::DtSphericalSectorVisualizer, makVrv::DtEntityConditionalParticleSystemVisualizer, makVrv::Dt3DEnvironmentalAreaVisualizer, makVrv::DtDecalProjectorEnvironmentalLineVisualizer, makVrv::DtAggregateMilStdIconVisualizer, makVrv::Dt3DEnvironmentalVolumetricLineVisualizer, makVrv::DtTacticalGraphicNameVisualizer, makVrv::DtEntityTrackHistoryVisualizer, makVrv::Dt2DTextBoxVisualizer, makVrf::DtVrfGuiEnvironmentalMilStdIconVisualizer, makVrv::DtEntityRotorWashVisualizer, makVrv::DtEnvironmentalMilStdIconVisualizer, makVrv::DtEntityTrailEffectVisualizer, makVrf::DtStatePropertyDecorationVisualizer, makVrv::DtEntityMilStdIconVisualizer, makVrv::DtEntityOffsetDIGuyStateVisualizer, makVrv::Dt3dEntityTacticalDecorationsVisualizer, makVrv::DtEntityDecalEffectVisualizer, makVrv::DtDetonationLineVisualizer, makVrv::Dt3DAreaStateVisualizer, makVrv::DtEntityParticleCollisionObjectVisualizer, makVrv::DtIndicatorVisualizer, makVrf::DtVrfGuiEntityMilStdIconVisualizer, makVrv::DtEntitySmokePlumeVisualizer, makVrv::DtTacticalGraphicImageSymbolVisualizer, makVrv::DtEntityFlamesVisualizer, makVrv::DtEnvironmentalHATLineVisualizer, makVrv::DtEntityIndicatorVisualizer, makVrv::DtScribeBoxVisualizer, makVrv::DtEntitySymbolDecorationVisualizer, makVrv::DtTacticalGraphicModelVisualizer, makVrv::DtEntityHATLineVisualizer, makVrv::DtRadioTransmissionVisualizer, makVrv::DtEntityParticleSystemVisualizer, makVrv::DtRadioCommLineVisualizer, makVrv::DtAggregateSymbolDecorationVisualizer, makVrv::DtOverlayScreenIntervaledTextVisualizer, makVrv::Dt2DEnvironmentalLineVisualizer, makVrf::DtVrfGui2DAggregateMilStdIconVisualizer, makVrv::DtEnvironmentalIndicatorVisualizer, and makVrv::DtRemoteGraphicVisualizer.

virtual void makVrv::DtStateVisualizer::makeVisible ( )

protectedvirtual

Makes the visualizer visible by calling create model agents Also calls setModelDefinitionForAgents.

virtual void makVrv::DtStateVisualizer::setInitialValuesFromVisualizerDefinition ( )

protectedvirtual

Sets member variables from the visualizer definition if they exist Should not call this directly. Called by initialize.

Reimplemented in makVrv::DtSpiderWebVisualizer, makVrv::DtTacticalGraphicNameVisualizer, makVrv::DtMilStdIconVisualizer, makVrv::DtEntityDIGuyStateVisualizer, makVrv::DtHATLineVisualizer, makVrv::DtEntityWakeVisualizer, makVrv::DtEntityEmitterVolumeVisualizer, makVrv::DtWedgeVisualizer, makVrv::DtArcVisualizer, makVrv::DtEnvironmentalLineVisualizer, makVrv::DtImageSymbolVisualizer, makVrf::DtVrfGuiTacticalGraphicSymbolDecorationVisualizer, makVrv::DtTacticalGraphic2DModelVisualizer, makVrf::DtVrfGuiAggregateSymbolDecorationVisualizer, makVrv::DtOverlayScreenIntervaledTextVisualizer, makVrv::DtOverlaySecurityVisualizer, makVrv::DtSymbolDecorationVisualizer, makVrf::DtVrfGuiEntitySymbolDecorationVisualizer, makVrv::Dt3DEnvironmentalLineVisualizer, makVrv::DtEllipseVisualizer, makVrv::DtManeuverByFireVisualizer, makVrv::Dt3DEllipseVisualizer, makVrv::DtEnvironmentalAreaVisualizer, makVrv::DtEntityArticulatedStateModelVisualizer, makVrv::DtSphericalSectorVisualizer, makVrv::DtEnvironmentalVolumetricLineVisualizer, makVrv::Dt2DEnvironmentalLineVisualizer, makVrv::DtEntityConditionalParticleSystemVisualizer, makVrv::Dt3DEnvironmentalAreaVisualizer, makVrv::DtDecalProjectorEnvironmentalLineVisualizer, makVrv::DtEntityAudializer, makVrv::DtAggregateMilStdIconVisualizer, makVrv::DtIntervisibilityVertexVisualizer, makVrv::Dt3DEnvironmentalVolumetricLineVisualizer, makVrf::Dt2DRangeRingVisualizer, makVrv::Dt3DAirCorridorLineVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtBulletHoleVisualizer, makVrv::DtEntityTrackHistoryVisualizer, makVrv::Dt2DTextBoxVisualizer, makVrv::DtRadioTransmissionVisualizer, makVrv::DtEnvironmentalMilStdIconVisualizer, makVrv::DtEntityRotorWashVisualizer, makVrv::Dt2DAirCorridorLineVisualizer, makVrv::DtRadioCommLineVisualizer, makVrv::DtEntityTrailEffectVisualizer, makVrv::DtEntityMilStdIconVisualizer, makVrv::DtEntityOffsetDIGuyStateVisualizer, makVrv::DtIntervisibilityFanVisualizer, makVrv::Dt2DEllipseVisualizer, makVrv::DtEntityDecalEffectVisualizer, makVrf::DtStatePropertyDecorationVisualizer, makVrv::DtDetonationLineVisualizer, makVrv::Dt3dEntityTacticalDecorationsVisualizer, makVrv::DtIntervisibilityEntityFanVisualizer, makVrv::DtEntityParticleCollisionObjectVisualizer, makVrv::DtIndicatorVisualizer, makVrv::Dt2DLaserDesignatorVisualizer, makVrv::DtEntitySmokePlumeVisualizer, makVrv::DtInteractionAudializer, makVrv::DtTacticalGraphicImageSymbolVisualizer, makVrv::Dt3DLaserDesignatorVisualizer, makVrv::DtIffReplyInteractionVisualizer, makVrv::DtEntityFlamesVisualizer, makVrv::DtTacticalGraphicModelVisualizer, makVrv::Dt2DAggregateExtentVisualizer, makVrv::Dt3DAggregateExtentVisualizer, makVrv::DtDetonationInteractionVisualizer, makVrv::DtEntityParticleSystemVisualizer, makVrv::DtTacticalSmokeVisualizer, makVrv::DtLaserDesignatorVisualizer, makVrf::DtObjectConsoleWarningVisualizer, makVrv::DtDetonationAudializer, makVrv::DtEnvironmentalIndicatorVisualizer, makVrv::Dt2DEnvironmentalAreaVisualizer, makVrv::DtInteractionStateVisualizer, and makVrv::DtScribeBoxVisualizer.

template<typename T , typename C >

void makVrv::DtStateVisualizer::connectAndUpdate ( boost::signalslib::signal< void(T)> &  sig, void(C::*)(T)  fp, T  val  )

inlineprotected

Connect a signal and update the entity.

DtStateVisualizer& makVrv::DtStateVisualizer::operator= ( const DtStateVisualizer &  )

privatedelete

Assignment Operator.

Note

Not implemented

Member Data Documentation

DtBaseConnection& makVrv::DtStateVisualizer::mySimulation

protected

DtStateListener& makVrv::DtStateVisualizer::myListener

protected

bool makVrv::DtStateVisualizer::myDistributeFlag

protected

DtUniqueID makVrv::DtStateVisualizer::mySceneObjectID

protected

std::string makVrv::DtStateVisualizer::myName

protected

std::string makVrv::DtStateVisualizer::myModelDefinition

protected

DtSignalConnectionManager makVrv::DtStateVisualizer::myConnections

protected

DtModelSetId makVrv::DtStateVisualizer::myModelSet

protected

int makVrv::DtStateVisualizer::myVisualizerType

protected

bool makVrv::DtStateVisualizer::myPickable

protected

bool makVrv::DtStateVisualizer::myVisible

protected

const DtVisualizerDefinition* makVrv::DtStateVisualizer::myVisualizerDefinition

protected

DtSceneObjectAgent* makVrv::DtStateVisualizer::mySceneObjectAgent

protected

bool makVrv::DtStateVisualizer::myInitialInitializeDone

protected

ShowHideContextVector makVrv::DtStateVisualizer::myVisualizerShowHideContexts

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrvCore/DtStateVisualizer.h
