makVrv::DtIntervisibilityLineVisualizer Class Reference

DtIntervisibilityLineVisualizer display an intervisibility line drawn as geometry in the scene without occlusion.

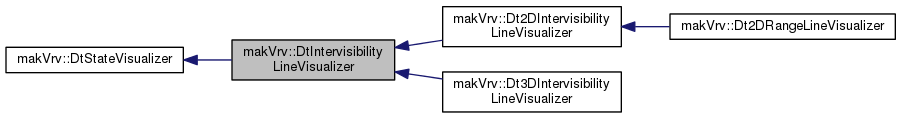

Inheritance diagram for makVrv::DtIntervisibilityLineVisualizer:

Public Member Functions
	DtIntervisibilityLineVisualizer (DtBaseConnection &simulation, DtStateListener &listener, DtSceneObjectAgent *sceneObject, DtModelSetId modelSet)
virtual	~DtIntervisibilityLineVisualizer ()
virtual void	setVisibleColor (float r, float g, float b, float a)
virtual void	setBlockedColor (float r, float g, float b, float a)
virtual void	setStartPoint (const DtVector &)
virtual void	setEndPoint (const DtVector &)
virtual void	setStartAttachPoint (DtElementID)
virtual void	setStartPointOffset (const DtVector &)
virtual void	setEndAttachPoint (DtElementID)
virtual void	setEndPointOffset (const DtVector &)
virtual void	slot_setSelected (bool) override
virtual void	resetSpatial ()
virtual void	createModelAgents ()
Public Member Functions inherited from makVrv::DtStateVisualizer
	DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, DtSceneObjectAgent *sceneObjectAgent, DtModelSetId modelSet)
virtual	~DtStateVisualizer ()
virtual DtModelSetId	modelSet ()
virtual const TypeInfo &	typeInfo () const =0
virtual void	setSceneObjectAgent (DtSceneObjectAgent *sceneObject)
void	setModelDefinition (const std::string &definition)
const std::string &	modelDefinition () const
virtual void	implementVisibility (bool visible)
virtual void	initialize ()
void	setName (const std::string &)
const std::string &	name () const
virtual void	setPickable (bool)
virtual bool	pickable () const
virtual DtUniqueID	sceneObjectID () const
int	visualizerType () const
virtual void	setVisualizerDefinition (const DtVisualizerDefinition &)
DtStateListener &	listener ()
const DtStateListener &	listener () const
DtBaseConnection &	simulation ()
void	setDistribute (bool b)
bool	distribute () const
virtual bool	isVisible () const
virtual bool	setVisualizerIsVisible (bool vis, DtVisualizerShowHideContext::VisualizerShowHideContext context)

Protected Member Functions
virtual void	destroyModelAgents ()
virtual void	setModelDefinitionForAgents ()
virtual DtSegmentedLineModelAgent *	createLineAgent ()=0
Protected Member Functions inherited from makVrv::DtStateVisualizer
virtual void	connectToListenerSignals ()
virtual void	makeVisible ()
virtual void	setInitialValuesFromVisualizerDefinition ()
template<typename T , typename C >
void	connectAndUpdate (boost::signalslib::signal< void(T)> &sig, void(C::*fp)(T), T val)

Protected Attributes
DtIntervisibilityLineStateListener &	myLineListener
DtSegmentedLineModelAgent *	myLineModelAgent
DtAttachableIntervisibilityUpdaterAgent *	myAttachableUpdaterAgent
Protected Attributes inherited from makVrv::DtStateVisualizer
DtBaseConnection &	mySimulation
DtStateListener &	myListener
bool	myDistributeFlag
DtUniqueID	mySceneObjectID
std::string	myName
std::string	myModelDefinition
DtSignalConnectionManager	myConnections
DtModelSetId	myModelSet
int	myVisualizerType
bool	myPickable
bool	myVisible
const DtVisualizerDefinition *	myVisualizerDefinition
DtSceneObjectAgent *	mySceneObjectAgent
bool	myInitialInitializeDone
ShowHideContextVector	myVisualizerShowHideContexts

Additional Inherited Members
Public Types inherited from makVrv::DtStateVisualizer
enum	Type {   AllVisualizerTypes = 0, EntityVisualizerType = 1, EnvironmentalVisualizerType, InteractionVisualizerType,   AggregateVisualizerType, IntervisibilityVisualizerType, TacticalSmokeVisualizerType, UserType = 10000 }
Protected Types inherited from makVrv::DtStateVisualizer
typedef std::vector < DtVisualizerShowHideContext::VisualizerShowHideContext >	ShowHideContextVector

Constructor & Destructor Documentation

makVrv::DtIntervisibilityLineVisualizer::DtIntervisibilityLineVisualizer	(	DtBaseConnection &	simulation,
		DtStateListener &	listener,
		DtSceneObjectAgent *	sceneObject,
		DtModelSetId	modelSet
	)

Constructor.

virtual makVrv::DtIntervisibilityLineVisualizer::~DtIntervisibilityLineVisualizer ( )

virtual

Destructor.

Member Function Documentation

virtual void makVrv::DtIntervisibilityLineVisualizer::setVisibleColor ( float  r, float  g, float  b, float  a  )

virtual

Sets the color for the visible portion of the line (default is green)

virtual void makVrv::DtIntervisibilityLineVisualizer::setBlockedColor ( float  r, float  g, float  b, float  a  )

virtual

Sets the color for the blocked portion of the line (default is red)

virtual void makVrv::DtIntervisibilityLineVisualizer::setStartPoint ( const DtVector &  )

virtual

Sets the start for of the first vertex. Will delete any updaters if they exist for the start point.

virtual void makVrv::DtIntervisibilityLineVisualizer::setEndPoint ( const DtVector &  )

virtual

Sets the end point. Will delete any updaters if they exist for the end point.

virtual void makVrv::DtIntervisibilityLineVisualizer::setStartAttachPoint ( DtElementID  )

virtual

Will set the start attach point. Converts to scene id for current model set.

virtual void makVrv::DtIntervisibilityLineVisualizer::setStartPointOffset ( const DtVector &  )

virtual

Sets the offset from the attached start point.

virtual void makVrv::DtIntervisibilityLineVisualizer::setEndAttachPoint ( DtElementID  )

virtual

Will set the end attach point. Converts to scene id for current model set.

virtual void makVrv::DtIntervisibilityLineVisualizer::setEndPointOffset ( const DtVector &  )

virtual

Sets the offset from the attached end point.

virtual void makVrv::DtIntervisibilityLineVisualizer::slot_setSelected ( bool  )

overridevirtual

Sets whether or not the line is selected. Connected to DtStateListener's signal_objectSelectionChanged signal.

Reimplemented from makVrv::DtStateVisualizer.

virtual void makVrv::DtIntervisibilityLineVisualizer::resetSpatial ( )

virtual

Reset spatial parameters of the object.

virtual void makVrv::DtIntervisibilityLineVisualizer::createModelAgents ( )

virtual

Create all the model agents needed to implement this visual.

Implements makVrv::DtStateVisualizer.

Reimplemented in makVrv::Dt2DRangeLineVisualizer.

virtual void makVrv::DtIntervisibilityLineVisualizer::destroyModelAgents ( )

protectedvirtual

Destroy all the model agents.

Implements makVrv::DtStateVisualizer.

virtual void makVrv::DtIntervisibilityLineVisualizer::setModelDefinitionForAgents ( )

protectedvirtual

Pass any model definition provided as part of the visual definition to the visualizer.

Implements makVrv::DtStateVisualizer.

virtual DtSegmentedLineModelAgent* makVrv::DtIntervisibilityLineVisualizer::createLineAgent ( )

protectedpure virtual

Create a line agent of the appropriate type.

Implemented in makVrv::Dt2DIntervisibilityLineVisualizer, and makVrv::Dt3DIntervisibilityLineVisualizer.

Member Data Documentation

DtIntervisibilityLineStateListener& makVrv::DtIntervisibilityLineVisualizer::myLineListener

protected

DtSegmentedLineModelAgent* makVrv::DtIntervisibilityLineVisualizer::myLineModelAgent

protected

DtAttachableIntervisibilityUpdaterAgent* makVrv::DtIntervisibilityLineVisualizer::myAttachableUpdaterAgent

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrvCore/DtIntervisibilityLineVisualizer.h
