DtIndicatorVisualizer is used to visualize 2D indicators and associated Info boxes (usually called labels). It is an abstract class; deriving classes need to provide implementations for creating and destroying the actual indicator widgets.

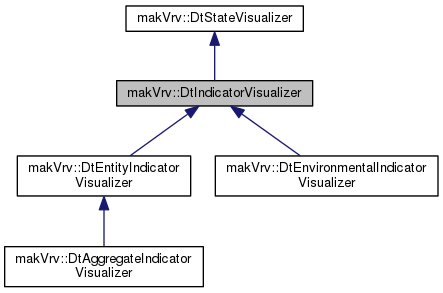

Inheritance diagram for makVrv::DtIndicatorVisualizer:

[legend]

Public Member Functions
	DtIndicatorVisualizer (DtBaseConnection &simulation, DtStateListener &listener, DtSceneObjectAgent *sceneObject, DtModelSetId modelSet)

virtual	~DtIndicatorVisualizer ()

	DtIndicatorVisualizer ()=delete

	DtIndicatorVisualizer (const DtIndicatorVisualizer &)=delete

DtIndicatorVisualizer &	operator= (const DtIndicatorVisualizer &)=delete

virtual void	initialize () override

virtual void	implementVisibility (bool visible) override

virtual void	setWidgetEventsEnabled (bool enabled)

virtual void	slot_setSelected (bool) override

virtual void	setColor (float r, float g, float b, float a)


virtual void	setIndicatorPinned (bool)

virtual bool	indicatorPinned () const

Public Member Functions inherited from makVrv::DtStateVisualizer
	DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, DtSceneObjectAgent *sceneObjectAgent, DtModelSetId modelSet)

virtual	~DtStateVisualizer ()

virtual DtModelSetId	modelSet ()

virtual const TypeInfo &	typeInfo () const =0

virtual void	setSceneObjectAgent (DtSceneObjectAgent *sceneObject)

void	setModelDefinition (const std::string &definition)

const std::string &	modelDefinition () const

void	setName (const std::string &)

const std::string &	name () const

virtual void	setPickable (bool)

virtual bool	pickable () const

virtual DtUniqueID	sceneObjectID () const

int	visualizerType () const

virtual void	setVisualizerDefinition (const DtVisualizerDefinition &)

DtStateListener &	listener ()

const DtStateListener &	listener () const

DtBaseConnection &	simulation ()

void	setDistribute (bool b)

bool	distribute () const

virtual bool	isVisible () const

virtual bool	setVisualizerIsVisible (bool vis, DtVisualizerShowHideContext::VisualizerShowHideContext context)

Protected Member Functions
virtual void	createModelAgents () override

virtual void	destroyModelAgents ()

virtual void	connectToListenerSignals () override

virtual void	setInitialValuesFromVisualizerDefinition () override

virtual void	setModelDefinitionForAgents () override

Protected Member Functions inherited from makVrv::DtStateVisualizer
virtual void	makeVisible ()

template<typename T , typename C >
void	connectAndUpdate (boost::signalslib::signal< void(T)> &sig, void(C::*fp)(T), T val)

Protected Attributes
bool	myVisibilityOverridden

bool	myWidgetEventsEnabled

bool	myIndicatorPinned

double	myR

double	myG

double	myB

double	myA

boost::signalslib::connection	myMouseOverSignalConnection

DtObjectTypeStateListener *	myObjectTypeListener

Protected Attributes inherited from makVrv::DtStateVisualizer
DtBaseConnection &	mySimulation

DtStateListener &	myListener

bool	myDistributeFlag

DtUniqueID	mySceneObjectID

std::string	myName

std::string	myModelDefinition

DtSignalConnectionManager	myConnections

DtModelSetId	myModelSet

int	myVisualizerType

bool	myPickable

bool	myVisible

const DtVisualizerDefinition *	myVisualizerDefinition

DtSceneObjectAgent *	mySceneObjectAgent

bool	myInitialInitializeDone

ShowHideContextVector	myVisualizerShowHideContexts

Additional Inherited Members
Public Types inherited from makVrv::DtStateVisualizer
enum	Type { AllVisualizerTypes = 0, EntityVisualizerType = 1, EnvironmentalVisualizerType, InteractionVisualizerType, AggregateVisualizerType, IntervisibilityVisualizerType, TacticalSmokeVisualizerType, UserType = 10000 }

Protected Types inherited from makVrv::DtStateVisualizer
typedef std::vector < DtVisualizerShowHideContext::VisualizerShowHideContext >	ShowHideContextVector

Constructor & Destructor Documentation

makVrv::DtIndicatorVisualizer::DtIndicatorVisualizer	(	DtBaseConnection &	simulation,
		DtStateListener &	listener,
		DtSceneObjectAgent *	sceneObject,
		DtModelSetId	modelSet
	)

CTOR.

virtual makVrv::DtIndicatorVisualizer::~DtIndicatorVisualizer ( )

virtual

DTOR.

makVrv::DtIndicatorVisualizer::DtIndicatorVisualizer ( )

delete

default contructor - not allowed

makVrv::DtIndicatorVisualizer::DtIndicatorVisualizer ( const DtIndicatorVisualizer & )

delete

copy contructor - not allowed

Member Function Documentation

DtIndicatorVisualizer& makVrv::DtIndicatorVisualizer::operator= ( const DtIndicatorVisualizer & )

delete

equals operator - not allowed

virtual void makVrv::DtIndicatorVisualizer::initialize ( )

overridevirtual

called soon after construction to initialize the signals/state from the listener

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtEntityIndicatorVisualizer, and makVrv::DtEnvironmentalIndicatorVisualizer.

virtual void makVrv::DtIndicatorVisualizer::implementVisibility ( bool visible )

overridevirtual

Set whether the indicator is visible or not.

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtEnvironmentalIndicatorVisualizer.

virtual void makVrv::DtIndicatorVisualizer::setWidgetEventsEnabled ( bool enabled )

virtual

Reimplemented in makVrv::DtEnvironmentalIndicatorVisualizer, and makVrv::DtEntityIndicatorVisualizer.

virtual void makVrv::DtIndicatorVisualizer::setIndicatorPinned ( bool )

virtual

Set/Get whether the indicator widget is pinned.

Reimplemented in makVrv::DtEntityIndicatorVisualizer.

virtual bool makVrv::DtIndicatorVisualizer::indicatorPinned ( ) const

virtual

Set/Get whether the indicator widget is pinned.

virtual void makVrv::DtIndicatorVisualizer::slot_setSelected ( bool )

overridevirtual

Sets whether or not the indicator is selected. Connected to DtStateListener's signal_objectSelectionChanged signal.

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtEntityIndicatorVisualizer.

virtual void makVrv::DtIndicatorVisualizer::setColor	(	float	r,
		float	g,
		float	b,
		float	a
	)

virtual

Sets the color of the info box.

Reimplemented in makVrv::DtEnvironmentalIndicatorVisualizer, and makVrv::DtEntityIndicatorVisualizer.

virtual void makVrv::DtIndicatorVisualizer::createModelAgents ( )

overrideprotectedvirtual

Override to create model agents that will be used to display data from the listener.

Implements makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtEnvironmentalIndicatorVisualizer, and makVrv::DtEntityIndicatorVisualizer.

virtual void makVrv::DtIndicatorVisualizer::destroyModelAgents ( )

protectedvirtual

Destroy the distributed agents This function cannot be called from DtIndicatorVisualizer's destructor.

Implements makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtEnvironmentalIndicatorVisualizer, and makVrv::DtEntityIndicatorVisualizer.

virtual void makVrv::DtIndicatorVisualizer::connectToListenerSignals ( )

overrideprotectedvirtual

Connect the visualizer to the listeners signals Called by DtStateVisualizer::initialize()

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtEntityIndicatorVisualizer, and makVrv::DtEnvironmentalIndicatorVisualizer.

virtual void makVrv::DtIndicatorVisualizer::setInitialValuesFromVisualizerDefinition ( )

overrideprotectedvirtual

Sets member variables from the visualizer definition if they exist Should not call this directly. Called by DtStateVisualizer::initialize.

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtEnvironmentalIndicatorVisualizer.

virtual void makVrv::DtIndicatorVisualizer::setModelDefinitionForAgents ( )

overrideprotectedvirtual

Sets up various values such as force type, this is called after initialize and createModelAgents so values and models should be valid.

Implements makVrv::DtStateVisualizer.

Member Data Documentation

bool makVrv::DtIndicatorVisualizer::myVisibilityOverridden

protected

bool makVrv::DtIndicatorVisualizer::myWidgetEventsEnabled

protected

bool makVrv::DtIndicatorVisualizer::myIndicatorPinned

protected

double makVrv::DtIndicatorVisualizer::myR

protected

double makVrv::DtIndicatorVisualizer::myG

protected

double makVrv::DtIndicatorVisualizer::myB

protected

double makVrv::DtIndicatorVisualizer::myA

protected

boost::signalslib::connection makVrv::DtIndicatorVisualizer::myMouseOverSignalConnection

protected

DtObjectTypeStateListener* makVrv::DtIndicatorVisualizer::myObjectTypeListener

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrvCore/DtIndicatorVisualizer.h
