makVrv::DtInteractionStateVisualizer Class Reference

Base class for interaction model visualizers.

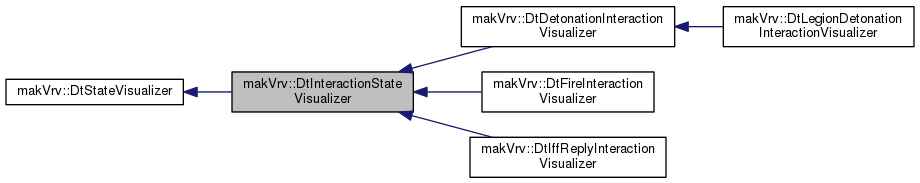

Inheritance diagram for makVrv::DtInteractionStateVisualizer:

Public Member Functions
	DtInteractionStateVisualizer (DtBaseConnection &simulation, DtStateListener &listener, DtSceneObjectAgent *sceneObject, DtModelSetId modelSet)
virtual	~DtInteractionStateVisualizer ()
void	setDelayTime (double d)
double	delayTime () const
Public Member Functions inherited from makVrv::DtStateVisualizer
	DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, DtSceneObjectAgent *sceneObjectAgent, DtModelSetId modelSet)
virtual	~DtStateVisualizer ()
virtual DtModelSetId	modelSet ()
virtual const TypeInfo &	typeInfo () const =0
virtual void	setSceneObjectAgent (DtSceneObjectAgent *sceneObject)
void	setModelDefinition (const std::string &definition)
const std::string &	modelDefinition () const
virtual void	implementVisibility (bool visible)
virtual void	initialize ()
virtual void	slot_setSelected (bool b)
void	setName (const std::string &)
const std::string &	name () const
virtual void	setPickable (bool)
virtual bool	pickable () const
virtual DtUniqueID	sceneObjectID () const
int	visualizerType () const
virtual void	setVisualizerDefinition (const DtVisualizerDefinition &)
DtStateListener &	listener ()
const DtStateListener &	listener () const
DtBaseConnection &	simulation ()
void	setDistribute (bool b)
bool	distribute () const
virtual bool	isVisible () const
virtual bool	setVisualizerIsVisible (bool vis, DtVisualizerShowHideContext::VisualizerShowHideContext context)

Protected Member Functions
virtual void	createModelAgents () override
virtual void	destroyModelAgents () override
virtual void	setInitialValuesFromVisualizerDefinition () override
virtual void	setModelDefinitionForAgents ()
Protected Member Functions inherited from makVrv::DtStateVisualizer
virtual void	connectToListenerSignals ()
virtual void	makeVisible ()
template<typename T , typename C >
void	connectAndUpdate (boost::signalslib::signal< void(T)> &sig, void(C::*fp)(T), T val)

Protected Attributes
std::list< DtModelAgent * >	myModels
DtSceneObjectAgent *	myTemporarySceneObjectAgent
double	myLifeTime
double	myDelayTime
std::string	mySchema
Protected Attributes inherited from makVrv::DtStateVisualizer
DtBaseConnection &	mySimulation
DtStateListener &	myListener
bool	myDistributeFlag
DtUniqueID	mySceneObjectID
std::string	myName
std::string	myModelDefinition
DtSignalConnectionManager	myConnections
DtModelSetId	myModelSet
int	myVisualizerType
bool	myPickable
bool	myVisible
const DtVisualizerDefinition *	myVisualizerDefinition
DtSceneObjectAgent *	mySceneObjectAgent
bool	myInitialInitializeDone
ShowHideContextVector	myVisualizerShowHideContexts

Additional Inherited Members
Public Types inherited from makVrv::DtStateVisualizer
enum	Type {   AllVisualizerTypes = 0, EntityVisualizerType = 1, EnvironmentalVisualizerType, InteractionVisualizerType,   AggregateVisualizerType, IntervisibilityVisualizerType, TacticalSmokeVisualizerType, UserType = 10000 }
Protected Types inherited from makVrv::DtStateVisualizer
typedef std::vector < DtVisualizerShowHideContext::VisualizerShowHideContext >	ShowHideContextVector

Constructor & Destructor Documentation

makVrv::DtInteractionStateVisualizer::DtInteractionStateVisualizer	(	DtBaseConnection &	simulation,
		DtStateListener &	listener,
		DtSceneObjectAgent *	sceneObject,
		DtModelSetId	modelSet
	)

CTOR.

virtual makVrv::DtInteractionStateVisualizer::~DtInteractionStateVisualizer ( )

virtual

DTOR.

Member Function Documentation

void makVrv::DtInteractionStateVisualizer::setDelayTime

(

double

d

)

Duration of interaction.

double makVrv::DtInteractionStateVisualizer::delayTime

(

)

const

Get the duration of the interaction.

virtual void makVrv::DtInteractionStateVisualizer::createModelAgents ( )

overrideprotectedvirtual

Override to create model agents that will be used to display data from the listener.

Implements makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtDetonationInteractionVisualizer, makVrv::DtIffReplyInteractionVisualizer, and makVrv::DtFireInteractionVisualizer.

virtual void makVrv::DtInteractionStateVisualizer::destroyModelAgents ( )

overrideprotectedvirtual

Destroys all currently created definitions.

Implements makVrv::DtStateVisualizer.

virtual void makVrv::DtInteractionStateVisualizer::setInitialValuesFromVisualizerDefinition ( )

overrideprotectedvirtual

Sets member variables from the visualizer definition if they exist Should not call this directly. Called by DtStateVisualizer::initialize.

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtIffReplyInteractionVisualizer, and makVrv::DtDetonationInteractionVisualizer.

virtual void makVrv::DtInteractionStateVisualizer::setModelDefinitionForAgents ( )

protectedvirtual

Sets model definition for all the agents that this visualizer might be using. If model agents are not created, should create them. Should not call this directly. Called by initialize.

Implements makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtIffReplyInteractionVisualizer.

Member Data Documentation

std::list<DtModelAgent*> makVrv::DtInteractionStateVisualizer::myModels

protected

DtSceneObjectAgent* makVrv::DtInteractionStateVisualizer::myTemporarySceneObjectAgent

protected

This visualizer requires its own scene object for detonations. This scene object can be passed to the tempory agent manager. Do not hand mySceneObjectAgent to the tempory agent manager. mySceneObjectAgent is shared for ALL visualizers of a given model set, and is managed/owned by the element or visualizer set that created the visualizer.

See Also

DtDetonationElementProcessor::constructObjectsForModelSet

DtWeaponFireElementProcessor

double makVrv::DtInteractionStateVisualizer::myLifeTime

protected

double makVrv::DtInteractionStateVisualizer::myDelayTime

protected

std::string makVrv::DtInteractionStateVisualizer::mySchema

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrvCore/DtInteractionStateVisualizer.h
