This manager will manage settings for intervisibility objects.

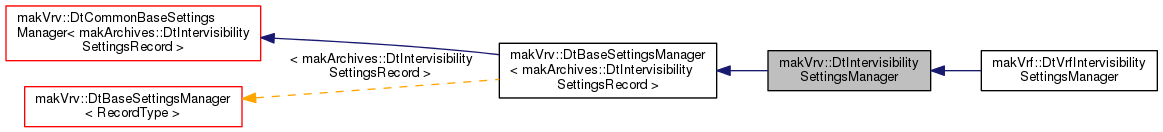

Inheritance diagram for makVrv::DtIntervisibilitySettingsManager:

Public Member Functions
virtual	~DtIntervisibilitySettingsManager ()

Setters/getters for settings
void	setIntervisibilityEnabled (bool enabled)

bool	intervisibilityEnabled () const

void	setLeftClickMakesObjectsPermanent (bool enabled)

bool	leftClickMakesObjectsPermanent () const

void	setOriginIntervisibilityElevation (double height)

double	originIntervisibilityElevation () const

void	setEndPointIntervisibilityElevation (double height)

double	endPointIntervisibilityElevation () const

void	setFanModeSamplingRate (double radAngle)

double	fanModeSamplingRate () const

void	setEntityFanUpdateRate (double interval)

double	entityFanUpdateRate () const

void	setHatLinesEnabled (bool hatEnabled)

bool	hatLinesEnabled () const

void	setHatLinesOnSelectionOnly (bool selOnly)

bool	hatLinesOnSelectionOnly () const

void	setVisibleColor (float r, float g, float b, float a)

void	visibleColor (float &r, float &g, float &b, float &a) const

void	setBlockedColor (float r, float g, float b, float a)

void	blockedColor (float &r, float &g, float &b, float &a) const

void	setCircleColor (float r, float g, float b, float a)

void	circleColor (float &r, float &g, float &b, float &a) const

Archiving methods
virtual void	setFromRecord (const makArchives::DtIntervisibilitySettingsRecord &rec)

virtual void	getRecord (makArchives::DtIntervisibilitySettingsRecord &rec) const

Methods for checking if object (object type) is attachable.
virtual bool	isAttachableObjectType (DtElementEntry::ObjectType t) const

virtual bool	isAttachableObjectType (DtUniqueID elementId) const

Public Member Functions inherited from makVrv::DtBaseSettingsManager< makArchives::DtIntervisibilitySettingsRecord >
	DtBaseSettingsManager (DtDe &de, const std::string &name, const std::string &displayName, const std::string &ext)

virtual	~DtBaseSettingsManager ()

virtual void	initializeBackup ()

virtual bool	getOverriddenFactoryRecord (makArchives::DtIntervisibilitySettingsRecord &record) const

Public Member Functions inherited from makVrv::DtCommonBaseSettingsManager< makArchives::DtIntervisibilitySettingsRecord >
	DtCommonBaseSettingsManager (DtDe &de, const std::string &name, const std::string &displayName, const std::string &ext)

virtual	~DtCommonBaseSettingsManager ()

virtual void	autoSaveIfNecessary ()

virtual void	setAutoSave (bool doit)

virtual bool	autoSave () const

virtual void	setUseDefaultSettingsRecord (bool useit)

virtual bool	useDefaultSettingsRecord () const

virtual DtDeSettings *	settings ()

virtual const DtDeSettings *	settings () const

virtual DtSettingsBackup *	settingsBackup ()

virtual const DtSettingsBackup *	settingsBackup () const

virtual void	loadDefaults ()

virtual void	saveDefaultSettings ()

virtual void	loadDefaultSettings (bool loadOnlyFactorySettings)

virtual void	importSettings (const std::string &filePath)

virtual void	exportSettings (const std::string &filePath) const

Public Member Functions inherited from makVrv::DtVirtualBaseClass
	DtVirtualBaseClass ()

virtual	~DtVirtualBaseClass ()

Static Public Member Functions
static DtIntervisibilitySettingsManager &	instance (DtDe &de)

Public Attributes
Boost signals for changed settings
boost::signalslib::signal < void(bool)>	signal_intervisibilityEnabledSet

boost::signalslib::signal < void(bool)>	signal_leftClickMakesObjectsPermanentSet

boost::signalslib::signal < void(double)>	signal_originIntervisibilityElevationSet

boost::signalslib::signal < void(double)>	signal_endPointIntervisibilityElevationSet

boost::signalslib::signal < void(double)>	signal_fanModeSamplingRateSet

boost::signalslib::signal < void(double)>	signal_entityFanUpdateRateSet

boost::signalslib::signal < void(bool)>	signal_hatLinesEnabledSet

boost::signalslib::signal < void(bool)>	signal_hatLinesOnSelectionOnlySet

boost::signalslib::signal < void(float r, float g, float b, float a)>	signal_visibleColorSet

boost::signalslib::signal < void(float r, float g, float b, float a)>	signal_blockedColorSet

boost::signalslib::signal < void(float r, float g, float b, float a)>	signal_circleColorSet

Protected Member Functions
	DtIntervisibilitySettingsManager (DtDe &de)

virtual bool	applyFactoryOverrides (makArchives::DtIntervisibilitySettingsRecord &rec) const

Protected Attributes
bool	myIntervisibilityEnabled

bool	myLeftClickMakesObjectsPermanent

bool	myHatLinesEnabled

bool	myHatLinesOnSelectionOnly

double	myOriginIntervisibilityElevation

double	myEndPointIntervisibilityElevation

double	myFanModeSamplingRate

double	myEntityFanUpdateRate

float	myVisibleColor [4]

float	myBlockedColor [4]

float	myCircleColor [4]

Protected Attributes inherited from makVrv::DtCommonBaseSettingsManager< makArchives::DtIntervisibilitySettingsRecord >
DtSignalConnectionManager	myConnections

std::string	myName

std::string	myExtension

std::string	myDisplayName

bool	myUseDefaultSettingsRecordFlag

bool	myAutoSaveFlag

DtSettingsBackup *	mySettingsBackup

DtDe &	myDe

Friends
template<typename ManagerClass >
ManagerClass &	defaultManagerInstanceFunction (DtDe &, bool)

template<typename ManagerClass >
void	defaultManagerRegisterInstanceFunction (DtDe &, ManagerClass *)

Additional Inherited Members
Protected Types inherited from makVrv::DtBaseSettingsManager< makArchives::DtIntervisibilitySettingsRecord >
typedef DtRecordSettingsBackup < DtBaseSettingsManager < makArchives::DtIntervisibilitySettingsRecord > , makArchives::DtIntervisibilitySettingsRecord >	RecordBackupType

Constructor & Destructor Documentation

virtual makVrv::DtIntervisibilitySettingsManager::~DtIntervisibilitySettingsManager ( )

virtual

DTOR.

makVrv::DtIntervisibilitySettingsManager::DtIntervisibilitySettingsManager ( DtDe & de )

protected

Protected CTOR ( use instance(..) ).

Member Function Documentation

static DtIntervisibilitySettingsManager& makVrv::DtIntervisibilitySettingsManager::instance ( DtDe & de )

static

Get an instance of the settings manager.

void makVrv::DtIntervisibilitySettingsManager::setIntervisibilityEnabled ( bool enabled )

Sets whether intervisibility objects are globally seen/hidden.

bool makVrv::DtIntervisibilitySettingsManager::intervisibilityEnabled ( ) const

Gets whether intervisibility objects are globally seen/hidden.

void makVrv::DtIntervisibilitySettingsManager::setLeftClickMakesObjectsPermanent ( bool enabled )

Sets whether left-clicking places object or starts a new one.

bool makVrv::DtIntervisibilitySettingsManager::leftClickMakesObjectsPermanent ( ) const

Gets whether left-clicking places object or starts a new one.

void makVrv::DtIntervisibilitySettingsManager::setOriginIntervisibilityElevation ( double height )

Sets the distance above the origin to place the intervisibility line (in meters).

double makVrv::DtIntervisibilitySettingsManager::originIntervisibilityElevation ( ) const

Gets the distance above the origin the intervisibility line is placed (in meters).

void makVrv::DtIntervisibilitySettingsManager::setEndPointIntervisibilityElevation ( double height )

Sets the distance above the end point to place the intervisibility line (in meters).

double makVrv::DtIntervisibilitySettingsManager::endPointIntervisibilityElevation ( ) const

Gets the distance above the end point the intervisibility line is placed (in meters).

void makVrv::DtIntervisibilitySettingsManager::setFanModeSamplingRate ( double radAngle )

Sets the angle between fan mode samples (in radians).

double makVrv::DtIntervisibilitySettingsManager::fanModeSamplingRate ( ) const

Gets the angle between fan mode samples (in radians).

void makVrv::DtIntervisibilitySettingsManager::setEntityFanUpdateRate ( double interval )

Sets the time between entity fan mode updates (in seconds). Zero (0) default means check as fast as possible.

double makVrv::DtIntervisibilitySettingsManager::entityFanUpdateRate ( ) const

Gets the time between entity fan mode updates (in seconds). Zero (0) default means check as fast as possible.

void makVrv::DtIntervisibilitySettingsManager::setHatLinesEnabled ( bool hatEnabled )

Sets whether height above terrain lines are enabled.

bool makVrv::DtIntervisibilitySettingsManager::hatLinesEnabled ( ) const

Gets whether height above terrain lines are enabled.

void makVrv::DtIntervisibilitySettingsManager::setHatLinesOnSelectionOnly ( bool selOnly )

Sets whether HAT lines are shown only when the object is selected.

bool makVrv::DtIntervisibilitySettingsManager::hatLinesOnSelectionOnly ( ) const

Gets whether HAT lines are shown only when the object is selected.

void makVrv::DtIntervisibilitySettingsManager::setVisibleColor	(	float	r,
		float	g,
		float	b,
		float	a
	)

Sets the color of the visible portion of the intervisibility line.

void makVrv::DtIntervisibilitySettingsManager::visibleColor	(	float &	r,
		float &	g,
		float &	b,
		float &	a
	)		const

Gets the color of the visible portion of the intervisibility line.

void makVrv::DtIntervisibilitySettingsManager::setBlockedColor	(	float	r,
		float	g,
		float	b,
		float	a
	)

Sets the color of the blocked portion of the intervisibility line.

void makVrv::DtIntervisibilitySettingsManager::blockedColor	(	float &	r,
		float &	g,
		float &	b,
		float &	a
	)		const

Gets the color of the blocked portion of the intervisibility line.

void makVrv::DtIntervisibilitySettingsManager::setCircleColor	(	float	r,
		float	g,
		float	b,
		float	a
	)

Sets the color of the circle outline of a fan, grid line or entity intervisibility.

void makVrv::DtIntervisibilitySettingsManager::circleColor	(	float &	r,
		float &	g,
		float &	b,
		float &	a
	)		const

Gets the color of the circle outline of a fan, grid line or entity intervisibility.

virtual void makVrv::DtIntervisibilitySettingsManager::setFromRecord ( const makArchives::DtIntervisibilitySettingsRecord & rec )

virtual

Use the settings from the given settings record.

Implements makVrv::DtBaseSettingsManager< makArchives::DtIntervisibilitySettingsRecord >.

virtual void makVrv::DtIntervisibilitySettingsManager::getRecord ( makArchives::DtIntervisibilitySettingsRecord & rec ) const

virtual

Populate the given record with the current settings.

Implements makVrv::DtBaseSettingsManager< makArchives::DtIntervisibilitySettingsRecord >.

virtual bool makVrv::DtIntervisibilitySettingsManager::isAttachableObjectType ( DtElementEntry::ObjectType t ) const

virtual

Checks whether the given object type is one that can be attached to.

virtual bool makVrv::DtIntervisibilitySettingsManager::isAttachableObjectType ( DtUniqueID elementId ) const

virtual

Checks whether the entity with the given element id can be attached to.

Reimplemented in makVrf::DtVrfIntervisibilitySettingsManager.

virtual bool makVrv::DtIntervisibilitySettingsManager::applyFactoryOverrides ( makArchives::DtIntervisibilitySettingsRecord & rec ) const

protectedvirtual

Get overrides to the factory record, if any. If there are overrides, this function returns true. This is an internal utility function used by VR-Vantage engineers to update factory defaults. As a result, this function returns false in releases but can be overriden by toolkit users if desired; however, generally toolkit users can and should use DtDeInitializer::addDefaultSettingsRecord(...) instead.

Implements makVrv::DtBaseSettingsManager< makArchives::DtIntervisibilitySettingsRecord >.

Friends And Related Function Documentation

template<typename ManagerClass >

ManagerClass& defaultManagerInstanceFunction	(	DtDe &	de,
		bool	allowedInSlave
	)

friend

Befriend the manager instance functions for instance retreival/creation.

Befriend the manager instance functions for instance retrieval/creation.

class Manager
{
public:
   static Manager& instance(DtDe& de);
   void loadDefaults();
protected:
   template <typename ManagerClass>
   friend ManagerClass& defaultManagerInstanceFunction(DtDe& de, bool);
   template <typename ManagerClass>
   friend void defaultManagerRegisterInstanceFunction(DtDe& de, ManagerClass* mgr)
   Manager(DtDe&);
   DtSignalConnectionManager myConnections;
};

Then simply in the implementation of instance call defaultManagerInstanceFunction with the de object and return the return value.

Manager& Manager::instance(DtDe& de)
{
   return defaultManagerInstanceFunction<Manager>(de);
}

template<typename ManagerClass >

void defaultManagerRegisterInstanceFunction	(	DtDe &	de,
		ManagerClass *	mgr
	)

friend

Befriend the manager instance functions for instance retreival/creation.

Befriend the manager instance functions for instance retrieval/creation.

static void Manager::registerInstance(DtDe& de, Manager* mgr)
{
   defaultManagerRegisterInstanceFunction(de,mgr);
}
...else where call.
// Assuming class NewManager : public Manager
Manager::registerInstance(de,new NewManager(de));

Member Data Documentation

boost::signalslib::signal<void (bool)> makVrv::DtIntervisibilitySettingsManager::signal_intervisibilityEnabledSet

boost::signalslib::signal<void (bool)> makVrv::DtIntervisibilitySettingsManager::signal_leftClickMakesObjectsPermanentSet

boost::signalslib::signal<void (double)> makVrv::DtIntervisibilitySettingsManager::signal_originIntervisibilityElevationSet

boost::signalslib::signal<void (double)> makVrv::DtIntervisibilitySettingsManager::signal_endPointIntervisibilityElevationSet

boost::signalslib::signal<void (double)> makVrv::DtIntervisibilitySettingsManager::signal_fanModeSamplingRateSet

boost::signalslib::signal<void (double)> makVrv::DtIntervisibilitySettingsManager::signal_entityFanUpdateRateSet

boost::signalslib::signal<void (bool)> makVrv::DtIntervisibilitySettingsManager::signal_hatLinesEnabledSet

boost::signalslib::signal<void (bool)> makVrv::DtIntervisibilitySettingsManager::signal_hatLinesOnSelectionOnlySet

boost::signalslib::signal<void (float r, float g, float b, float a)> makVrv::DtIntervisibilitySettingsManager::signal_visibleColorSet

boost::signalslib::signal<void (float r, float g, float b, float a)> makVrv::DtIntervisibilitySettingsManager::signal_blockedColorSet

boost::signalslib::signal<void (float r, float g, float b, float a)> makVrv::DtIntervisibilitySettingsManager::signal_circleColorSet

bool makVrv::DtIntervisibilitySettingsManager::myIntervisibilityEnabled

protected

bool makVrv::DtIntervisibilitySettingsManager::myLeftClickMakesObjectsPermanent

protected

bool makVrv::DtIntervisibilitySettingsManager::myHatLinesEnabled

protected

bool makVrv::DtIntervisibilitySettingsManager::myHatLinesOnSelectionOnly

protected

double makVrv::DtIntervisibilitySettingsManager::myOriginIntervisibilityElevation

protected

double makVrv::DtIntervisibilitySettingsManager::myEndPointIntervisibilityElevation

protected

double makVrv::DtIntervisibilitySettingsManager::myFanModeSamplingRate

protected

double makVrv::DtIntervisibilitySettingsManager::myEntityFanUpdateRate

protected

float makVrv::DtIntervisibilitySettingsManager::myVisibleColor[4]

protected

float makVrv::DtIntervisibilitySettingsManager::myBlockedColor[4]

protected

float makVrv::DtIntervisibilitySettingsManager::myCircleColor[4]

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrvCore/DtIntervisibilitySettingsManager.h

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
