DtDetonationDecoder Class Reference

class DtDetonationDecoder: More...

Inheritance diagram for DtDetonationDecoder:

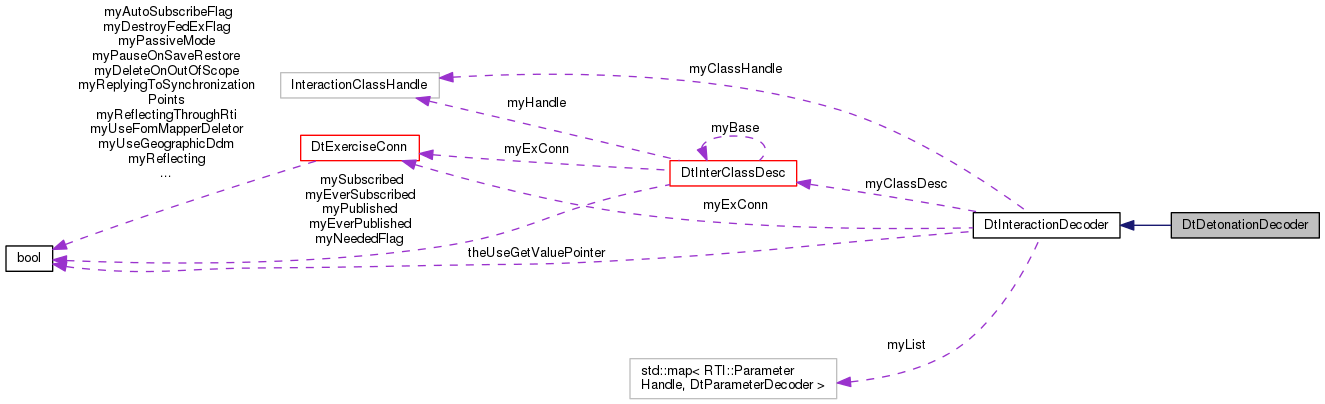

Collaboration diagram for DtDetonationDecoder:

Public Member Functions
	DtDetonationDecoder (DtExerciseConn *exConn, DtInterClassDesc *classDesc)
	constructor More...
virtual	~DtDetonationDecoder ()
	destructor More...
	DtDetonationDecoder (const DtDetonationDecoder &orig)
	copy constructor More...
DtDetonationDecoder &	operator= (const DtDetonationDecoder &orig)
	assignment operator More...
Public Member Functions inherited from DtInteractionDecoder
	DtInteractionDecoder (DtExerciseConn *exConn, DtInterClassDesc *classDesc)
	constructor More...
virtual	~DtInteractionDecoder ()
	destructor More...
DtParameterDecoder	addDecoder (RTI::ParameterHandle handle, DtParameterDecoder proc)
	Add/Remove a decoding function for the parameter specified by handle. More...
DtParameterDecoder	addDecoder (char *name, DtParameterDecoder proc)
	Add/Remove a decoding function for the parameter specified by name. More...
virtual DtParameterDecoder	decoder (RTI::ParameterHandle handle) const
	Get the parameter decoder for the specified handle. More...
virtual void	decode (DtInteractionRep *interaction, const RTI::ParameterHandleValueMap &pvMap)
	Decode the interaction. More...
virtual RTI::InteractionClassHandle	interactionClassHandle ()
	Get the interaction's class handle. More...
virtual DtInteractionDecoder *	clone () const
	Returns a new-ed clone of this object. More...
virtual DtInteractionDecoder *	clone (DtInterClassDesc *interDesc) const
	Returns a new-ed clone of this object which corresponds to the inter description interDesc. More...

Protected Member Functions
	DtDECLARE_DETONATION_PARAM_DECODER (ArticulatedPartData)
	Individual parameter decoders. More...
	DtDECLARE_DETONATION_PARAM_DECODER (DetonationLocation)
	DtDECLARE_DETONATION_PARAM_DECODER (DetonationResultCode)
	DtDECLARE_DETONATION_PARAM_DECODER (EventIdentifier)
	DtDECLARE_DETONATION_PARAM_DECODER (FiringObjectIdentifier)
	DtDECLARE_DETONATION_PARAM_DECODER (FinalVelocityVector)
	DtDECLARE_DETONATION_PARAM_DECODER (FuseType)
	DtDECLARE_DETONATION_PARAM_DECODER (MunitionObjectIdentifier)
	DtDECLARE_DETONATION_PARAM_DECODER (MunitionType)
	DtDECLARE_DETONATION_PARAM_DECODER (QuantityFired)
	DtDECLARE_DETONATION_PARAM_DECODER (RateOfFire)
	DtDECLARE_DETONATION_PARAM_DECODER (RelativeDetonationLocation)
	DtDECLARE_DETONATION_PARAM_DECODER (TargetObjectIdentifier)
	DtDECLARE_DETONATION_PARAM_DECODER (WarheadType)
	DtDECLARE_DETONATION_PARAM_DECODER (DetonationResult)
	RPR FOM <= 0.8 compatibility. More...
	DtDECLARE_DETONATION_PARAM_DECODER (EventID)
	DtDECLARE_DETONATION_PARAM_DECODER (FiringObjectID)
	DtDECLARE_DETONATION_PARAM_DECODER (MunitionObjectID)
	DtDECLARE_DETONATION_PARAM_DECODER (TargetObjectID)
	DtDECLARE_DETONATION_PARAM_DECODER (ArticulatedPartsArray)
Protected Member Functions inherited from DtInteractionDecoder
	DtInteractionDecoder (const DtInteractionDecoder &orig)
	copy constructor - not implemented. More...
DtInteractionDecoder &	operator= (const DtInteractionDecoder &orig)
	assignment operator - not implemented. More...
virtual void	decodeParameter (DtInteractionRep *inter, const RTI::ParameterHandleValuePairSet &pvList, int index)
	Process (decode) the specified parameter. More...

Static Protected Member Functions
static void	decodeArticulatedParametersArrayPost1_0 (DtDetonationInteraction *inter, const RTI::ParameterHandleValuePairSet &params, int pairSetIndex)
	Decode function for ArticulatedParts RPR drafts 1 and higher. More...
static void	convertFromRPR1_0 (DtNetArtParamRecord *netParams, DtNetArtParamRecordRPR1 *netParamsRPR1, int numRecords)
	helper function More...
static void	decodeAttParts (int numParams, DtNetArtParamRecord *netParams, DtArticulatedPartCollection *artList)
	called by the articulated parameters array decoder More...

Additional Inherited Members
Public Types inherited from DtInteractionDecoder
typedef void(*	DtParameterDecoder )(DtInteractionRep *inter, const RTI::ParameterHandleValuePairSet &pvlist, int i)
	Parameter decoder function signature. More...
Static Public Member Functions inherited from DtInteractionDecoder
static char *	decodingBuffer (int length)
	Returns a pointer to a buffer that can be used to copy data obtained from a phvps. More...
static char *	parameterData (const RTI::ParameterHandleValuePairSet &pvList, int index, RTI::ULong &length)
	Returns a pointer to a buffer containing the parameter data. More...
static char *	parameterData (const RTI::ParameterHandleValuePairSet &pvList, int index, RTI::ULong &length, unsigned int expectedDataSize, const char *paramName)
	Gets the parameter data and checks the expected size. More...
static DtNetEventId *	eventIdParameterData (const RTI::ParameterHandleValuePairSet &params, int index)
	Get the parameter data as a DtNetEventId (adds defensive null terminator) Returns a pointer to the parameter data. More...
static void	decodeGenericParameter (DtInteractionWithEncDec *inter, const RTI::ParameterHandleValuePairSet &pvlist, int i)
	Generic decoder class. More...
Static Public Attributes inherited from DtInteractionDecoder
static bool	theUseGetValuePointer
Protected Attributes inherited from DtInteractionDecoder
DtExerciseConn *	myExConn
DtInterClassDesc *	myClassDesc
RTI::InteractionClassHandle	myClassHandle
std::map< RTI::ParameterHandle, DtParameterDecoder >	myList
	myList is an array of classDesc->maxParamHandle() items. More...

Detailed Description

class DtDetonationDecoder:

Instances of DtDetonationDecoder are used to decode Detonation Interactions from the network.

Constructor & Destructor Documentation

DtDetonationDecoder::DtDetonationDecoder	(	DtExerciseConn *	exConn,
		DtInterClassDesc *	classDesc
	)

constructor

virtual DtDetonationDecoder::~DtDetonationDecoder ( )

virtual

destructor

DtDetonationDecoder::DtDetonationDecoder

(

const DtDetonationDecoder &

orig

)

copy constructor

Member Function Documentation

static void DtDetonationDecoder::convertFromRPR1_0 ( DtNetArtParamRecord *  netParams, DtNetArtParamRecordRPR1 *  netParamsRPR1, int  numRecords  )

staticprotected

helper function

static void DtDetonationDecoder::decodeArticulatedParametersArrayPost1_0 ( DtDetonationInteraction *  inter, const RTI::ParameterHandleValuePairSet &  params, int  pairSetIndex  )

staticprotected

Decode function for ArticulatedParts RPR drafts 1 and higher.

static void DtDetonationDecoder::decodeAttParts ( int  numParams, DtNetArtParamRecord *  netParams, DtArticulatedPartCollection *  artList  )

staticprotected

called by the articulated parameters array decoder

DtDetonationDecoder::DtDECLARE_DETONATION_PARAM_DECODER ( ArticulatedPartData  )

protected

Individual parameter decoders.

DtDetonationDecoder::DtDECLARE_DETONATION_PARAM_DECODER ( DetonationLocation  )

protected

DtDetonationDecoder::DtDECLARE_DETONATION_PARAM_DECODER ( DetonationResultCode  )

protected

DtDetonationDecoder::DtDECLARE_DETONATION_PARAM_DECODER ( EventIdentifier  )

protected

DtDetonationDecoder::DtDECLARE_DETONATION_PARAM_DECODER ( FiringObjectIdentifier  )

protected

DtDetonationDecoder::DtDECLARE_DETONATION_PARAM_DECODER ( FinalVelocityVector  )

protected

DtDetonationDecoder::DtDECLARE_DETONATION_PARAM_DECODER ( FuseType  )

protected

DtDetonationDecoder::DtDECLARE_DETONATION_PARAM_DECODER ( MunitionObjectIdentifier  )

protected

DtDetonationDecoder::DtDECLARE_DETONATION_PARAM_DECODER ( MunitionType  )

protected

DtDetonationDecoder::DtDECLARE_DETONATION_PARAM_DECODER ( QuantityFired  )

protected

DtDetonationDecoder::DtDECLARE_DETONATION_PARAM_DECODER ( RateOfFire  )

protected

DtDetonationDecoder::DtDECLARE_DETONATION_PARAM_DECODER ( RelativeDetonationLocation  )

protected

DtDetonationDecoder::DtDECLARE_DETONATION_PARAM_DECODER ( TargetObjectIdentifier  )

protected

DtDetonationDecoder::DtDECLARE_DETONATION_PARAM_DECODER ( WarheadType  )

protected

DtDetonationDecoder::DtDECLARE_DETONATION_PARAM_DECODER ( DetonationResult  )

protected

RPR FOM <= 0.8 compatibility.

DtDetonationDecoder::DtDECLARE_DETONATION_PARAM_DECODER ( EventID  )

protected

DtDetonationDecoder::DtDECLARE_DETONATION_PARAM_DECODER ( FiringObjectID  )

protected

DtDetonationDecoder::DtDECLARE_DETONATION_PARAM_DECODER ( MunitionObjectID  )

protected

DtDetonationDecoder::DtDECLARE_DETONATION_PARAM_DECODER ( TargetObjectID  )

protected

DtDetonationDecoder::DtDECLARE_DETONATION_PARAM_DECODER ( ArticulatedPartsArray  )

protected

DtDetonationDecoder& DtDetonationDecoder::operator=

(

const DtDetonationDecoder &

orig

)

assignment operator

---

The documentation for this class was generated from the following file:

• detonationDecoder.h
