DtInteractionWithDataDecoder Class Reference

class DtInteractionWithDataDecoder: More...

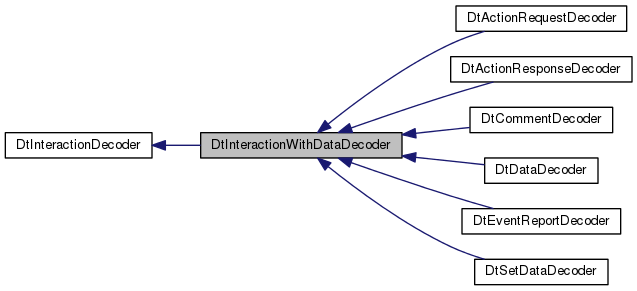

Inheritance diagram for DtInteractionWithDataDecoder:

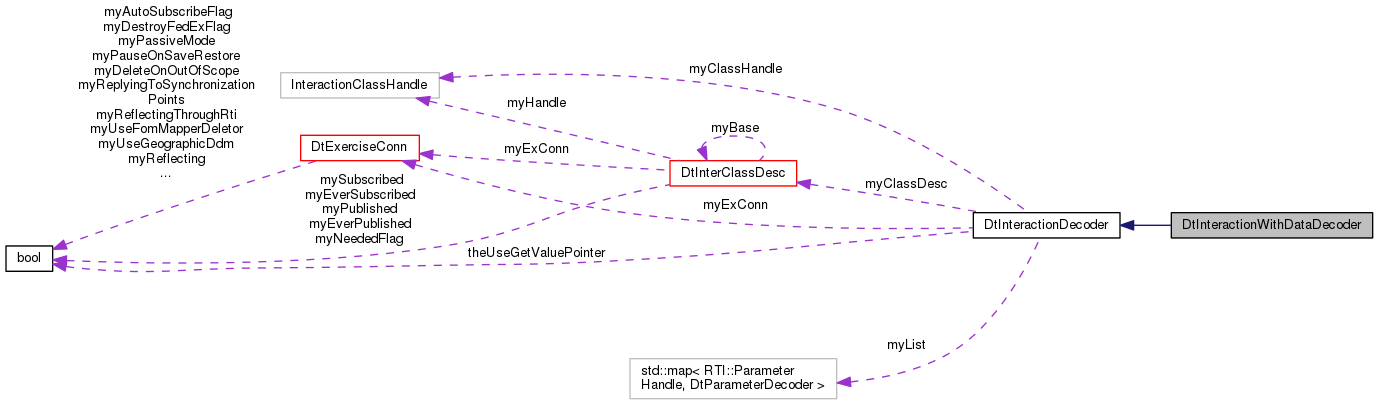

Collaboration diagram for DtInteractionWithDataDecoder:

Public Member Functions
	DtInteractionWithDataDecoder (DtExerciseConn *exConn, DtInterClassDesc *classDesc, bool containsFixedDatums=true)
	constructor More...
virtual	~DtInteractionWithDataDecoder ()
	destructor More...
	DtInteractionWithDataDecoder (const DtInteractionWithDataDecoder &orig)
	copy constructor More...
DtInteractionWithDataDecoder &	operator= (const DtInteractionWithDataDecoder &orig)
	assignment operator More...
Public Member Functions inherited from DtInteractionDecoder
	DtInteractionDecoder (DtExerciseConn *exConn, DtInterClassDesc *classDesc)
	constructor More...
virtual	~DtInteractionDecoder ()
	destructor More...
DtParameterDecoder	addDecoder (RTI::ParameterHandle handle, DtParameterDecoder proc)
	Add/Remove a decoding function for the parameter specified by handle. More...
DtParameterDecoder	addDecoder (char *name, DtParameterDecoder proc)
	Add/Remove a decoding function for the parameter specified by name. More...
virtual DtParameterDecoder	decoder (RTI::ParameterHandle handle) const
	Get the parameter decoder for the specified handle. More...
virtual void	decode (DtInteractionRep *interaction, const RTI::ParameterHandleValueMap &pvMap)
	Decode the interaction. More...
virtual RTI::InteractionClassHandle	interactionClassHandle ()
	Get the interaction's class handle. More...
virtual DtInteractionDecoder *	clone () const
	Returns a new-ed clone of this object. More...
virtual DtInteractionDecoder *	clone (DtInterClassDesc *interDesc) const
	Returns a new-ed clone of this object which corresponds to the inter description interDesc. More...

Protected Member Functions
	DtDECLARE_INTERWDATA_PARAM_DECODER (FixedDatums)
	Individual parameter decoders. More...
	DtDECLARE_INTERWDATA_PARAM_DECODER (VariableDatumSet)
Protected Member Functions inherited from DtInteractionDecoder
	DtInteractionDecoder (const DtInteractionDecoder &orig)
	copy constructor - not implemented. More...
DtInteractionDecoder &	operator= (const DtInteractionDecoder &orig)
	assignment operator - not implemented. More...
virtual void	decodeParameter (DtInteractionRep *inter, const RTI::ParameterHandleValuePairSet &pvList, int index)
	Process (decode) the specified parameter. More...

Static Protected Member Functions
static void	decodeVariableDatumSet_2_d_14 (DtInteractionWithData *inter, const RTI::ParameterHandleValuePairSet &params, int index)
static void	decodeVariableDatumSet_2_d_17 (DtInteractionWithData *inter, const RTI::ParameterHandleValuePairSet &params, int index)

Additional Inherited Members
Public Types inherited from DtInteractionDecoder
typedef void(*	DtParameterDecoder )(DtInteractionRep *inter, const RTI::ParameterHandleValuePairSet &pvlist, int i)
	Parameter decoder function signature. More...
Static Public Member Functions inherited from DtInteractionDecoder
static char *	decodingBuffer (int length)
	Returns a pointer to a buffer that can be used to copy data obtained from a phvps. More...
static char *	parameterData (const RTI::ParameterHandleValuePairSet &pvList, int index, RTI::ULong &length)
	Returns a pointer to a buffer containing the parameter data. More...
static char *	parameterData (const RTI::ParameterHandleValuePairSet &pvList, int index, RTI::ULong &length, unsigned int expectedDataSize, const char *paramName)
	Gets the parameter data and checks the expected size. More...
static DtNetEventId *	eventIdParameterData (const RTI::ParameterHandleValuePairSet &params, int index)
	Get the parameter data as a DtNetEventId (adds defensive null terminator) Returns a pointer to the parameter data. More...
static void	decodeGenericParameter (DtInteractionWithEncDec *inter, const RTI::ParameterHandleValuePairSet &pvlist, int i)
	Generic decoder class. More...
Static Public Attributes inherited from DtInteractionDecoder
static bool	theUseGetValuePointer
Protected Attributes inherited from DtInteractionDecoder
DtExerciseConn *	myExConn
DtInterClassDesc *	myClassDesc
RTI::InteractionClassHandle	myClassHandle
std::map< RTI::ParameterHandle, DtParameterDecoder >	myList
	myList is an array of classDesc->maxParamHandle() items. More...

Detailed Description

class DtInteractionWithDataDecoder:

Instances of DtInteractionWithDataDecoder are used to decode the datum of RPR FOM Interactions that use fixed and var datum records.

Constructor & Destructor Documentation

DtInteractionWithDataDecoder::DtInteractionWithDataDecoder	(	DtExerciseConn *	exConn,
		DtInterClassDesc *	classDesc,
		bool	containsFixedDatums = true
	)

constructor

virtual DtInteractionWithDataDecoder::~DtInteractionWithDataDecoder ( )

virtual

destructor

DtInteractionWithDataDecoder::DtInteractionWithDataDecoder

(

const DtInteractionWithDataDecoder &

orig

)

copy constructor

Member Function Documentation

static void DtInteractionWithDataDecoder::decodeVariableDatumSet_2_d_14 ( DtInteractionWithData *  inter, const RTI::ParameterHandleValuePairSet &  params, int  index  )

staticprotected

static void DtInteractionWithDataDecoder::decodeVariableDatumSet_2_d_17 ( DtInteractionWithData *  inter, const RTI::ParameterHandleValuePairSet &  params, int  index  )

staticprotected

DtInteractionWithDataDecoder::DtDECLARE_INTERWDATA_PARAM_DECODER ( FixedDatums  )

protected

Individual parameter decoders.

DtInteractionWithDataDecoder::DtDECLARE_INTERWDATA_PARAM_DECODER ( VariableDatumSet  )

protected

DtInteractionWithDataDecoder& DtInteractionWithDataDecoder::operator=

(

const DtInteractionWithDataDecoder &

orig

)

assignment operator

---

The documentation for this class was generated from the following file:

• interactionWithDataDecoder.h
