DtAggregatePublisher Class Reference

Instances of DtAggregatePublisher are used for local or source simulations of aggregate entities, (i.e. More...

Inheritance diagram for DtAggregatePublisher:

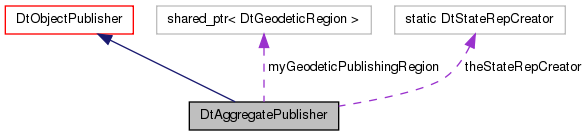

Collaboration diagram for DtAggregatePublisher:

List of all members.

Public Types
typedef DtAggregateStateRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtAggregateStateRepositories.
Public Member Functions
	DtAggregatePublisher (DtAggregateStateRepository *stateRepToUse, DtExerciseConn *conn, const char *name=0, const DtDDMRegionSet *regionSetToUse=0)
	Constructor -- stateRepToUse must have a valid entityType.
	DtAggregatePublisher (RTI::ObjectClassHandle h, DtExerciseConn *conn, const char *name=0, const DtDDMRegionSet *regionSetToUse=0)
	Constructor.
	DtAggregatePublisher (const DtEntityType &type, DtExerciseConn *conn, const char *name=0, const DtDDMRegionSet *regionSetToUse=0)
	Constructor.
	DtAggregatePublisher (const DtEntityType &type, DtExerciseConn *conn, DtDeadReckonTypes algorithm, DtForceType forceId, const char *name=0, const DtDDMRegionSet *regionSetToUse=0)
	Constructor.
	DtAggregatePublisher (DtHlaObjectWithStateRep *obj, DtExerciseConn *conn)
	Constructor that creates a publisher for an existing DtHlaObject.
virtual	~DtAggregatePublisher ()
	destructor
virtual DtAggregateStateRepository *	aggregateStateRep ()
	Returns a pointer to the AggregateStateRepository - through which you can set or inspect current state information.
virtual DtAggregateStateRepository *	asr ()
	Synonym for aggregateStateRep().
virtual void	tick ()
	Tick (update) this object.
Static Public Member Functions
static DtStateRepCreator	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs.
Protected Member Functions
void	createGeographicRegion (DtExerciseConn *conn)
	Creates the publishers region.
	DtAggregatePublisher (const DtAggregatePublisher &orig)
	copy constructor - not implemented.
DtAggregatePublisher &	operator= (const DtAggregatePublisher &orig)
	assignment operator - not implemented.
const char *	objectClassNameFromType (const DtEntityType &type)
	Non-virtual, since called from constructor.
Protected Attributes
DtBoost::shared_ptr < DtGeodeticRegion >	myGeodeticPublishingRegion
Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

---

Detailed Description

Instances of DtAggregatePublisher are used for local or source simulations of aggregate entities, (i.e.

these entities are not dependent on data being produced elsewhere on the network for their existence). These entities send data to the network.

---

Member Typedef Documentation

typedef DtAggregateStateRepository*(* DtAggregatePublisher::DtStateRepCreator)()

Function prototype for functions that create DtAggregateStateRepositories.

---

Constructor & Destructor Documentation

DtAggregatePublisher::DtAggregatePublisher	(	DtAggregateStateRepository *	stateRepToUse,
		DtExerciseConn *	conn,
		const char *	name = 0,
		const DtDDMRegionSet *	regionSetToUse = 0
	)

Constructor -- stateRepToUse must have a valid entityType.

DtAggregatePublisher::DtAggregatePublisher	(	RTI::ObjectClassHandle	h,
		DtExerciseConn *	conn,
		const char *	name = 0,
		const DtDDMRegionSet *	regionSetToUse = 0
	)

Constructor.

DtAggregatePublisher::DtAggregatePublisher	(	const DtEntityType &	type,
		DtExerciseConn *	conn,
		const char *	name = 0,
		const DtDDMRegionSet *	regionSetToUse = 0
	)

Constructor.

DtAggregatePublisher::DtAggregatePublisher	(	const DtEntityType &	type,
		DtExerciseConn *	conn,
		DtDeadReckonTypes	algorithm,
		DtForceType	forceId,
		const char *	name = 0,
		const DtDDMRegionSet *	regionSetToUse = 0
	)

Constructor.

DtAggregatePublisher::DtAggregatePublisher	(	DtHlaObjectWithStateRep *	obj,
		DtExerciseConn *	conn
	)

Constructor that creates a publisher for an existing DtHlaObject.

(DtHlaObjectWithStateRep is derived from DtHlaObject.) Typically used in conjunction with ownership management, when you want to take ownership and begin updating some attributes of an object that you have already discovered.

virtual DtAggregatePublisher::~DtAggregatePublisher

(

)

[virtual]

destructor

DtAggregatePublisher::DtAggregatePublisher

(

const DtAggregatePublisher &

orig

)

[protected]

copy constructor - not implemented.

---

Member Function Documentation

DtAggregateStateRepository * DtAggregatePublisher::aggregateStateRep

(

)

[inline, virtual]

Returns a pointer to the AggregateStateRepository - through which you can set or inspect current state information.

References DtObjectPublisher::myStateRep.

DtAggregateStateRepository * DtAggregatePublisher::asr

(

)

[inline, virtual]

Synonym for aggregateStateRep().

References DtObjectPublisher::myStateRep.

void DtAggregatePublisher::createGeographicRegion

(

DtExerciseConn *

conn

)

[protected]

Creates the publishers region.

Not virtual, since it is called from the constructor.

Exceptions:

DtException

if the region cannot be created

const char* DtAggregatePublisher::objectClassNameFromType

(

const DtEntityType &

type

)

[protected]

Non-virtual, since called from constructor.

If you don't like the default mapping between entity type and object class, just pass the object class you want to the constructor.

DtAggregatePublisher& DtAggregatePublisher::operator=

(

const DtAggregatePublisher &

orig

)

[protected]

assignment operator - not implemented.

static DtStateRepCreator DtAggregatePublisher::setStateRepCreator

(

DtStateRepCreator

creator

)

[static]

Give us a function to be used for creating SRs.

virtual void DtAggregatePublisher::tick

(

)

[virtual]

Tick (update) this object.

Reimplemented from DtObjectPublisher.

---

Member Data Documentation

DtBoost::shared_ptr<DtGeodeticRegion> DtAggregatePublisher::myGeodeticPublishingRegion [protected]

DtStateRepCreator DtAggregatePublisher::theStateRepCreator [static, protected]

---

The documentation for this class was generated from the following file:

• hAggPub.h
