DtEmitterSystemPublisher Class Reference

Instances of DtEmitterSystemPublisher are used for local or source simulations of emitter systems, (i.e. More...

Inheritance diagram for DtEmitterSystemPublisher:

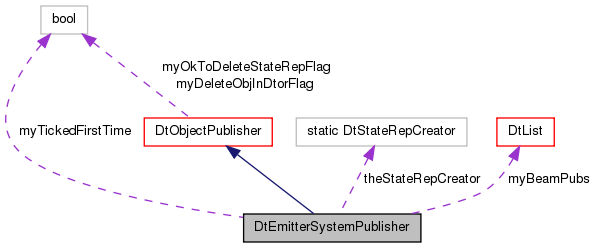

Collaboration diagram for DtEmitterSystemPublisher:

List of all members.

Public Types
typedef DtEmitterSystemRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtEmitterSystemRepositories.
Public Member Functions
	DtEmitterSystemPublisher (DtEmitterSystemRepository *stateRepToUse, DtExerciseConn *conn, const char *name=0, const DtDDMRegionSet *regionSetToUse=0)
	Constructor.
	DtEmitterSystemPublisher (RTI::ObjectClassHandle h, DtExerciseConn *conn, const char *name=0, const DtDDMRegionSet *regionSetToUse=0)
	Constructor.
	DtEmitterSystemPublisher (DtExerciseConn *conn, const char *name=0, const DtDDMRegionSet *regionSetToUse=0)
	Constructor.
	DtEmitterSystemPublisher (DtHlaObjectWithStateRep *obj, DtExerciseConn *conn)
	Constructor that creates a publisher for an existing DtHlaObject.
virtual	~DtEmitterSystemPublisher ()
	destructor
virtual DtEmitterSystemRepository *	emitterSystemRep ()
	Returns a pointer to the DtEmitterSystemRepository - through which you can set or inspect current state information.
virtual DtEmitterSystemRepository *	esr ()
	Synonym for emitterSystemRep().
virtual const char *	classToUse () const
	Returns the name of the FOM object class to use.
virtual void	tick ()
	syncBeamList and update beam objects as well as main system object.
virtual void	forceUpdate ()
	if called, at the next tick all attributes will be sent to the RTI This call differs from the base callback by also including a force update of all beam children.
virtual void	forceUpdate (const RTI::AttributeHandleSet &set)
	If the attribute set is specified, forceUpdate will call through to DtObjectPublisher::forceUpdate and the beams children will not be updated.
Static Public Member Functions
static DtStateRepCreator	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs.
Protected Member Functions
virtual void	syncBeamList ()
	Update myBeamPubs so that it has a publisher for all beamSRs in my systemSR, but no others.
virtual DtEmitterBeamPublisher *	publisherForBsr (DtEmitterBeamRepository *bsr)
	Returns the publisher responsible for publishing the indicated BSR, NULL if there is none.
virtual int	numBeams () const
	Return number of beam publishers.
Protected Attributes
DtList	myBeamPubs
	List of DtEmitterBeamPubs.
bool	myTickedFirstTime
Static Protected Attributes
static DtStateRepCreator	theStateRepCreator
Private Member Functions
	DtEmitterSystemPublisher (const DtEmitterSystemPublisher &orig)
	copy constructor -- not implemented
DtEmitterSystemPublisher &	operator= (const DtEmitterSystemPublisher &orig)
	assignment operator -- not implemented

---

Detailed Description

Instances of DtEmitterSystemPublisher are used for local or source simulations of emitter systems, (i.e.

these entities are not dependent on data being produced elsewhere on the network for their existence). These emitter systems send data to the network.

---

Member Typedef Documentation

typedef DtEmitterSystemRepository*(* DtEmitterSystemPublisher::DtStateRepCreator)()

Function prototype for functions that create DtEmitterSystemRepositories.

---

Constructor & Destructor Documentation

DtEmitterSystemPublisher::DtEmitterSystemPublisher	(	DtEmitterSystemRepository *	stateRepToUse,
		DtExerciseConn *	conn,
		const char *	name = 0,
		const DtDDMRegionSet *	regionSetToUse = 0
	)

Constructor.

DtEmitterSystemPublisher::DtEmitterSystemPublisher	(	RTI::ObjectClassHandle	h,
		DtExerciseConn *	conn,
		const char *	name = 0,
		const DtDDMRegionSet *	regionSetToUse = 0
	)

Constructor.

DtEmitterSystemPublisher::DtEmitterSystemPublisher	(	DtExerciseConn *	conn,
		const char *	name = 0,
		const DtDDMRegionSet *	regionSetToUse = 0
	)

Constructor.

DtEmitterSystemPublisher::DtEmitterSystemPublisher	(	DtHlaObjectWithStateRep *	obj,
		DtExerciseConn *	conn
	)

Constructor that creates a publisher for an existing DtHlaObject.

(DtHlaObjectWithStateRep is derived from DtHlaObject.) Typically used in conjunction with ownership management, when you want to take ownership and begin updating some attributes of an object that you have already discovered.

virtual DtEmitterSystemPublisher::~DtEmitterSystemPublisher

(

)

[virtual]

destructor

DtEmitterSystemPublisher::DtEmitterSystemPublisher

(

const DtEmitterSystemPublisher &

orig

)

[private]

copy constructor -- not implemented

---

Member Function Documentation

virtual const char* DtEmitterSystemPublisher::classToUse

(

)

const [virtual]

Returns the name of the FOM object class to use.

Default implementation is to ask the FOM Mapper.

DtEmitterSystemRepository * DtEmitterSystemPublisher::emitterSystemRep

(

)

[inline, virtual]

Returns a pointer to the DtEmitterSystemRepository - through which you can set or inspect current state information.

References DtObjectPublisher::myStateRep.

DtEmitterSystemRepository * DtEmitterSystemPublisher::esr

(

)

[inline, virtual]

Synonym for emitterSystemRep().

References DtObjectPublisher::myStateRep.

virtual void DtEmitterSystemPublisher::forceUpdate

(

)

[virtual]

if called, at the next tick all attributes will be sent to the RTI This call differs from the base callback by also including a force update of all beam children.

Reimplemented from DtObjectPublisher.

virtual void DtEmitterSystemPublisher::forceUpdate

(

const RTI::AttributeHandleSet &

set

)

[virtual]

If the attribute set is specified, forceUpdate will call through to DtObjectPublisher::forceUpdate and the beams children will not be updated.

This function is added to prevent it from being hidden

Reimplemented from DtObjectPublisher.

virtual int DtEmitterSystemPublisher::numBeams

(

)

const [protected, virtual]

Return number of beam publishers.

DtEmitterSystemPublisher& DtEmitterSystemPublisher::operator=

(

const DtEmitterSystemPublisher &

orig

)

[private]

assignment operator -- not implemented

virtual DtEmitterBeamPublisher* DtEmitterSystemPublisher::publisherForBsr

(

DtEmitterBeamRepository *

bsr

)

[protected, virtual]

Returns the publisher responsible for publishing the indicated BSR, NULL if there is none.

static DtStateRepCreator DtEmitterSystemPublisher::setStateRepCreator

(

DtStateRepCreator

creator

)

[static]

Give us a function to be used for creating SRs.

virtual void DtEmitterSystemPublisher::syncBeamList

(

)

[protected, virtual]

Update myBeamPubs so that it has a publisher for all beamSRs in my systemSR, but no others.

Called by tick() so that all beamPubs can be ticked after systemSR has been updated.

virtual void DtEmitterSystemPublisher::tick

(

)

[virtual]

syncBeamList and update beam objects as well as main system object.

Reimplemented from DtObjectPublisher.

---

Member Data Documentation

DtList DtEmitterSystemPublisher::myBeamPubs [protected]

List of DtEmitterBeamPubs.

bool DtEmitterSystemPublisher::myTickedFirstTime [protected]

DtStateRepCreator DtEmitterSystemPublisher::theStateRepCreator [static, protected]

---

The documentation for this class was generated from the following file:

• hEmittrSysPub.h
