DtReflectedEntity Class Reference

Instances of this class provide a protocol independent interface to a reflected entity in a DIS environment. More...

Inheritance diagram for DtReflectedEntity:

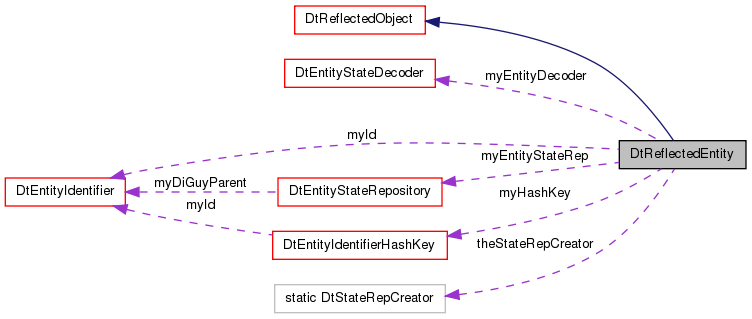

Collaboration diagram for DtReflectedEntity:

Public Types
typedef DtEntityStateRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtEntityStateRepositories.

Public Member Functions
	DtReflectedEntity (DtExerciseConn *conn, const DtEntityIdentifier &id, const DtEntityType &type)
	Constructor.
virtual	~DtReflectedEntity ()
	Destructor.
virtual DtEntityStateRepository *	entityStateRep () const
	Returns a pointer to the EntityStateRepository - through which you can inspect current state information.
virtual DtEntityStateRepository *	esr () const
	Synonym for entityStateRep().
virtual DtStateRepository *	stateRep () const
	Returns a pointer to the StateRepository - through which you can inspect current state information.
virtual DtEntityStateDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages into our ESR.
virtual const DtEntityIdentifier &	entityId () const
	Returns the entity identifier.
virtual const DtObjectId &	id () const
	Get the entity's id. (For DIS, DtObjectId is DtEntityIdentifier).
virtual const DtObjectId &	localId () const
	Get the entity's local id. For DIS - same as id().
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the entity's object's global object designator - for DIS, it's the same as its DtEntityIdentifier.
virtual void	processStateMessage (const DtStateMsg &msg)
	Process an entity state PDU. Calls processEntityState().
virtual void	processRelativeLocation (const DtRelativeLocationPdu &pdu)
	Process a relative location PDU.
virtual void	processEntityStateUpdate (const DtEntityStateUpdatePdu &pdu)
	Process an entity state update PDU.
virtual void	processSees (const DtSuppEmisEntStatePdu &pdu)
	Process an SEES PDU.
virtual void	processDiGuyPdu (const DtDIGuyCustomPdu &pdu)
	Process a DI Guy PDU.
virtual DtReflectedEntity *	next () const
	Get the next and previous elements in the reflected entity list.
virtual DtReflectedEntity *	prev () const
virtual DtReflectedEntity *	wrapNext () const
	Get the next and previous elements, wrap at the ends of the list.
virtual DtReflectedEntity *	wrapPrev () const
virtual void	addPostUpdateCallback (DtEntityCallbackFunction cb, void *userData)
	Entity state callback registration/deregistration.
virtual void	removePostUpdateCallback (DtEntityCallbackFunction cb, void *userData)
virtual const DtBaseHashKey &	hashKey () const
	Get a hash key for this object.
virtual DtString	idString () const
	Get a string identification of this object.
virtual void	processEntityState (const DtEntityStatePdu &pdu)
	Process an entity state PDU.
Public Member Functions inherited from DtReflectedObject
	DtReflectedObject (DtExerciseConn *conn)
	constructor
virtual	~DtReflectedObject ()
	destructor
virtual DtStateRepository *	sr () const
	Synonym for stateRep().
virtual DtTime	lastTimeUpdated () const
	Returns the value of wallclock time at the time an update was last received for the entity.
virtual DtTime	lastSimTimeUpdated () const
	Returns the value of sim time at the time an update was last received for the entity.
virtual DtTime	lastReceivedTimeStamp () const
	Returns the value in seconds past the hour of the timeStamp from the last received PDU.
virtual void	baseAddPostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object state callback registration/deregistration.
virtual void	baseRemovePostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual DtReflectedObject *	nextObj () const
	Get the next remote object.
virtual DtReflectedObject *	prevObj () const
	Get the previous remote object.
virtual DtReflectedObject *	wrapNextObj () const
	Get the next remote object.
virtual DtReflectedObject *	wrapPrevObj () const
	Get the previous remote object.
Public Member Functions inherited from DtListedObj
	DtListedObj ()
	Constructor.
virtual	~DtListedObj ()
	Destructor.

Static Public Member Functions
static void	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs.
static DtStateRepCreator	stateRepCreator (void)

Protected Member Functions
	DtReflectedEntity (const DtReflectedEntity &orig)
	copy constructor – not implemented
DtReflectedEntity &	operator= (const DtReflectedEntity &orig)
	assignment operator – not implemented
Protected Member Functions inherited from DtReflectedObject
	DtReflectedObject (const DtReflectedObject &orig)
	copy constructor – not implemented
DtReflectedObject &	operator= (const DtReflectedObject &orig)
	assignment operator – not implemented
virtual void	processPostUpdateCallbacks ()
	Process the post update callbacks.

Protected Attributes
DtEntityIdentifier	myId
DtEntityStateRepository *	myEntityStateRep
DtEntityStateDecoder *	myEntityDecoder
DtEntityIdentifierHashKey	myHashKey
Protected Attributes inherited from DtReflectedObject
DtExerciseConn *	myExConn
DtIntrusiveList	myStateUpdateCallbacks
DtTime	myLastTimeUpdated
DtTime	myLastSimTimeUpdated
DtTime	myLastReceivedTimeStamp
Protected Attributes inherited from DtListedObj
DtList *	myList
DtListItem *	myItem

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

Detailed Description

Instances of this class provide a protocol independent interface to a reflected entity in a DIS environment.

Member Typedef Documentation

typedef DtEntityStateRepository*(* DtReflectedEntity::DtStateRepCreator)()

Function prototype for functions that create DtEntityStateRepositories.

Constructor & Destructor Documentation

DtReflectedEntity::DtReflectedEntity	(	DtExerciseConn *	conn,
		const DtEntityIdentifier &	id,
		const DtEntityType &	type
	)

Constructor.

virtual DtReflectedEntity::~DtReflectedEntity ( )

virtual

Destructor.

DtReflectedEntity::DtReflectedEntity ( const DtReflectedEntity &  orig )

protected

copy constructor – not implemented

Member Function Documentation

virtual void DtReflectedEntity::addPostUpdateCallback ( DtEntityCallbackFunction  cb, void *  userData  )

virtual

Entity state callback registration/deregistration.

virtual DtEntityStateDecoder* DtReflectedEntity::decoder ( )

virtual

Returns a pointer to the Decoder being used to decode state messages into our ESR.

virtual const DtEntityIdentifier& DtReflectedEntity::entityId ( ) const

virtual

Returns the entity identifier.

virtual DtEntityStateRepository* DtReflectedEntity::entityStateRep ( ) const

virtual

Returns a pointer to the EntityStateRepository - through which you can inspect current state information.

virtual DtEntityStateRepository* DtReflectedEntity::esr ( ) const

virtual

Synonym for entityStateRep().

virtual const DtGlobalObjectDesignator& DtReflectedEntity::globalId ( ) const

virtual

Get the entity's object's global object designator - for DIS, it's the same as its DtEntityIdentifier.

Implements DtReflectedObject.

virtual const DtBaseHashKey& DtReflectedEntity::hashKey ( ) const

virtual

Get a hash key for this object.

Implements DtReflectedObject.

virtual const DtObjectId& DtReflectedEntity::id ( ) const

virtual

Get the entity's id. (For DIS, DtObjectId is DtEntityIdentifier).

Referenced by localId().

virtual DtString DtReflectedEntity::idString ( ) const

virtual

Get a string identification of this object.

Implements DtReflectedObject.

const DtObjectId & DtReflectedEntity::localId ( ) const

inlinevirtual

Get the entity's local id. For DIS - same as id().

References id().

virtual DtReflectedEntity* DtReflectedEntity::next ( ) const

virtual

Get the next and previous elements in the reflected entity list.

Reimplemented from DtListedObj.

DtReflectedEntity& DtReflectedEntity::operator= ( const DtReflectedEntity &  orig )

protected

assignment operator – not implemented

virtual DtReflectedEntity* DtReflectedEntity::prev ( ) const

virtual

Reimplemented from DtListedObj.

virtual void DtReflectedEntity::processDiGuyPdu ( const DtDIGuyCustomPdu &  pdu )

virtual

Process a DI Guy PDU.

virtual void DtReflectedEntity::processEntityState ( const DtEntityStatePdu &  pdu )

virtual

Process an entity state PDU.

Also calls down to base class processStateMessage().

virtual void DtReflectedEntity::processEntityStateUpdate ( const DtEntityStateUpdatePdu &  pdu )

virtual

Process an entity state update PDU.

virtual void DtReflectedEntity::processRelativeLocation ( const DtRelativeLocationPdu &  pdu )

virtual

Process a relative location PDU.

virtual void DtReflectedEntity::processSees ( const DtSuppEmisEntStatePdu &  pdu )

virtual

Process an SEES PDU.

virtual void DtReflectedEntity::processStateMessage ( const DtStateMsg &  msg )

virtual

Process an entity state PDU. Calls processEntityState().

Reimplemented from DtReflectedObject.

virtual void DtReflectedEntity::removePostUpdateCallback ( DtEntityCallbackFunction  cb, void *  userData  )

virtual

static void DtReflectedEntity::setStateRepCreator ( DtStateRepCreator  creator )

static

Give us a function to be used for creating SRs.

virtual DtStateRepository* DtReflectedEntity::stateRep ( ) const

virtual

Returns a pointer to the StateRepository - through which you can inspect current state information.

Implementation for abstract base class. Calls esr().

Implements DtReflectedObject.

static DtStateRepCreator DtReflectedEntity::stateRepCreator ( void  )

static

virtual DtReflectedEntity* DtReflectedEntity::wrapNext ( ) const

virtual

Get the next and previous elements, wrap at the ends of the list.

Reimplemented from DtListedObj.

virtual DtReflectedEntity* DtReflectedEntity::wrapPrev ( ) const

virtual

Reimplemented from DtListedObj.

Member Data Documentation

DtEntityStateDecoder* DtReflectedEntity::myEntityDecoder

protected

DtEntityStateRepository* DtReflectedEntity::myEntityStateRep

protected

DtEntityIdentifierHashKey DtReflectedEntity::myHashKey

protected

DtEntityIdentifier DtReflectedEntity::myId

protected

DtStateRepCreator DtReflectedEntity::theStateRepCreator

staticprotected

---

The documentation for this class was generated from the following file:

• dReflectedEnt.h
