The DtSimComponent class is the base class for the entire simulation model component hierarchy.

If you currently modify member variables in a descriptor class, it is suggested to instead make those member variables part of the component that uses them and modify them there. If you must modify the entries in the component descriptor, instead of using the supplied descriptor pointer, you will need to clone the descriptor entry and work with that clone. You will also need to delete this clone in your component destructor to avoid a memory leak.

Related examples

Other uses in examples

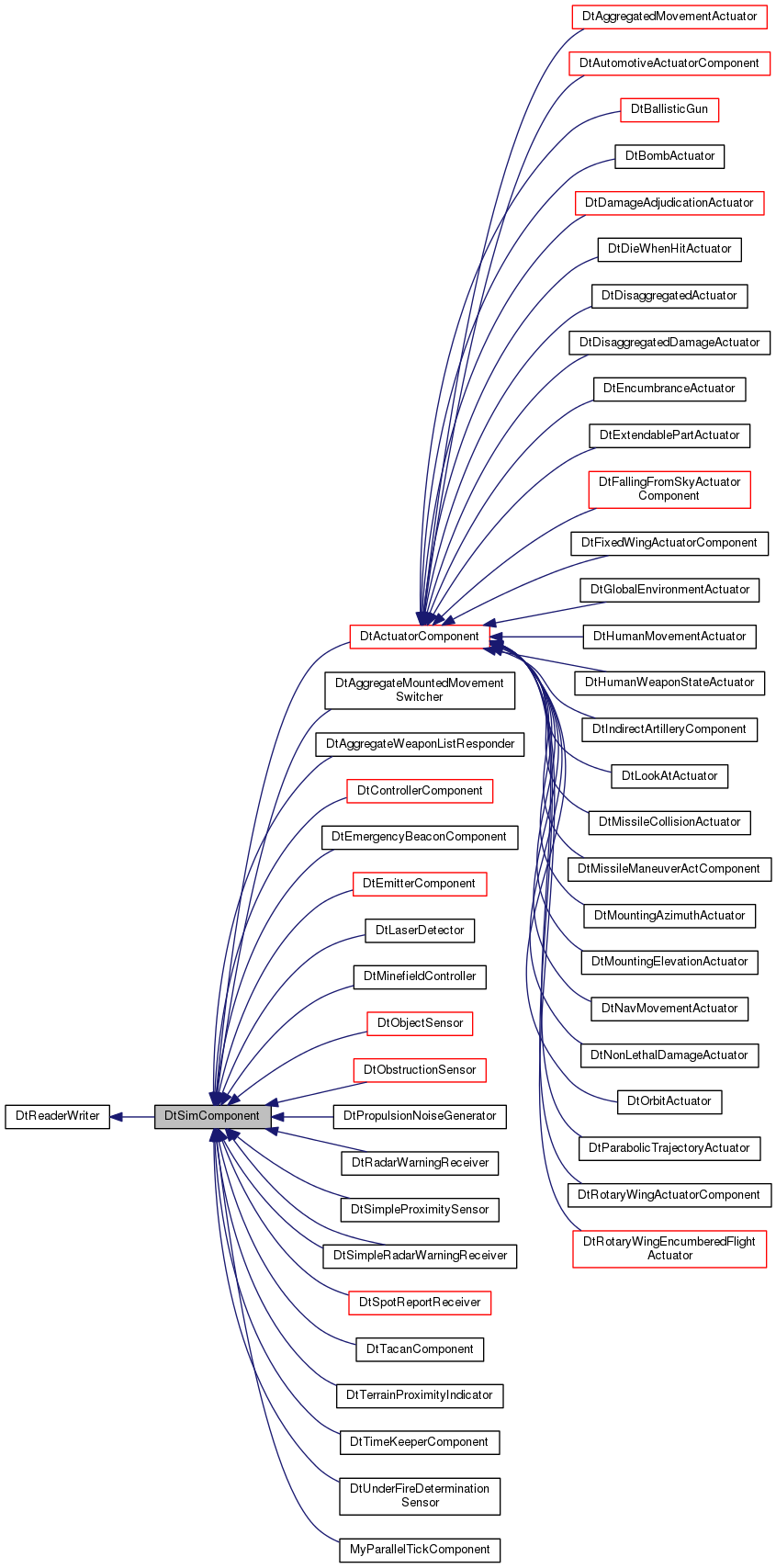

Inheritance diagram for DtSimComponent:

[legend]

Public Member Functions
	DtSimComponent (const DtString &name, DtLocalObject owner, DtSimulationServices simServices, DtComponentDescriptor desc=0, DtReaderWriterRegistry parentRegistry=0)

virtual	~DtSimComponent ()

virtual void	setParentSystem (DtComponentSystem *system)

DtComponentSystem *	parentSystem () const

virtual bool	init ()

virtual bool	postAddComponentsInit ()

virtual void	registerAttributeFunctions ()

virtual void	preFirstTickInit ()

virtual void	tick ()

virtual void	postTick ()

virtual void	timedTick ()

virtual void	setMinTickPeriod (double minTickPeriod)

virtual double	minTickPeriod () const

virtual void	setMinTickPeriodVariance (double minTickPeriodVariance)

virtual double	minTickPeriodVariance () const

virtual void	setNextTickTime (double nextTickTime)

virtual double	nextTickTime () const

virtual double	calculateNextTickTime () const

virtual double	calculateFirstTickTime () const

virtual const char *	type () const =0

virtual void	setEntity (DtLocalObject *entity)

virtual DtSimComponent *	nextComponent ()

virtual DtSimComponent *	prevComponent ()

virtual void	setListItem (DtListItem *item)

virtual DtListItem *	listItem ()

virtual void	putData (std::string &fp, int indentLevel=0)

virtual DtlObjPtr	getData (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings)

virtual void	addInputPort (DtInputPort *port)

virtual void	removeInputPort (DtInputPort *port)

virtual DtInputPort *	lookupInputPort (const DtString &portName)

virtual DtList	inputPortList () const

virtual void	addOutputPort (DtOutputPort *port)

virtual void	removeOutputPort (DtOutputPort *port)

virtual DtOutputPort *	lookupOutputPort (const DtString &portName)

virtual DtList	outputPortList () const

virtual void	addInputPortGroup (DtInputPortGroup *group)

virtual void	removeInputPortGroup (DtInputPortGroup *group)

virtual DtInputPortGroup *	lookupInputPortGroup (const DtString &groupName)

virtual DtList	inputPortGroupList () const

virtual void	addOutputPortGroup (DtOutputPortGroup *group)

virtual void	removeOutputPortGroup (DtOutputPortGroup *group)

virtual DtOutputPortGroup *	lookupOutputPortGroup (const DtString &groupName)

virtual DtList	outputPortGroupList () const

virtual int	priority () const

virtual void	setPriority (int priority)

double	dT () const

virtual void	setDT (double deltaT)

virtual void	setComponentDescriptor (DtComponentDescriptor *componentDescriptor)

virtual const DtComponentDescriptor *	componentDescriptor () const

virtual bool	tickWhileDestroyed () const

DtVrfProcessStateRepositoryManager *	psrManager ()

virtual const DtSymbolString &	componentFullName () const

DtPhysicalWorld *	physicalWorld ()

const DtPhysicalWorld *	physicalWorld () const

const DtAttachedTerrain *	terrainAttachedTo () const

DtLocalObject *	entity ()

const DtLocalObject *	entity () const

DtSimulationServices *	simulationServices ()

const DtSimulationServices *	simulationServices () const

const Coordinate_System *	coordinateSystem () const

virtual bool	taskVisualizationsActive () const

virtual bool	taskVisualizationsEnabled () const

virtual void	onRestore ()

makVrf::DtTaskVisualizationMap &	taskVisualizations ()


virtual void	enable ()

virtual void	disable ()

virtual bool	isEnabled ()

virtual void	setIsEnabled (bool yesNo)

Object Console Streams
These convenience functions make use of the DtLocalObject object console streams. Please see the documentation there for more details.
virtual DtOutputStream &	objectConsoleDebug (const DtString &channel="") const

virtual DtOutputStream &	objectConsoleVerbose (const DtString &channel="") const

virtual DtOutputStream &	objectConsoleInfo (const DtString &channel="") const

virtual DtOutputStream &	objectConsoleWarn (const DtString &channel="") const

virtual DtOutputStream &	objectConsoleError (const DtString &channel="") const

virtual int	notifyLevel () const


virtual DtSimResourceManager &	resourceManager ()

virtual const DtSimResourceManager &	resourceManager () const

Public Member Functions inherited from DtReaderWriter
	DtReaderWriter ()

	DtReaderWriter (const DtString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)

	DtReaderWriter (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)

	DtReaderWriter (const DtString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)

	DtReaderWriter (const DtSymbolString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)

	DtReaderWriter (const DtReaderWriter &, DtReaderWriterRegistry *parentRegistry=NULL)

const DtReaderWriter &	operator= (const DtReaderWriter &orig)

bool	operator== (const DtReaderWriter &) const

bool	operator!= (const DtReaderWriter &rhs)

virtual	~DtReaderWriter ()

virtual void	putSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())

virtual void	postPutSelf ()

virtual void	prePutSelf ()

virtual void	getSelf (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())

virtual void	postGetSelf ()

virtual void	preGetSelf ()

virtual void	writeSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())

virtual DtSymbolString	name () const

virtual void	addAlias (const DtSymbolString &alias)

virtual void	addAlias (const DtString &alias)

virtual bool	hasAlias (const DtSymbolString &alias)

virtual const aliasContainer &	aliases () const

virtual void	setReadonly (bool flag)

bool	isReadonly () const

virtual void	reset ()

virtual int	alignment () const

virtual bool	variableIsBound () const

virtual void	unbindVariable ()

virtual void	setName (const DtString &)

virtual const char *	readerWriterType () const

virtual const char *	xmlType () const

virtual DtString	prettyPrint () const

std::string	debugText () const

virtual void	bindVariables (DtVariableBindingsList variableBindings)

virtual std::list < DtVariableNameType >	unboundVariables () const

bool	invalid () const

virtual bool	hasChild (const DtReaderWriter *p) const

virtual bool	hasVariableReference () const

virtual void	bindLocalVariables (const DtVariableBindingsList &variableBindings)

virtual void	recordUpdateTime () const

virtual bool	wasUpdatedSince (DtTime t) const

virtual bool	changedSinceLastChecked ()

virtual bool	peekChangedSinceLastChecked () const

virtual void	setValueSpecified (bool specified, bool recurse=false)

virtual bool	valueSpecified () const

virtual bool	isVariableReference () const

virtual void	setIsVariableReference (bool value)

virtual void	clearAllVariableReferenceFlags ()

virtual DtSymbolString	variableName () const

virtual void	setVariableName (const DtSymbolString variableName)

virtual const DtReaderWriter *	defaultRWValue () const

virtual DtReaderWriter *	defaultRWValue ()

virtual void	setDefaultRWValue (DtReaderWriter *)

virtual bool	checkAndSetDefaultRWValue (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())

const DtReaderWriterRegistry &	registry () const

DtReaderWriterRegistry &	registry ()

virtual DtPropertyInterface *	property ()

virtual const DtPropertyInterface *	property () const

virtual DtString	toXml () const

virtual DtRwVariableBindings *	generateVariableBindings () const

virtual bool	toXml (const DtFilename &) const

virtual bool	fromXml (const DtString &)

virtual bool	fromXmlFile (const DtFilename &)

virtual void	putSelf (DtEnvironmentSP, DtEnvValueSP parent) const

virtual void	putData (DtEnvironmentSP, DtEnvValueSP value) const

virtual void	putVariableReference (DtEnvironmentSP, DtEnvValueSP value) const

virtual void	getSelf (const DtEnvironmentSP, const DtEnvValueSP root, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())

virtual void	getData (const DtEnvironmentSP, const DtEnvValueSP, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())

virtual void	unrecognizedItem (const DtEnvironmentSP env, const DtEnvValueSP root, const SearchPaths &searchPaths, const DtVariableBindingsList &varBindings)

virtual void	getVariableReference (DtEnvironmentSP, DtEnvValueSP value)

Static Public Member Functions
static DtSimComponentFactory *	factory ()

static void	setFactory (DtSimComponentFactory *factory)

static DtSimComponent *	createComponent (const DtString &name, const DtString &type, DtLocalObject owner, DtSimulationServices simManager, DtComponentSystem parentSystem, DtComponentDescriptor desc=0, DtReaderWriterRegistry *parentRegistry=0)

static void	addSimComponentCreatorFcn (const DtString &type, DtSimComponentCreatorFcn fcn)

Static Public Member Functions inherited from DtReaderWriter
static void	putIndent (std::string &fp, int indentLevel)

static const DtVariableBindingsList &	nullVariableReference ()

static void	setPostGetSelfCallback (DtGetSelfCallbackFcn fcn, void *usrData)

static void	setPrePutSelfCallback (DtPutSelfCallbackFcn fcn, void *usrData)

static void	setPutIndent (bool)

static bool	putIndent ()

static const char *	theXmlType ()

static const DtFilename &	appPath ()

static void	setFactoryCreatorFunction (DtReaderWriterFactoryCreatorFcn fcn)

static void	createReaderWriterFactory ()

static void	cleanupFactory ()

static DtReaderWriterFactory *	factory ()

static void	setOutputStream (DtOutputStream *stream)

static DtOutputStream &	outputStream ()

static DtReaderWriter *	createFromXmlFile (const DtFilename &, bool createAsProperty=false)

static DtReaderWriter *	createFromXml (const DtString &, bool createAsProperty=false)

static DtReaderWriter *	createFromEnvironment (DtEnvironmentSP, bool createAsProperty=false)

static DtString	getAttribute (DtEnvironmentSP env, const DtString &name, DtEnvValueSP root)

Protected Types
typedef std::map< DtString, DtInputPort * >	DtInputPortMap

typedef std::map< DtString, DtOutputPort * >	DtOutputPortMap

typedef std::map< DtString, DtInputPortGroup * >	DtInputPortGroupMap

typedef std::map< DtString, DtOutputPortGroup * >	DtOutputPortGroupMap

Protected Member Functions
virtual double	computeCurrentTime ()

bool	testInvariant () const

virtual bool	createPortGroups ()

virtual bool	createPorts ()

DtVrfProcessStateRepository *	createComponentPsr (const DtString &defaultPsrType, const DtString &defaultPsrName, bool useDescriptorParams=true)

virtual void	updateTaskVisualizations ()

virtual void	destroyTaskVisualizations ()

virtual void	destroyTaskVisualization (const DtString &name)

virtual makVrf::DtPointTaskVisualizationPtr	pointTaskVisualization (const DtString &name)

virtual makVrf::DtLineTaskVisualizationPtr	lineTaskVisualization (const DtString &name)

virtual makVrf::DtAreaTaskVisualizationPtr	areaTaskVisualization (const DtString &name)

virtual makVrf::DtTextTaskVisualizationPtr	textTaskVisualization (const DtString &name)

double	calculateNextTaskVisTickTime () const

DtVrfObjectStateRepository *	localStateRepository ()

const DtVrfObjectStateRepository *	localStateRepository () const


void	addSimObjectPredicateCallback (DtSimObjectReference, DtVrfObjectPredicateCallbackFunction function, const DtVrfObjectPredicate &predicate, DtTime evaluationPeriod=0, void *userData=0)

void	removeSimObjectPredicateCallback (const DtSimObject , DtVrfObjectPredicateCallbackFunction function, const DtVrfObjectPredicate &predicate, DtTime evaluationPeriod=0, void userData=0)

void	invokeSimObjectPredicateCallbacks ()

virtual void	clearPredicateCallbacks ()

Protected Member Functions inherited from DtReaderWriter
virtual void	bindToRwAsVariable (const DtReaderWriter *rw)

Protected Attributes
DtLocalObject *	myEntity

DtComponentSystem *	mySystem

DtListItem *	myListItem

DtInputPortMap	myInputPortList

DtOutputPortMap	myOutputPortList

DtInputPortGroupMap	myInputPortGroupList

DtOutputPortGroupMap	myOutputPortGroupList

int	myPriority

double	myMinTickPeriod

double	myMinTickPeriodVariance

double	myNextTickTime

double	myLastTickSimTime

double	myDT

bool	myIsEnabled

bool	myFirstTick

const DtComponentDescriptor *	myComponentDescriptor

std::list < DtVrfProcessStateRepository * >	myComponentPsrs

bool	myTickEveryFrame

makVrf::DtTaskVisualizationMap	myTaskVisualizations

double	myNextTaskVisTickTime

DtSymbolString	myFullComponentName

DtSimulationServices *	mySimServices

DtPredicateCallbackManager	myPredicateCallbackManager

Protected Attributes inherited from DtReaderWriter
const DtSymbolString	myName

DtReaderWriterRegistry	myRegistry

DtReaderWriterRegistry *	myParentRegistry

bool	myValueSpecified

bool	myReadOnlyFlag

bool	myIsVariableReference

DtSymbolString	myVariableName

bool	myVariableIsBound

DtReaderWriter *	myDefaultValue

aliasContainer	myAliases

bool	myInvalid

bool	myChangedFlag

Static Protected Attributes
static DtSimComponentFactory *	myFactory

Static Protected Attributes inherited from DtReaderWriter
static DtString	theUnspecifiedValue

static DtGetSelfCallbackInfo	thePostGetSelfCallback

static DtPutSelfCallbackInfo	thePrePutSelfCallback

static const DtVariableBindingsList	theEmptyVariableBindingsList

static bool	theCreatorFcnSet

static DtReaderWriterFactory *	theFactory

static DtReaderWriterFactoryCreatorFcn	theFactoryCreatorFcn

static bool	thePutIndent

static DtOutputStream *	theOutputStream

Private Member Functions
	DtSimComponent ()

	DtSimComponent (const DtSimComponent &orig)

DtSimComponent &	operator= (const DtSimComponent &orig)

VRF4API_METHOD const DtSimulationServices *	simManager () const

static VRF4API_METHOD DtSimComponent *	MarkThreadSafe (DtSimComponent *comp)

Additional Inherited Members
Public Types inherited from DtReaderWriter
typedef std::vector < DtSymbolString >	aliasContainer

typedef std::vector < DtSymbolString >::iterator	aliasIter

typedef std::vector < DtSymbolString > ::const_iterator	aliasConstIter

typedef std::vector< DtFilename >	SearchPaths

typedef std::pair < DtSymbolString, DtString >	DtVariableNameType

typedef DtReaderWriterFactory (	DtReaderWriterFactoryCreatorFcn )()

Member Typedef Documentation

typedef std::map<DtString, DtInputPort*> DtSimComponent::DtInputPortMap

protected

typedef std::map<DtString, DtOutputPort*> DtSimComponent::DtOutputPortMap

protected

typedef std::map<DtString, DtInputPortGroup*> DtSimComponent::DtInputPortGroupMap

protected

typedef std::map<DtString, DtOutputPortGroup*> DtSimComponent::DtOutputPortGroupMap

protected

Constructor & Destructor Documentation

DtSimComponent::DtSimComponent	(	const DtString &	name,
		DtLocalObject *	owner,
		DtSimulationServices *	simServices,
		DtComponentDescriptor *	desc = `0`,
		DtReaderWriterRegistry *	parentRegistry = `0`
	)

Parameters

name	Reader writer name of this component.
owner	The DtLocalObject that owns this component
simManager	The simulation manager (provides access to terrain, message interface, simulation clock).
desc	The component descriptor used to initialize this component.
parentRegistry	Pointer to the parent reader writer registry (the containing object that reads/writes this object).

virtual DtSimComponent::~DtSimComponent ( )

virtual

destructor

DtSimComponent::DtSimComponent ( )

private

default constructor; should not be called. Here because the compiler will generate an unprotected one otherwise.

DtSimComponent::DtSimComponent ( const DtSimComponent & orig )

private

copy constructor, not implemented

Member Function Documentation

virtual void DtSimComponent::setParentSystem ( DtComponentSystem * system )

virtual

Sets the parent system of this component. This is called before init() when the component is created. Non-virtual since this will probably be moved to the constructor some day, and we don't want to have users overriding this method.

DtComponentSystem* DtSimComponent::parentSystem ( ) const

virtual bool DtSimComponent::init ( )

virtual

Calls createPorts and createPortGroups Initializes myLastTickSimTime.

Reimplemented in DtObjectSensor, DtTDLContactMessageGeneratorController, DtSurfaceEntityPilotController, DtTargetSelectionController, DtDiGuyController, DtDisaggregatedFormationController, DtDisaggregatedMoveAlongController, DtDamageAdjudicationActuator, DtRoadMovementController, DtSimpleProximitySensor, DtSurfaceEntityStopController, DtAggregateOrganizationController, DtDisaggregatedLeadFollowInFormationController, DtSpawnController, DtFixedWingEmbarkationController, DtRadarObjectSensor, DtLauncherController, DtRailPathController, DtNavalMineSetController, DtWeaponController, DtEmitterComponent, DtMunitionLaunchController, DtJammerController, DtTacticalGraphicSetController, DtActuatorComponent, DtSpotReportGeneratorController, DtWeaponActuator, DtSurfaceEntityFollowEntityController, DtDynamicTerrainController, DtBallisticGunController, DtDisaggregatedMoveIntoFormationController, DtEngagementReportGeneratorController, DtWarheadDetonationActuator, DtConvoyTaskController, DtDynamicFeaturesController, DtLookAtActuator, DtMissileDistractionController, DtSignatureObjectSensor, DtHumanMovementActuator, DtSurfaceEntityActuator, DtScriptReactiveTaskController, DtAirRefuelSupplierController, DtFixedWingActuatorComponent, DtLasingController, DtSensorGimbalController, DtFixedWingMoveAlongController, DtDetonationController, DtDisaggregatedMoveToLocationController, DtDisaggregatedOccupancyDirectorController, DtDisaggregatedPatrolAlongController, DtFixedWingPilotController, DtLaunchExpendableResourceController, DtObstructionSensor, DtSurfaceEntityMoveAlongController, DtSurfaceEntitySimpleActuator, DtFixedWingTakeoffController, DtLaserGuidedLauncherController, DtMinefieldController, DtReleaseBombController, DtRotorWashController, DtAggregateWeaponListResponder, DtAutomotiveActuatorComponent, DtAggregatedMovementActuator, DtContactFusionController, DtCruiseMissileLaunchController, DtGroundMovementChooserController, DtIndirectFireController, DtRotaryWingActuatorComponent, DtSwingingPartActuator, DtAggregateMountedMovementSwitcher, DtBallisticGun, DtExtendablePartActuator, DtLaunchSmokeController, DtNonLethalDamageActuator, DtParabolicTrajectoryActuator, DtSubSurfaceDepthController, DtSuppressionActuator, DtAggregatedMoveToController, DtHumanFollowController, DtHumanMoveAlongController, DtHumanMoveToController, DtHumanPatrolController, DtLasingMissileTrackController, DtResupplyController, DtTurretSlewController, DtOccupancyDirectorController, DtPassiveSonarSensor, DtBaseParachuteActuator, DtBombController, DtEmbarkationController, DtLauncherActuator, DtLimitExistenceController, DtMultipleHitDamageActuator, DtResupplySupplierController, DtSpotReportReceiver, DtAirVehicleWeaponHoldController, DtHumanCollisionAvoidanceController, DtMissileManeuverActComponent, DtResupplyReceiverController, DtTranslatablePartActuator, DtAggregatedPatrolController, DtFallingFromSkyActuatorComponent, DtFixedWingLandingController, DtHumanDamageActuator, DtIndirectFireWeaponController, DtRotaryWingPilotController, DtSearchRescueSensor, DtGroundCollisionAvoidanceController, DtGroundMoveToDestinationControllerComponent, DtMovementBasedTerrainPreloadController, DtNavigationPreferenceController, DtSensorGimbalActuator, DtTDLMessageGeneratorController, DtUnderFireDeterminationSensor, DtControllerComponent, DtActiveSonarSensor, DtEmergencyBeaconComponent, DtIntegratedLaserGuidedLauncherController, DtSimpleRotaryWingPilot, DtTacanComponent, DtTopLevelOrganizationController, DtTurretScanController, DtDisaggregatedPatrolBetweenController, DtHumanFleeController, DtRotaryWingWaitController, DtShapeBasedTerrainPreloadController, DtSubSurfaceEntitySimpleActuator, DtWaitController, DtArticulatedPartController, DtBombActuator, DtCombatRangeController, DtEnvironmentalActivationController, DtFixedWingFlightCommandController, DtHumanPostureController, DtIndirectArtilleryComponent, DtMissileCollisionActuator, DtMoveAlongWithActionsController, DtParachuteController, DtBaseWeaponController, DtCruiseMissileDefaultController, DtFixedWingDefaultController, DtFixedWingGunneryController, DtGroundAutoControllerComponent, DtHumanCrosswalkController, DtRotaryWingEncumberedFlightActuator, DtRotaryWingLandingController, DtAggregateAntiAirController, DtAggregateIndirectFireController, DtAimWeaponController, DtDefaultLandingGearController, DtGroundVehicleTrailingEffectController, DtHumanUseDoorController, DtMissileControllerComponent, DtNavTagTraversalController, DtRotaryWingFlightCommandController, DtRotaryWingMoveAlongControllerComponent, DtHumanLauncherAcquireController, DtNbcSensor, DtSendRadioMessageController, DtSetController, DtAggregateMountedMovementRelayController, DtAggregateMountedSetRelayController, DtDisaggregatedSetController, DtDisaggregatedSetManeuverController, DtEngineeringObjectSensor, DtTagVolumeDimensionsController, DtAggregatedMoveAlongController, DtAirportLightingController, DtBreachDetector, DtEncumbranceActuator, DtIffControllerComponent, DtRotaryWingTaskController, DtTerrainProximityIndicator, DtUpdateRepositoryActuator, DtAggregateReleaseBombController, DtHumanEyepointController, DtHumanTurnToController, DtRotaryWingJoyFlightController, DtRotaryWingLandingGearController, DtTimeKeeperComponent, DtMissileSetController, DtRemoteSensorSpotReportReceiver, DtAggregateFollowController, DtEmbeddedEntitiesController, DtGroundMoveAlongControllerComponent, DtHumanAcquireController, DtLocalEntitySetController, DtScriptedMovementController, DtMissileTargetController, DtDiGuyGestureController, DtFrictionlessGravityCollisionsActuator, DtHumanStopMovingController, DtRadarWarningReceiver, DtRangeRingController, DtMultiTaskControllerComponent, DtTemperatureMonitorActuator, DtFixedWingHoldController, DtHumanFaceTargetController, DtIndividualLifeFormDamageAdjudicationActuator, DtLookAtPointController, DtRadarJammer, vrfAddSetEncumbranceExample::DtManualRotaryWingEncumberedFlightActuator, DtAggregateCombatAdjustmentController, DtAggregateLoadoutController, DtAirborneAggregatedMovementActuator, DtStatePropertyInitializationController, DtAimAtPointController, DtEngineeringObjectSetController, DtHoldController, DtSyncMatrixController, DtSystemSwitcherComponent, DtCreateEngineeringObjectController, DtScriptMultiTaskController, DtSpawnObjectWarheadActuator, DtAffectEngineeringObjectController, DtDestroyEngineeringObjectController, DtBreachObstacleController, DtNavMovementActuator, DtDieWhenHitActuator, DtFascamController, DtOrbitActuator, DtCompatibilityController, and MyActuatorComponent.

virtual bool DtSimComponent::postAddComponentsInit ( )

inlinevirtual

Called after all components have been created, initialized and added to the component manager. Override this function if you need to do any further initialization after all other components have been created.

Reimplemented in DtFixedWingPilotController, DtSimpleRotaryWingPilot, DtSurfaceEntityPilotController, DtSurfaceEntityFollowEntityController, DtGroundAutoControllerComponent, DtMissileControllerComponent, DtTargetSelectionController, DtRotaryWingTaskController, DtObjectSensor, DtHumanAcquireController, DtSubSurfaceDepthController, DtBombController, DtFixedWingDefaultController, DtWeaponActuator, DtTurretAcquireController, DtSurfaceEntityActuator, DtGroundMovementChooserController, DtAggregateMountedMovementSwitcher, DtSurfaceEntitySimpleActuator, DtAggregateWeaponListResponder, DtIndirectFireController, DtLaunchExpendableResourceController, DtSensorGimbalController, DtTurretActuatorComponent, DtIndirectFireActuator, DtFixedWingTakeoffController, DtSwingingPartActuator, DtBallisticGunController, DtExtendablePartActuator, DtTrailerActuator, DtTranslatablePartActuator, DtFixedWingLandingController, DtControllerComponent, DtDetonationController, DtNavigationPreferenceController, DtResupplyController, DtBaseWeaponController, DtFixedWingGunneryController, DtAggregateMountedMovementRelayController, DtResupplySupplierController, DtAggregatedSetController, DtAimWeaponController, DtBaseMountingController, DtResupplyReceiverController, DtMountingAzimuthActuator, DtMountingElevationActuator, DtEventTriggerController, DtAggregateLoadoutController, and DtMoppEnableController.

virtual void DtSimComponent::registerAttributeFunctions ( )

inlinevirtual

Called to register functions that provide system attribute values. Called by init(). Empty in this class. Overridden in different components to add attribute provider functions.

Reimplemented in DtIndirectFireActuator, DtLaserGuidedLauncherController, DtLauncherController, DtMunitionLaunchController, DtIndirectFireWeaponController, DtIffControllerComponent, and DtFixedWingPilotController.

virtual void DtSimComponent::enable ( )

virtual

Is this component enabled or not. If enabled, component's tick function will be called, otherwise it will not. Default is true (enabled).

Reimplemented in DtEmbarkationController, DtIndirectFireWeaponController, DtWeaponController, DtTaskControllerComponent, DtObjectSensor, DtDisaggregatedFormationController, DtIffControllerComponent, DtBallisticGunController, DtJammerController, DtSpotReportReceiver, DtWaitController, DtProvideIndirectFireController, DtAggregatedSetController, DtSystemSwitcherComponent, DtHoldController, and DtSetController.

virtual void DtSimComponent::disable ( )

virtual

Is this component enabled or not. If enabled, component's tick function will be called, otherwise it will not. Default is true (enabled).

Reimplemented in DtEmbarkationController, DtIndirectFireWeaponController, DtWeaponController, DtSingleTaskControllerComponent, DtTaskControllerComponent, DtObjectSensor, DtDisaggregatedFormationController, DtIffControllerComponent, DtBallisticGunController, DtLasingController, DtJammerController, DtSpotReportReceiver, DtWaitController, DtProvideIndirectFireController, DtSystemSwitcherComponent, DtHoldController, DtAggregateMountedMovementRelayController, and DtSetController.

virtual bool DtSimComponent::isEnabled ( )

virtual

Is this component enabled or not. If enabled, component's tick function will be called, otherwise it will not. Default is true (enabled).

virtual void DtSimComponent::setIsEnabled ( bool yesNo )

virtual

Is this component enabled or not. If enabled, component's tick function will be called, otherwise it will not. Default is true (enabled).

Reimplemented in DtObjectSensor, DtIffControllerComponent, and DtAggregatedSetController.

virtual void DtSimComponent::preFirstTickInit ( )

virtual

This function can be overridden to initialize a component before it is ticked for the first time. The implementation for this function is empty. It is called by timedTick if myFirstTick is true.

Reimplemented in DtRotaryWingActuatorComponent, DtSurfaceEntityFollowEntityController, DtHumanMoveToController, DtBaseWeaponController, DtLauncherController, DtTargetSelectionController, DtFixedWingTakeoffController, DtHumanFleeController, DtActiveSonarSensor, DtObjectSensor, DtSpawnController, DtAggregatedMoveToController, DtMoveAlongWithActionsController, DtDiGuyController, DtConvoyTaskController, DtDisaggregatedLeadFollowInFormationController, DtRoadMovementController, DtRadarObjectSensor, DtSimpleProximitySensor, DtOccupancyDirectorController, DtRailPathController, DtEmbarkationController, DtScriptedMovementController, DtTurretAcquireController, DtWeaponController, DtFixedWingLandingController, DtDynamicTerrainController, DtResupplyReceiverController, DtEmitterComponent, DtEncumbranceActuator, DtLaserGuidedLauncherController, DtHumanMovementActuator, DtAggregateMountedMovementSwitcher, DtLasingController, DtReleaseBombController, DtBallisticGun, DtBallisticGunController, DtAirRefuelSupplierController, DtDetonationController, DtLaunchExpendableResourceController, DtAggregateWeaponListResponder, DtFixedWingMoveAlongController, DtIndirectFireActuator, DtNavMovementActuator, DtHumanMoveAlongController, DtMissileTargetController, DtSurfaceEntityMoveAlongController, DtScriptReactiveTaskController, DtDynamicTerrainVehicleTrackController, DtMinefieldController, DtMultipleHitDamageActuator, DtObstructionSensor, DtRotaryWingLandingGearController, DtTrailerActuator, DtIndirectFireWeaponController, DtEnvironmentalActivationController, DtSearchRescueSensor, DtNavigationPreferenceController, DtAggregateMountedMovementRelayController, DtProvideIndirectFireController, DtSensorGimbalActuator, DtEmergencyBeaconComponent, DtTacanComponent, DtAggregatedSetController, DtAirportLightingController, DtScenarioEventController, DtAggregatedMoveAlongController, DtCruiseMissileDefaultController, DtShapeBasedTerrainPreloadController, DtFrictionlessGravityActuator, DtGroundMoveAlongControllerComponent, DtAggregateAntiAirController, DtAggregateIndirectFireController, DtIffControllerComponent, DtTagVolumeDimensionsController, DtAggregateReleaseBombController, DtTerrainProximityIndicator, DtEmbeddedEntitiesController, DtAirborneAggregatedMovementActuator, DtPropulsionNoiseGenerator, DtRadarWarningReceiver, DtRangeRingController, DtSyncMatrixController, DtFrictionlessGravityCollisionsActuator, DtRadarJammer, DtStatePropertyInitializationController, DtAggregateCombatAdjustmentController, DtNbcWeaponController, DtRunwaySetController, and DtScriptMultiTaskController.

virtual void DtSimComponent::tick ( )

virtual

This gives the thread of control to the component. The component is ticked once each simulation from by the component list it's on. This base class tick has no functionality.

virtual void DtSimComponent::postTick ( )

virtual

This function is called immediately after tick() is called. Implementation in this class just ticks task visualizations if taskVisualizationsActive() returns true.

Reimplemented in DtMultiTaskControllerComponent, and DtSingleTaskControllerComponent.

virtual void DtSimComponent::timedTick ( )

virtual

This version of tick checks to see if the time to tick has arrived. It checks to see if myNextTickTime <= currentTime, where current time is either exerciseClock()->approximateElapsedRealTime() or exerciseClock()->simTime() depending on the tick-period-uses-real-time parameter. If true, it calls tick(), then calls postTick(), and then recalculates the next time to call timedTick() (myNextTickTime) by calling calculateNextTickTime().

Reimplemented in DtSpotReportGeneratorController, and DtActiveSonarSensor.

virtual void DtSimComponent::setMinTickPeriod ( double minTickPeriod )

virtual

specifies a minimum tick period (which can also be thought of as

/ maximum tick rate). This is specified in seconds.

virtual double DtSimComponent::minTickPeriod ( ) const

virtual

access the minimum tick period

virtual void DtSimComponent::setMinTickPeriodVariance ( double minTickPeriodVariance )

virtual

set the variance in the minimum tick time

virtual double DtSimComponent::minTickPeriodVariance ( ) const

virtual

access the variance in the minimum tick period

virtual void DtSimComponent::setNextTickTime ( double nextTickTime )

virtual

The next tick time is normally calculated internally. setNextTickTime can be used to force a tick (set nextTickTime to exerciseClock()-> approximateElapsedRealTime())

virtual double DtSimComponent::nextTickTime ( ) const

virtual

access the next tick time

virtual double DtSimComponent::calculateNextTickTime ( ) const

virtual

The next tick time is equal to mySimManager->exerciseClock()-> approximateElapsedRealTime() + myMinTickPeriod + a random # between -myMinTickPeriodVariance/2. and +myMinTickPeriodVariance/2. If the exercise clock is paused, the variance is always set to zero to insure that the extra calls to DtFRand() don't prevent repeatability.

virtual double DtSimComponent::calculateFirstTickTime ( ) const

virtual

Returns the first time value that the component should tick at. This is a randomized interval from the current time up to the tick period of the component. Returns either real time or sim time, depending on the value of the tickPeriodUsesRealTime flag in the descriptor.

virtual const char* DtSimComponent::type ( ) const

pure virtual

Returns a string identifies the class type of component. Type values are defined in compTypes.h. DtSimComponent creation functions are registered with the DtSimComponentFactory using the type values as the key. Warning: this function should always return the same pointer and it should be valid forever. This means the data should be static.

virtual void DtSimComponent::setEntity ( DtLocalObject * entity )

virtual

The entity's state repository is the place that actuator components make updates and other components look to see our current state. This provides a basic communication mechanism between components. Having the entity changeable makes it possible to migrate a component from one entity to another... A local copy of the entity's state repository is also made by this call for ease of use.

Reimplemented in DtLaserDetector, DtSimpleRadarWarningReceiver, and DtSimpleRadarWarningReceiver.

virtual DtSimComponent* DtSimComponent::nextComponent ( )

virtual

List management functions.

virtual DtSimComponent* DtSimComponent::prevComponent ( )

virtual

virtual void DtSimComponent::setListItem ( DtListItem * item )

virtual

Used by DtComponentList.

virtual DtListItem* DtSimComponent::listItem ( )

virtual

virtual void DtSimComponent::putData	(	std::string &	fp,
		int	indentLevel = `0`
	)

virtual

putData writes our type, which is provided by the virtual type accessor of the deriving class.

Reimplemented from DtReaderWriter.

virtual DtlObjPtr DtSimComponent::getData	(	DtlObjPtr	args,
		const DtReaderWriter::SearchPaths &	searchPaths,
		const DtVariableBindingsList &	variableBindings
	)

virtual

getData is just used to get us past the type in the data stream, since it's not actual stored.

Reimplemented from DtReaderWriter.

virtual void DtSimComponent::addInputPort ( DtInputPort * port )

virtual

Adds this input port to the components input port list so that other components can look it up and attach to it.

virtual void DtSimComponent::removeInputPort ( DtInputPort * port )

virtual

virtual DtInputPort* DtSimComponent::lookupInputPort ( const DtString & portName )

virtual

Returns a pointer to the input port registered on this component with the specified name. portName can specify a group and port in the form "groupname:portname" which will cause this function to look for the port inside the specified group.

virtual DtList DtSimComponent::inputPortList ( ) const

virtual

Returns the list of DtInputPorts registered on this component.

virtual void DtSimComponent::addOutputPort ( DtOutputPort * port )

virtual

Adds this output port to the components output port list so that other components can look it up and attach to it.

virtual void DtSimComponent::removeOutputPort ( DtOutputPort * port )

virtual

virtual DtOutputPort* DtSimComponent::lookupOutputPort ( const DtString & portName )

virtual

Returns a pointer to the output port registered on this component with the specified name. portName can specify a group and port in the form "groupname:portname" which will cause this function to look for the port inside the specified group.

virtual DtList DtSimComponent::outputPortList ( ) const

virtual

Returns the list of DtOutputPorts registered on this component.

virtual void DtSimComponent::addInputPortGroup ( DtInputPortGroup * group )

virtual

Adds this input port to the components input port list so that other components can look it up and attach to it.

virtual void DtSimComponent::removeInputPortGroup ( DtInputPortGroup * group )

virtual

virtual DtInputPortGroup* DtSimComponent::lookupInputPortGroup ( const DtString & groupName )

virtual

Returns a pointer the input port group registered on this component with the specified name.

virtual DtList DtSimComponent::inputPortGroupList ( ) const

virtual

Returns the list of DtInputPortGroups registered on this component.

virtual void DtSimComponent::addOutputPortGroup ( DtOutputPortGroup * group )

virtual

Adds this output port group to the components output port group list so that other components can look it up and attach to it.

virtual void DtSimComponent::removeOutputPortGroup ( DtOutputPortGroup * group )

virtual

virtual DtOutputPortGroup* DtSimComponent::lookupOutputPortGroup ( const DtString & groupName )

virtual

Returns a pointer the output port group registered on this component with the specified name.

virtual DtList DtSimComponent::outputPortGroupList ( ) const

virtual

Returns the list of DtOutputPortGroups registered on this component.

virtual int DtSimComponent::priority ( ) const

virtual

Return the current connection priority for this component. This value determines which component will take precedence when multiple connections attempts are active on the same input port. Lower numbers will take precedence. By default, component priorities are based on the order they were listed in the OPD entry, starting with 0.

virtual void DtSimComponent::setPriority ( int priority )

virtual

Sets a new connection priority for this component, and changes all current outgoing connections from this component to the new value. By default, component priorities are based on the order they were listed in the OPD entry, starting with 0. It is only necessary to use this method if components are being added or removed after object-creation time.

double DtSimComponent::dT ( ) const

inline

This is the delta-t for this component, which may or may not be the same as the exerciseClock dT. Note that dT() is not virtual, as it is inlined.

Returns: time in seconds

References myDT.

virtual void DtSimComponent::setDT ( double deltaT )

virtual

Note that while dT is calculated internally, this makes it possible to 'lie' to the component about dT if necessary.

Parameters

Input
deltaT	time in seconds

virtual void DtSimComponent::setComponentDescriptor ( DtComponentDescriptor * componentDescriptor )

virtual

The component descriptor specified in the order of battle file or parameter file that was used to create this component. It may be derived from and hold component-specific parameter information.

Reimplemented in DtWarheadDetonationActuator, DtMunitionLaunchController, DtFixedWingFlyIntoController, DtLaserGuidedLauncherController, DtCruiseMissileLaunchController, DtVrfObjectDataMessenger, DtGroundMoveToDestinationControllerComponent, and DtBallisticGunJoy.

virtual const DtComponentDescriptor* DtSimComponent::componentDescriptor ( ) const

virtual

virtual bool DtSimComponent::tickWhileDestroyed ( ) const

virtual

If the component returns true here, it will be ticked regardless of the destroyed state of the host entity. Otherwise, tick will only be called when the entity is alive.

Returns: false.

Reimplemented in DtObjectSensor, DtScriptedMovementController, DtDiGuyController, DtLocalEntitySetController, DtRoadMovementController, DtParachuteController, DtOrganizationController, DtActuatorComponent, DtUnderFireDeterminationSensor, DtEmitterComponent, DtJammerController, DtSpotReportReceiver, DtFixedWingLandingController, DtAffectEngineeringObjectController, DtTacticalGraphicSetController, DtEmergencyBeaconComponent, DtTacanComponent, and DtScriptMultiTaskController.

virtual DtOutputStream& DtSimComponent::objectConsoleDebug ( const DtString & channel = "" ) const

virtual

virtual DtOutputStream& DtSimComponent::objectConsoleVerbose ( const DtString & channel = "" ) const

virtual

virtual DtOutputStream& DtSimComponent::objectConsoleInfo ( const DtString & channel = "" ) const

virtual

virtual DtOutputStream& DtSimComponent::objectConsoleWarn ( const DtString & channel = "" ) const

virtual

virtual DtOutputStream& DtSimComponent::objectConsoleError ( const DtString & channel = "" ) const

virtual

virtual int DtSimComponent::notifyLevel ( ) const

virtual

DtVrfProcessStateRepositoryManager* DtSimComponent::psrManager ( )

Returns: The PSR manager that should be used by this component. This will be the PSR manager that is owned by the component's parent system. Non-virtual so that it can be used by the destructor.

virtual DtSimResourceManager& DtSimComponent::resourceManager ( )

virtual

Returns: A pointer to the resource manager of the system that this component is part of.

virtual const DtSimResourceManager& DtSimComponent::resourceManager ( ) const

virtual

Returns: A pointer to the resource manager of the system that this component is part of.

virtual const DtSymbolString& DtSimComponent::componentFullName ( ) const

virtual

Returns: A string that uniquely names this component on the entity. The name will be composed of the systems containing this component, and the reader-writer name of this component.

static DtSimComponentFactory* DtSimComponent::factory ( )

static

A DtSimComponentFactory is allocated by the DtSimCreator, and this pointer is set. The DtSimCreator deletes this pointer when it is deleted. This is done this way because we don't allow static initialization.

static void DtSimComponent::setFactory ( DtSimComponentFactory * factory )

static

static DtSimComponent* DtSimComponent::createComponent	(	const DtString &	name,
		const DtString &	type,
		DtLocalObject *	owner,
		DtSimulationServices *	simManager,
		DtComponentSystem *	parentSystem,
		DtComponentDescriptor *	desc = `0`,
		DtReaderWriterRegistry *	parentRegistry = `0`
	)

static

Creates a DtSimComponent using the factory, then initializes it via the MTL stream.

static void DtSimComponent::addSimComponentCreatorFcn	(	const DtString &	type,
		DtSimComponentCreatorFcn	fcn
	)

static

Adds a DtSimComponent creation function to the DtSimComponentFactory, using the given type as the key. The type string is one of the types defined in compTypes.h.

Parameters

type	Type identifying particular derived type of DtSimComponent
fcn	Creation function that instantiates a new DtSimComponent.

DtPhysicalWorld* DtSimComponent::physicalWorld ( )

Gets the physical world that this component's entity exists in.

const DtPhysicalWorld* DtSimComponent::physicalWorld ( ) const

const DtAttachedTerrain* DtSimComponent::terrainAttachedTo ( ) const

Gets the terrain that this component's entity is attached to, if any.

DtLocalObject* DtSimComponent::entity ( )

inline

Gets the entity.

const DtLocalObject* DtSimComponent::entity ( ) const

inline

DtSimulationServices* DtSimComponent::simulationServices ( )

Returns pointer to the DtSimulationServices.

const DtSimulationServices* DtSimComponent::simulationServices ( ) const

const Coordinate_System* DtSimComponent::coordinateSystem ( ) const

Gets the coordinate system, as it should always exist if the physical world is in a valid state!

Note: If this function is called while the physical world is in an invalid state, the results are undefined.

virtual bool DtSimComponent::taskVisualizationsActive ( ) const

virtual

Returns true if task visualizations are currently active for this component. Default behavior is to return false. Must be overridden in subclasses to enable task visualizations.

Reimplemented in DtRadarObjectSensor, DtTaskControllerComponent, DtIndirectFireActuator, DtParachuteController, DtRadarJammer, DtHumanUseDoorController, DtDynamicTerrainVehicleTrackController, DtSimpleRotaryWingPilot, DtMinefieldController, and DtNavMovementActuator.

virtual bool DtSimComponent::taskVisualizationsEnabled ( ) const

virtual

Returns true if task visualizations are enabled for this component. Task visualizations are usually enabled or disabled by configuration of the SMS. This differs from whether task visualizations are active, as task visualization activation changes at run time based on specific conditions of the entity and component (e.g. is the component currently tasked).

virtual void DtSimComponent::onRestore ( )

virtual

Called whenever a component is restored. Default is no-op.

Reimplemented in DtControllerComponent.

makVrf::DtTaskVisualizationMap& DtSimComponent::taskVisualizations ( )

inline

virtual double DtSimComponent::computeCurrentTime ( )

protectedvirtual

Compute current time and myDT.

bool DtSimComponent::testInvariant ( ) const

protected

Returns: A boolean indicating whether or not the class invariant remains valid or not. Should always be true at the beginning of every public member function, and also at the end of all non-const public member functions.

virtual bool DtSimComponent::createPortGroups ( )

protectedvirtual

Called by init. Derived classes should override this method to create all their input/output port groups.

Reimplemented in DtFixedWingPilotController, DtAutomotiveActuatorComponent, DtHumanMovementActuator, DtBallisticGun, DtFixedWingActuatorComponent, DtDiGuyController, DtSurfaceEntityPilotController, DtObjectSensor, DtHumanCollisionAvoidanceController, DtSurfaceEntityFollowEntityController, DtGroundMoveToDestinationControllerComponent, DtGroundAutoControllerComponent, DtHumanFollowController, DtGroundCollisionAvoidanceController, DtObstructionSensor, DtBaseMountingController, DtSurfaceEntityActuator, DtAggregatedMoveToController, DtBaseWeaponController, DtHumanMoveToController, DtSensorGimbalController, DtAggregatedMovementActuator, DtBallisticGunController, DtLasingController, DtWeaponActuator, DtMissileControllerComponent, DtRotaryWingPilotController, DtScriptedMovementController, DtSignatureObjectSensor, DtSurfaceEntitySimpleActuator, DtTurretAcquireController, DtHumanAcquireController, DtAggregatedMoveAlongController, DtRotaryWingActuatorComponent, DtRotaryWingMoveAlongControllerComponent, DtSensorGimbalActuator, DtRotaryWingTaskController, DtMountingElevationActuator, DtMountingAzimuthActuator, DtMissileManeuverActComponent, DtBaseParachuteActuator, DtFallingFromSkyActuatorComponent, DtHumanUseDoorController, DtAirVehicleWeaponHoldController, DtLookAtActuator, DtAimWeaponController, DtHumanFleeController, DtHumanEyepointController, DtTerrainProximityIndicator, DtParachuteController, DtHumanTurnToController, DtDefaultLandingGearController, DtLookAtPointController, DtAimAtPointController, DtDisaggregatedActuator, DtHumanCrosswalkController, DtHumanStopMovingController, DtHumanFaceTargetController, DtUpdateRepositoryActuator, DtAggregateFollowController, and DtHumanJoystickMovementController.

virtual bool DtSimComponent::createPorts ( )

protectedvirtual

Called by init. Derived classes should override this method to create all their input/output ports and port groups.

Reimplemented in DtFixedWingPilotController, DtAutomotiveActuatorComponent, DtHumanMovementActuator, DtSurfaceEntityMoveAlongController, DtFixedWingMoveAlongController, DtBallisticGun, DtFixedWingActuatorComponent, DtDiGuyController, DtSurfaceEntityPilotController, DtObjectSensor, DtSurfaceEntityFollowEntityController, DtHumanCollisionAvoidanceController, DtGroundMoveToDestinationControllerComponent, DtWeaponController, DtHumanFollowController, DtGroundAutoControllerComponent, DtGroundCollisionAvoidanceController, DtIndirectFireActuator, DtBaseMountingController, DtObstructionSensor, DtTargetSelectionController, DtSurfaceEntityActuator, DtAggregatedMoveToController, DtGroundMoveAlongControllerComponent, DtBaseWeaponController, DtHumanMoveAlongController, DtHumanMoveToController, DtSensorGimbalController, DtLauncherController, DtIndirectFireWeaponController, DtAggregatedMovementActuator, DtBallisticGunController, DtLasingController, DtGroundFollowEntityController, DtWeaponActuator, DtDetonationController, DtMissileControllerComponent, DtRotaryWingPilotController, DtSignatureObjectSensor, DtSurfaceEntitySimpleActuator, DtScriptedMovementController, DtSpotReportGeneratorController, DtSwingingPartActuator, DtExtendablePartActuator, DtTurretAcquireController, DtHumanAcquireController, DtFixedWingLandingController, DtFixedWingGunneryController, DtAggregatedMoveAlongController, DtContactFusionController, DtRotaryWingActuatorComponent, DtTurretSlewController, DtRotaryWingMoveAlongControllerComponent, DtTurretActuatorComponent, DtLaserGuidedLauncherController, DtWarheadDetonationActuator, DtSensorGimbalActuator, DtRotaryWingTaskController, DtLauncherActuator, DtMountingElevationActuator, DtSubSurfaceDepthController, DtMountingAzimuthActuator, DtSpotReportReceiver, DtMissileManeuverActComponent, DtSimpleProximitySensor, DtBombController, DtHumanObstructionSensor, DtMoveAlongWithActionsController, DtHumanUseDoorController, DtAirVehicleWeaponHoldController, DtBaseParachuteActuator, DtHumanPostureController, DtLookAtActuator, DtAimWeaponController, DtHumanFleeController, DtBallisticGunJoyController, DtEmbarkationController, DtHumanEyepointController, DtIntegratedLaserGuidedLauncherController, DtSubSurfaceEntitySimpleActuator, DtBombActuator, DtHumanTurnToController, DtParachuteController, DtRotaryWingEncumberedFlightActuator, DtDefaultLandingGearController, DtHumanWeaponStateActuator, DtEncumbranceActuator, DtHumanCrosswalkController, DtTurretAimController, DtLaserDetector, DtTerrainProximityIndicator, DtLookAtPointController, DtEventTriggerController, DtHumanFaceTargetController, DtHumanGunActuator, DtAimAtPointController, DtSimpleRadarWarningReceiver, DtSimpleRadarWarningReceiver, DtSimpleRotaryWingPilot, DtSimpleRadarWarningResponse, DtSimpleRadarWarningResponse, DtBallisticGunJoy, DtHumanJoystickMovementController, and DtAggregateFollowController.

DtVrfProcessStateRepository* DtSimComponent::createComponentPsr	(	const DtString &	defaultPsrType,
		const DtString &	defaultPsrName,
		bool	useDescriptorParams = `true`
	)

protected

Creates a PSR for this component and registers it with the PSR manager. This is typeically called from init() by a derived class if the derived class has a PSR it wishes to use. If the PSR manager already has a PSR of the desired name, that will be returned.

Note: PSRs created with this method will be automatically unregistered and deleted when the component is destroyed.

Parameters

useDescriptorParams If true, the PSR Type and Name will be taken from the component descriptor, if available. Otherwise, the default will be used, regardless of descriptor values.

virtual void DtSimComponent::updateTaskVisualizations ( )

inlineprotectedvirtual

Called to update task visualizations after every tick. Implemented by subclasses.

Reimplemented in DtFixedWingPilotController, DtFixedWingMoveAlongController, DtHumanFollowController, DtRoadMovementController, DtFixedWingMoveToController, DtHumanMoveToController, DtIndirectFireActuator, DtGroundMoveToDestinationControllerComponent, DtFixedWingFollowEntityController, DtGroundMoveAlongControllerComponent, DtMoveAlongWithActionsController, DtGroundFollowInFormationControllerComponent, DtHumanFleeController, DtRotaryWingMoveToControllerComponent, DtScriptedMovementController, DtSurfaceEntityMoveToLocationController, DtRotaryWingTaskController, DtNavTagTraversalController, DtConvoyTaskController, DtDynamicTerrainController, DtParachuteController, DtFixedWingDefaultController, DtHumanCrosswalkController, DtHumanUseDoorController, DtDynamicTerrainVehicleTrackController, DtGroundLeadFormationControllerComponent, DtMinefieldController, and DtSimpleRotaryWingPilot.

virtual void DtSimComponent::destroyTaskVisualizations ( )

protectedvirtual

Destroys all task visualizations for this component.

virtual void DtSimComponent::destroyTaskVisualization ( const DtString & name )

protectedvirtual

Destroys an existing task visualization.

virtual makVrf::DtPointTaskVisualizationPtr DtSimComponent::pointTaskVisualization ( const DtString & name )

protectedvirtual

Finds an existing or creates a new point task visualization with the given name.

virtual makVrf::DtLineTaskVisualizationPtr DtSimComponent::lineTaskVisualization ( const DtString & name )

protectedvirtual

Finds an existing or creates a new line task visualization with the given name.

virtual makVrf::DtAreaTaskVisualizationPtr DtSimComponent::areaTaskVisualization ( const DtString & name )

protectedvirtual

Finds an existing or creates a new area task visualization with the given name.

virtual makVrf::DtTextTaskVisualizationPtr DtSimComponent::textTaskVisualization ( const DtString & name )

protectedvirtual

Finds an existing or creates a new text task visualization with the given name.

double DtSimComponent::calculateNextTaskVisTickTime ( ) const

protected

Determines the next time the task visualizations should be ticked.

DtVrfObjectStateRepository* DtSimComponent::localStateRepository ( )

protected

Gets the local state repository.

const DtVrfObjectStateRepository* DtSimComponent::localStateRepository ( ) const

protected

You would want to use this call if you could be either a const or non-const local state repository, and you wanted to be sure you only had const access.

void DtSimComponent::addSimObjectPredicateCallback	(	DtSimObjectReference	,
		DtVrfObjectPredicateCallbackFunction	function,
		const DtVrfObjectPredicate &	predicate,
		DtTime	evaluationPeriod = `0`,
		void *	userData = `0`
	)

protected

Predicate callbacks are added and invoked every simulation tick to see if the predicate evaluates to true. If does the callback added is invoked. These callbacks will be invoked at the beginning of each tick.

Add/remove a callback function to be invoked when the DtSimObject predicate object associated with it returns true(). These predicates will be applied to the given sim object

void DtSimComponent::removeSimObjectPredicateCallback	(	const DtSimObject *	,
		DtVrfObjectPredicateCallbackFunction	function,
		const DtVrfObjectPredicate &	predicate,
		DtTime	evaluationPeriod = `0`,
		void *	userData = `0`
	)

protected

Predicate callbacks are added and invoked every simulation tick to see if the predicate evaluates to true. If does the callback added is invoked. These callbacks will be invoked at the beginning of each tick.

Add/remove a callback function to be invoked when the DtSimObject predicate object associated with it returns true(). These predicates will be applied to the given sim object

void DtSimComponent::invokeSimObjectPredicateCallbacks ( )

protected

Called each tick. Iterates through myPredicateCallbackList, calling the predicate object's isTrue() function. If it time to test the predicate (isTimeToTest()) and the predicate's isTrue() function returns true, it invokes the associated callback function.

virtual void DtSimComponent::clearPredicateCallbacks ( )

protectedvirtual

Clear out object predicate callback list. Should only be called upon queuing object for removal and deletion.

DtSimComponent& DtSimComponent::operator= ( const DtSimComponent & orig )

private

assignment operator, not implemented

VRF4API_METHOD const DtSimulationServices* DtSimComponent::simManager ( ) const

inline

This is the deprecated API that can be used as a reference to migrate 4.X code to 5.X. Please refer to the simObject.inl file for a reference as to how you can do this.

Use simulationServices() in place of simManager().

static VRF4API_METHOD DtSimComponent* DtSimComponent::MarkThreadSafe ( DtSimComponent * comp )

inlinestatic

This is the deprecated API that can be used as a reference to migrate 4.X code to 5.X. Please refer to the simObject.inl file for a reference as to how you can do this.

Use simulationServices() in place of simManager().

Member Data Documentation

DtLocalObject* DtSimComponent::myEntity

protected

DtComponentSystem* DtSimComponent::mySystem

protected

Pointer to the DtComponentSystem that this component belongs.

DtListItem* DtSimComponent::myListItem

protected

DtInputPortMap DtSimComponent::myInputPortList

protected

DtOutputPortMap DtSimComponent::myOutputPortList

protected

DtInputPortGroupMap DtSimComponent::myInputPortGroupList

protected

DtOutputPortGroupMap DtSimComponent::myOutputPortGroupList

protected

DtSimComponentFactory* DtSimComponent::myFactory

staticprotected

int DtSimComponent::myPriority

protected

double DtSimComponent::myMinTickPeriod

protected

double DtSimComponent::myMinTickPeriodVariance

protected

double DtSimComponent::myNextTickTime

protected

double DtSimComponent::myLastTickSimTime

protected

double DtSimComponent::myDT

protected

Referenced by dT().

bool DtSimComponent::myIsEnabled

protected

Indicates whether this component should be enabled for ticking or not.

bool DtSimComponent::myFirstTick

protected

Initialized to true in the constructor, set to false by the first call to postTick.

const DtComponentDescriptor* DtSimComponent::myComponentDescriptor

protected

std::list<DtVrfProcessStateRepository*> DtSimComponent::myComponentPsrs

protected

List of PSRs made using createComponentPsr() that will be deleted by this component when it is destroyed.

bool DtSimComponent::myTickEveryFrame

protected

Flag indicating that tickPeriod is set to 0, and the component will tick every frame.

makVrf::DtTaskVisualizationMap DtSimComponent::myTaskVisualizations

protected

The visualization objects to be drawn for this component.

double DtSimComponent::myNextTaskVisTickTime

protected

The next tick time for updating the task visualizations.

DtSymbolString DtSimComponent::myFullComponentName

mutableprotected

DtSimulationServices* DtSimComponent::mySimServices

protected

DtPredicateCallbackManager DtSimComponent::myPredicateCallbackManager

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrfobjcore/simComponent.h

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Additional Inherited Members

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
